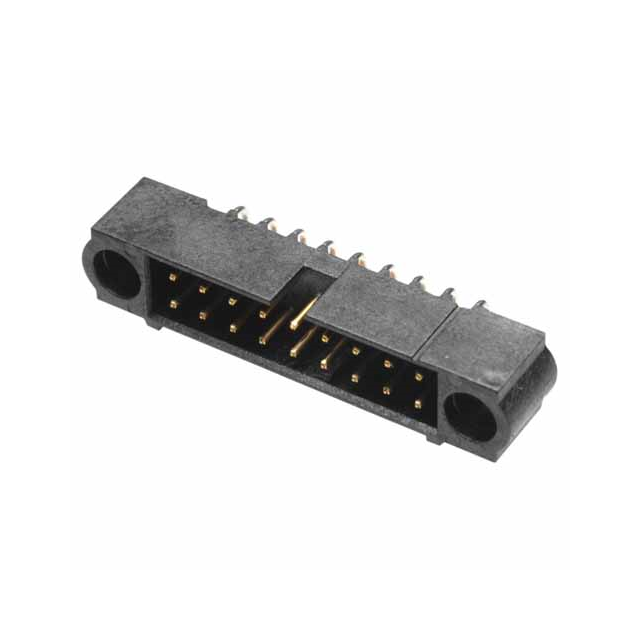

M80-551 Series

Catalog

DATAMATE J-TEK DIL MALE HORIZONT

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Material Flammability Rating	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Type	Voltage Rating	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Mounting Type	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Insulation Color	Connector Type	Insulation Height [z]	Insulation Height [z]	Fastening Type	Features	Shrouding	Insulation Material	Contact Finish - Post	Current Rating (Amps)	Contact Finish - Mating	Style	Contact Shape	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Insulation Height	Insulation Height
Harwin Inc. M80-5511642	12 µin	0.3 µm	Phosphor Bronze	0.079 "	2 mm	29.5 µin	0.75 µm	UL94 V-0	2 mm	0.079 in	16	Male Pin	800 VAC	Solder	-55 C	125 °C	All	Right Angle Through Hole	2	4.5 mm	0.177 in	Black	Header	0.238 "	6.05 mm	Push-Pull	Keying Slot Mating Flange	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Tin	2.2 A	Gold	Board to Board Cable	Circular
Harwin Inc. M80-5511242			Phosphor Bronze	0.079 "	2 mm	29.5 µin	0.75 µm	UL94 V-0	2 mm	0.079 in	12	Male Pin	120 VDC	Solder	-55 C	125 °C	All	Right Angle Through Hole	2	4.4 mm	0.173 in	Black	Header			Push-Pull	Keying Slot Mating Flange	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Tin	2.2 A	Gold	Board to Board Cable	Circular	118.1 µin	3 µm	5.55 mm	0.218 in
Harwin Inc. M80-5511042			Phosphor Bronze	0.079 "	2 mm	29.5 µin	0.75 µm	UL94 V-0	2 mm	0.079 in	10	Male Pin	120 VDC	Solder	-55 C	125 °C	All	Right Angle Through Hole	2	4.4 mm	0.173 in	Black	Header			Push-Pull	Keying Slot Mating Flange	Shrouded - 4 Wall	Polyphenylene Sulfide (PPS) Glass Filled	Tin	2.2 A	Gold	Board to Board Cable	Circular	118.1 µin	3 µm	5.55 mm	0.218 in
