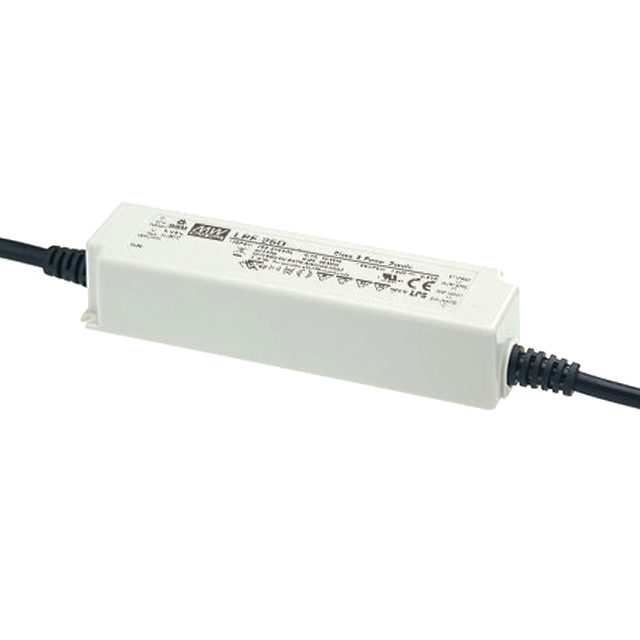

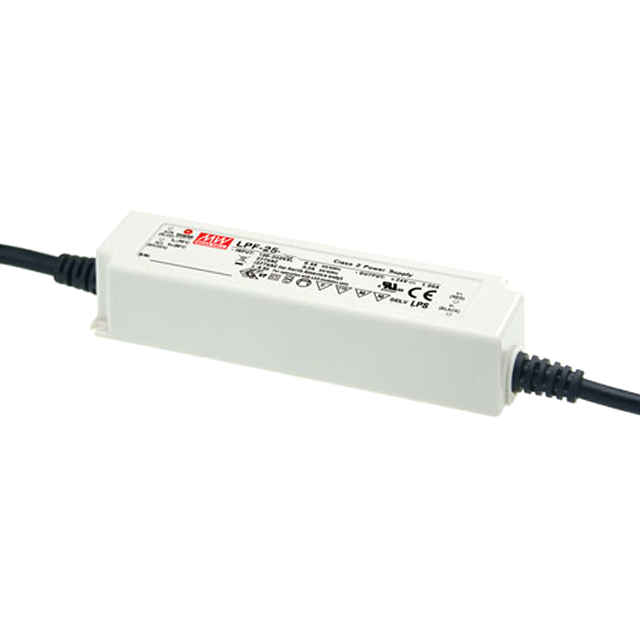

LPF-25 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
LED DVR CC/CV AC/DC 6.6-12V 2.1A
| Part | Mounting Type | Features | Voltage - Input (Min) [Min] | Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Power (Watts) | Ratings | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Approval Agency | Voltage - Output [Max] | Voltage - Output [Min] | Voltage - Isolation | Termination Style | Topology | Number of Outputs | Efficiency | Dimming |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Chassis Mount | OCP OTP OVP SCP | 90 VAC | Constant Current Voltage | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | 25 W | IP67 | 2.1 A | 305 VAC | -35 °C | 70 °C | CB CCC CE cURus ENEC PSE | 12 V | 6.6 V | 3750 VDC | Wire Leads | AC DC Converter | 1 | 84 % | |
 MEAN WELL USA Inc. | Chassis Mount | OCP OTP OVP SCP | 90 VAC | Constant Current | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | 25 W | IP67 | 1.05 A | 305 VAC | -35 °C | 70 °C | CB CCC CE cURus ENEC PSE | 24 V | 13.2 V | 3750 VDC | Wire Leads | AC DC Converter | 1 | 85.5 % | Analog PWM |
MEAN WELL USA Inc. | Chassis Mount | OCP OTP OVP SCP | 90 VAC | Constant Current Voltage | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | 25 W | IP67 | 700 mA | 305 VAC | -35 °C | 70 °C | CB CCC CE cURus ENEC PSE | 36 V | 19.8 V | 3750 VDC | Wire Leads | AC DC Converter | 1 | 86 % | |
MEAN WELL USA Inc. | Chassis Mount | OCP OTP OVP SCP | 90 VAC | Constant Current | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | 25 W | IP67 | 700 mA | 305 VAC | -35 °C | 70 °C | CB CCC CE cURus ENEC PSE | 36 V | 19.8 V | 3750 VDC | Wire Leads | AC DC Converter | 1 | 85.5 % | Analog PWM |
MEAN WELL USA Inc. | Chassis Mount | OCP OTP OVP SCP | 90 VAC | Constant Current | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | 25 W | IP67 | 1.67 A | 305 VAC | -35 °C | 70 °C | CB CCC CE cURus ENEC PSE | 15 V | 8.25 V | 3750 VDC | Wire Leads | AC DC Converter | 1 | 84 % | Analog PWM |
MEAN WELL USA Inc. | Chassis Mount | OCP OTP OVP SCP | 90 VAC | Constant Current Voltage | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | 25 W | IP67 | 600 mA | 305 VAC | -35 °C | 70 °C | CB CCC CE cURus ENEC PSE | 42 V | 23.1 V | 3750 VDC | Wire Leads | AC DC Converter | 1 | 86 % | |
MEAN WELL USA Inc. | Chassis Mount | OCP OTP OVP SCP | 90 VAC | Constant Current | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | 25 W | IP67 | 470 mA | 305 VAC | -35 °C | 70 °C | CB CCC CE cURus ENEC PSE | 54 V | 29.7 V | 3750 VDC | Wire Leads | AC DC Converter | 1 | 86 % | Analog PWM |
MEAN WELL USA Inc. | Chassis Mount | OCP OTP OVP SCP | 90 VAC | Constant Current Voltage | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | 25 W | IP67 | 1.67 A | 305 VAC | -35 °C | 70 °C | CB CCC CE cURus ENEC PSE | 15 V | 8.25 V | 3750 VDC | Wire Leads | AC DC Converter | 1 | 85 % | |
MEAN WELL USA Inc. | Chassis Mount | OCP OTP OVP SCP | 90 VAC | Constant Current | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | 25 W | IP67 | 840 mA | 305 VAC | -35 °C | 70 °C | CB CCC CE cURus ENEC PSE | 30 VDC | 16.5 V | 3750 VDC | Wire Leads | AC DC Converter | 1 | 85.5 % | Analog PWM |
MEAN WELL USA Inc. | Chassis Mount | OCP OTP OVP SCP | 90 VAC | Constant Current Voltage | 5.83 " | 40 mm | 1.57 " | 1.26 " | 32 mm | 148 mm | 25 W | IP67 | 470 mA | 305 VAC | -35 °C | 70 °C | CB CCC CE cURus ENEC PSE | 54 V | 29.7 V | 3750 VDC | Wire Leads | AC DC Converter | 1 | 86.5 % |
