PKU451 Series

Catalog

DC DC CONVERTER 3.3V 50W

Part	Features	Voltage - Isolation	Voltage - Input (Min) [Min]	Package / Case	Efficiency	Supplier Device Package	Current - Output (Max) [Max]	Type	Voltage - Output 1	Standard Number	Voltage - Input (Max) [Max]	Approval Agency	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Control Features	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Outputs	Size / Dimension [y]	Size / Dimension [z]
Flex Power Modules PKU4510SI	Adjustable Output Remote On/Off Remote Sense	1.5 kV	36 V	Sixteenth Brick	89.9 %	Sixteenth Brick	15 A	Isolated Module	3.3 V	62368-1	75 V	CB CSA IEC TUV UL	50 W	0.9 in	9.9 mm	22.9 mm	1.3 in	0.39 "	33 mm	Active Low Enable	ITE (Commercial)	120 °C	-45 °C	Surface Mount	1

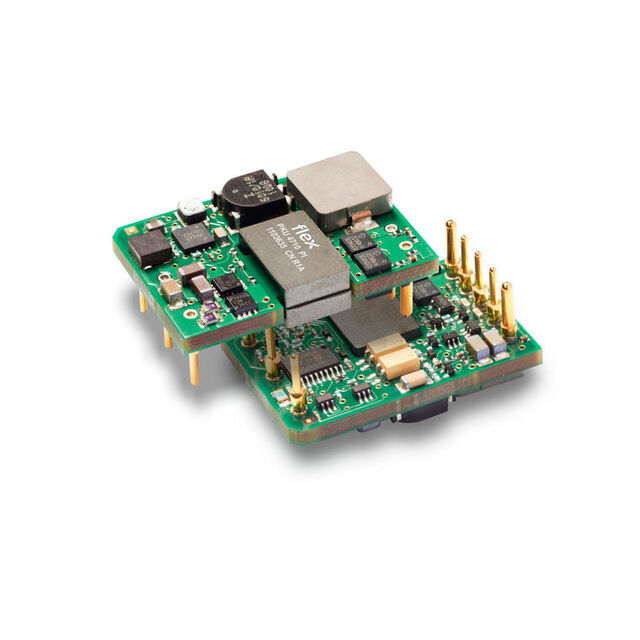

Flex Power Modules PKU4510PI	Adjustable Output Remote On/Off Remote Sense	1.5 kV	36 V	Sixteenth Brick	89.9 %	Sixteenth Brick	15 A	Isolated Module	3.3 V	62368-1	75 V	CB CSA IEC TUV UL	50 W	0.9 in	9.9 mm	22.9 mm	1.3 in	0.39 "	33 mm	Active Low Enable	ITE (Commercial)	120 °C	-45 °C	Through Hole	1
Flex Power Modules PKU4511SI	Adjustable Output Remote On/Off Remote Sense	1.5 kV	36 V	Sixteenth Brick	90 %	Sixteenth Brick	10 A	Isolated Module	5 V	62368-1	75 V	CB CSA IEC TUV UL	50 W	0.9 in	9.9 mm	22.9 mm	1.3 in	0.39 "	33 mm	Active Low Enable	ITE (Commercial)	120 °C	-45 °C	Surface Mount	1

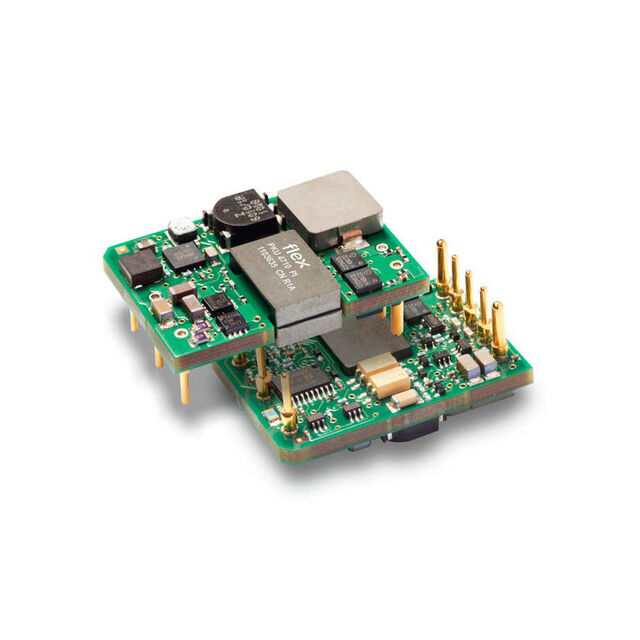

Flex Power Modules PKU4513PI	Adjustable Output Remote On/Off Remote Sense	1.5 kV	36 V	Sixteenth Brick		Sixteenth Brick	4.2 A	Isolated Module	12 V	62368-1	75 V	CB CSA IEC TUV UL	50 W	0.9 in	9.9 mm	22.9 mm	1.3 in	0.39 "	33 mm	Active Low Enable	ITE (Commercial)	120 °C	-45 °C	Through Hole	1
Flex Power Modules PKU4517VESI	Adjustable Output Remote On/Off	2250 VDC	18 V	Sixteenth Brick	92.3 %	Sixteenth Brick	9 A	Isolated Module	5.5 V	62368-1	60 V	CB CSA IEC TUV UL	50 W	0.9 in			1.3 in	0.37 in	33 mm	Active Low Enable	ITE (Commercial)	105 C	-40 °C	Surface Mount	1	22.9 mm	9.4 mm
Flex Power Modules PKU4515PI	Adjustable Output Remote On/Off Remote Sense	1.5 kV	36 V	Sixteenth Brick	89.9 %	Sixteenth Brick	3.3 A	Isolated Module	15 V	62368-1	75 V	CB CSA IEC TUV UL	50 W	0.9 in	9.9 mm	22.9 mm	1.3 in	0.39 "	33 mm	Active Low Enable	ITE (Commercial)	120 °C	-45 °C	Through Hole	1
Flex Power Modules PKU4515SI	Adjustable Output Remote On/Off Remote Sense	1.5 kV	36 V	Sixteenth Brick	89.9 %	Sixteenth Brick	3.3 A	Isolated Module	15 V	62368-1	75 V	CB CSA IEC TUV UL	50 W	0.9 in	9.9 mm	22.9 mm	1.3 in	0.39 "	33 mm	Active Low Enable	ITE (Commercial)	120 °C	-45 °C	Surface Mount	1
Flex Power Modules PKU4511PI	Adjustable Output Remote On/Off Remote Sense	1.5 kV	36 V	Sixteenth Brick	90 %	Sixteenth Brick	10 A	Isolated Module	5 V	62368-1	75 V	CB CSA IEC TUV UL	50 W	0.9 in	9.9 mm	22.9 mm	1.3 in	0.39 "	33 mm	Active Low Enable	ITE (Commercial)	120 °C	-45 °C	Through Hole	1
