CPS20 Series

Manufacturer: PULS, LP

Catalog

AC/DC DIN RAIL SUPPLY 48V 480W

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Number of Outputs	Features	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Approval Agency	Standard Number	Power (Watts)	AC Voltage - Input [Max]	AC Voltage - Input [Min]	Voltage - Isolation	Current - Output (Max) [Max]	Efficiency	Voltage - Output 1	Input Type	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Voltage - Output 1 [custom]
PULS, LP CPS20.481	124 mm	127 mm	65 mm	2.56 in	5 "	4.88 in	1	Adjustable Output Load Sharing PFC Universal Input	70 °C	-25 °C	Hazardous Locations ITE (Commercial)	ABS ATEX CSA DNV GL EAC IEC IECEx UL	508 60950-1 61010-2-201 Class I Div 2	480 W	264 VAC	100 VAC	3000 V	10 A	93.9 %	48 V	AC

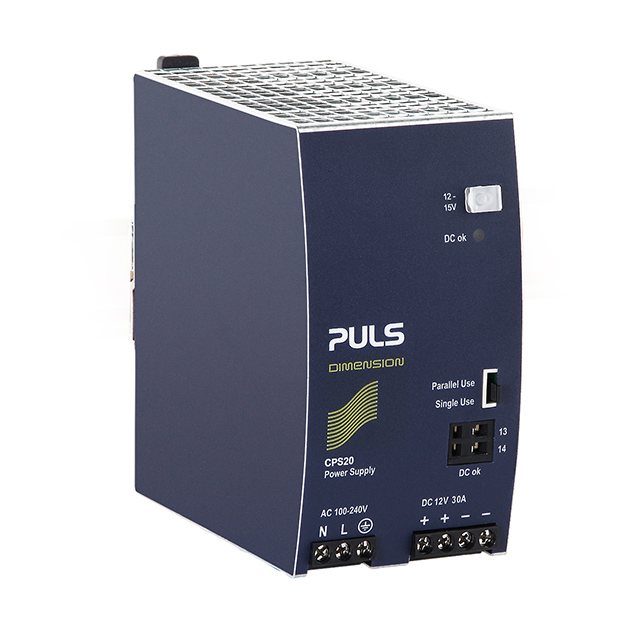

PULS, LP CPS20.121	124 mm	127 mm	65 mm	2.56 in	5 "	4.88 in	1	Adjustable Output Load Sharing PFC Universal Input	70 °C	-25 °C	Hazardous Locations ITE (Commercial)	ABS ATEX CSA DNV GL EAC IEC IECEx UL	508 60950-1 61010-2-201 Class I Div 2	360 W	264 VAC	85 VAC	3000 V	30 A	92.5 %	12 V	AC

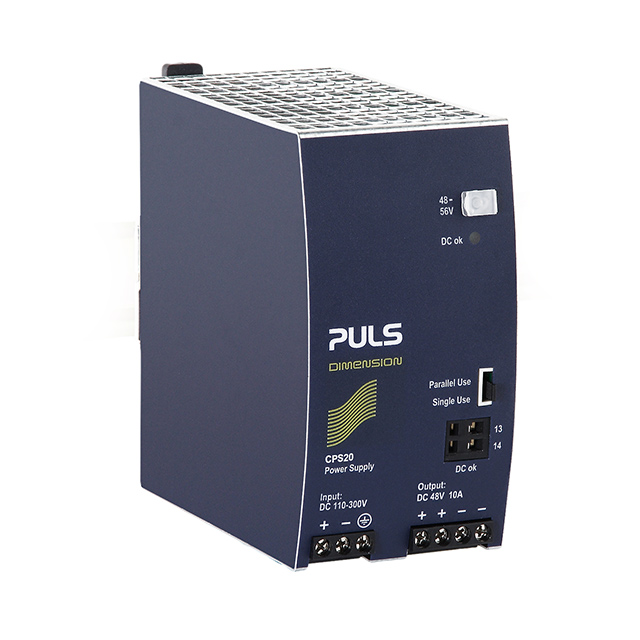

PULS, LP CPS20.481-D1	124 mm	127 mm	65 mm	2.56 in	5 "	4.88 in	1	Adjustable Output IP20 Load Sharing PFC Universal Input	70 °C	-25 °C	ITE (Commercial)	ATEX CSA EAC IEC IECEx UL	508 60950-1 61010-2-201 Class I Div 2	480 W			3000 V	10 A	92.8 %	48 V	DC	88 V	360 V

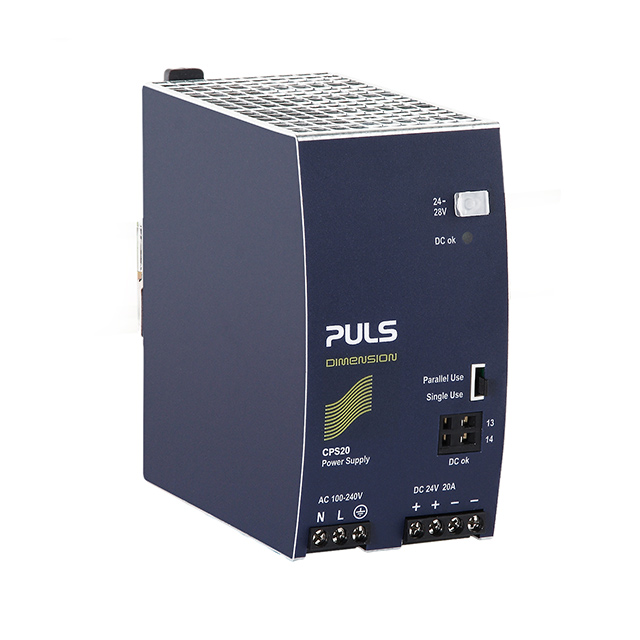

PULS, LP CPS20.241	124 mm	127 mm	65 mm	2.56 in	5 "	4.88 in	1	Adjustable Output Load Sharing PFC Universal Input	70 °C	-25 °C	Hazardous Locations ITE (Commercial)	ABS ATEX CSA DNV GL EAC IEC IECEx UL	508 60950-1 61010-2-201 Class I Div 2	480 W	264 VAC	100 VAC	3000 V	20 A	94 %	24 V	AC

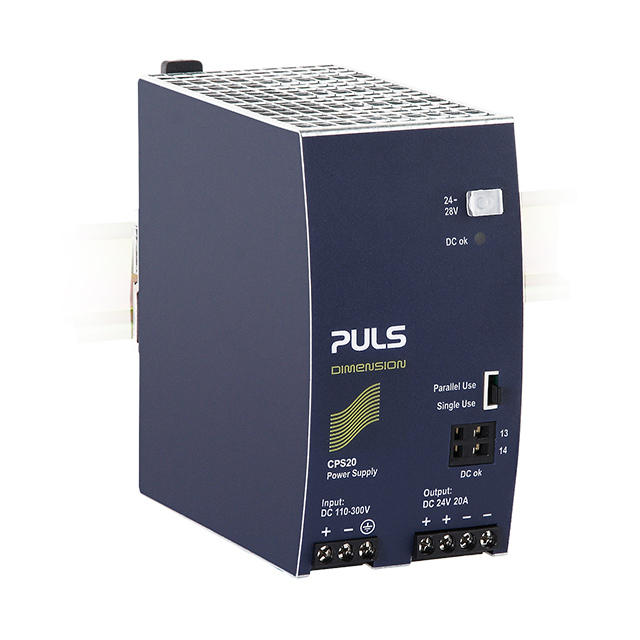

PULS, LP CPS20.241-D1	124 mm	127 mm	65 mm	2.56 in	5 "	4.88 in	1	Adjustable Output IP20 Load Sharing PFC Universal Input	70 °C	-25 °C	ITE (Commercial)	ATEX CSA EAC IEC IECEx UL	508 60950-1 61010-2-201 Class I Div 2	480 W			3000 V	20 A		24 V	DC	88 V	360 V

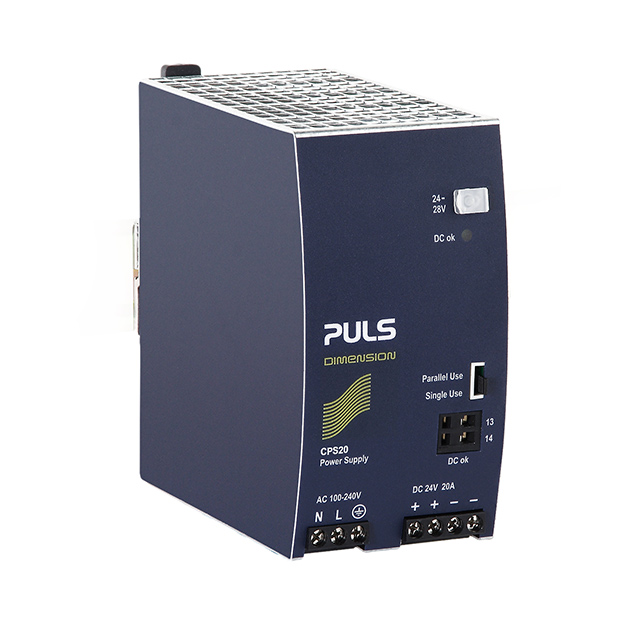

PULS, LP CPS20.241-C1	124 mm	127 mm	65 mm	2.56 in	5 "	4.88 in	1	Adjustable Output Conformal Coating Load Sharing PFC Universal Input	70 °C	-25 °C	Hazardous Locations ITE (Commercial)	ABS ATEX CSA DNV GL EAC EN IEC IECEx UL	50155 508 60950-1 61010-2-201 Class I Div 2	480 W	240 VAC	100 VAC	3000 V	20 A	94 %	24 V	AC
PULS, LP CPS20.361	124 mm	127 mm	65 mm	2.56 in	5 "	4.88 in	1	Adjustable Output Load Sharing PFC Universal Input	70 °C	-25 °C	Hazardous Locations ITE (Commercial)	ABS ATEX CSA DNV GL EAC IEC IECEx UL	508 60950-1 61010-2-201 Class I Div 2	480 W	240 VAC	100 VAC	3000 V	13.3 A	94.3 %		AC			36 V
