ECA-2CM Series

Manufacturer: Panasonic Electronic Components

Catalog

CAP ALUM 470UF 20% 160V RADIAL

Part	Voltage - Rated	Package / Case	Ripple Current @ Low Frequency	Mounting Type	Lifetime @ Temp.	Lead Spacing	Lead Spacing	Polarization	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Capacitance	Ripple Current @ High Frequency	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [custom]	Height - Seated (Max) [Max] [custom]
Panasonic Electronic Components ECA-2CM471	160 V	Can Radial	1.44 A	Through Hole	2000 Hrs	0.295 in	7.5 mm	Polar	20 %	0.709 in	18 mm	85 °C	-25 °C	General Purpose	470 µF	2.448 A	42 mm	1.654 in
Panasonic Electronic Components ECA-2CM4R7	160 V	Can Radial	78 mA	Through Hole	2000 Hrs	0.098 in	2.5 mm	Polar	20 %	0.248 "	6.3 mm	85 °C	-25 °C	General Purpose	4.7 µF	132.6 mA			12.2 mm	0.48 in
Panasonic Electronic Components ECA-2CM220B	160 V	Can Radial	175 mA	Through Hole	2000 Hrs	0.197 "	5 mm	Polar	20 %	0.394 in	10 mm	85 °C	-25 °C	General Purpose	22 µF	297.5 mA		0.669 "			17 mm
Panasonic Electronic Components ECA-2CM010I	160 V	Can Radial	36 mA	Through Hole	2000 Hrs	0.098 in	2.5 mm	Polar	20 %	0.248 "	6.3 mm	85 °C	-25 °C	General Purpose	1 µF	61.2 mA			12.2 mm	0.48 in
Panasonic Electronic Components ECA-2CM2R2B	160 V	Can Radial	53 mA	Through Hole	2000 Hrs	0.197 "	5 mm	Polar	20 %	0.248 "	6.3 mm	85 °C	-25 °C	General Purpose	2.2 µF	90.1 mA			12.2 mm	0.48 in
Panasonic Electronic Components ECA-2CM330B	160 V	Can Radial	235 mA	Through Hole	2000 Hrs	0.197 "	5 mm	Polar	20 %	0.394 in	10 mm	85 °C	-25 °C	General Purpose	33 ÁF	399.5 mA						0.866 in	22 mm

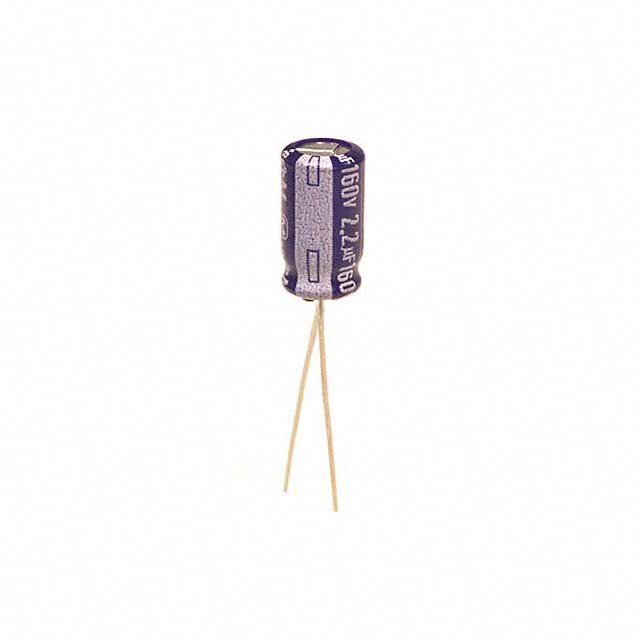

Panasonic Electronic Components ECA-2CM2R2	160 V	Can Radial	53 mA	Through Hole	2000 Hrs	0.098 in	2.5 mm	Polar	20 %	0.248 "	6.3 mm	85 °C	-25 °C	General Purpose	2.2 µF	90.1 mA			12.2 mm	0.48 in

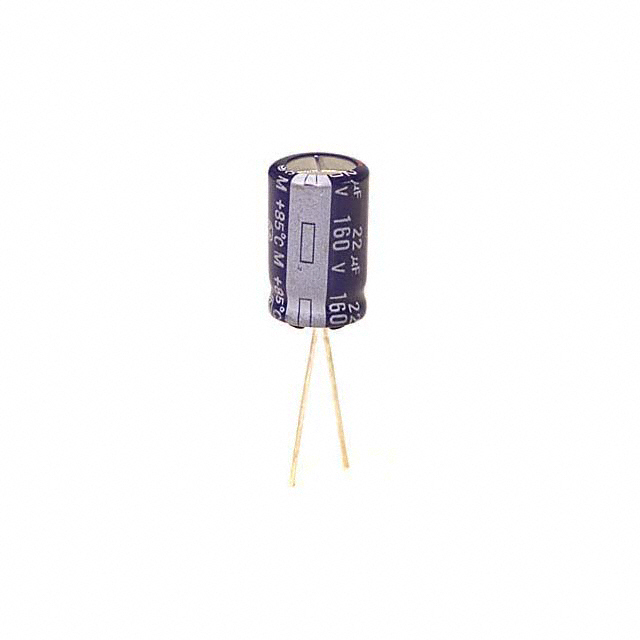

Panasonic Electronic Components ECA-2CM220	160 V	Can Radial	175 mA	Through Hole	2000 Hrs	0.197 "	5 mm	Polar	20 %	0.394 in	10 mm	85 °C	-25 °C	General Purpose	22 µF	297.5 mA		0.669 "			17 mm
Panasonic Electronic Components ECA-2CM2R2I	160 V	Can Radial	53 mA	Through Hole	2000 Hrs	0.098 in	2.5 mm	Polar	20 %	0.248 "	6.3 mm	85 °C	-25 °C	General Purpose	2.2 µF	90.1 mA			12.2 mm	0.48 in

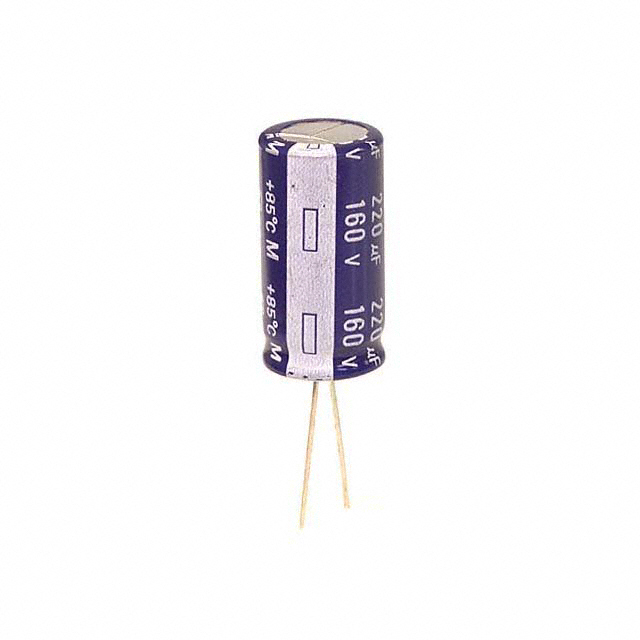

Panasonic Electronic Components ECA-2CM221	160 V	Can Radial	830 mA	Through Hole	2000 Hrs	0.295 in	7.5 mm	Polar	20 %	0.63 in	16 mm	85 °C	-25 °C	General Purpose	220 µF	1.411 A		1.319 in	33.5 mm
