9RF0924 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

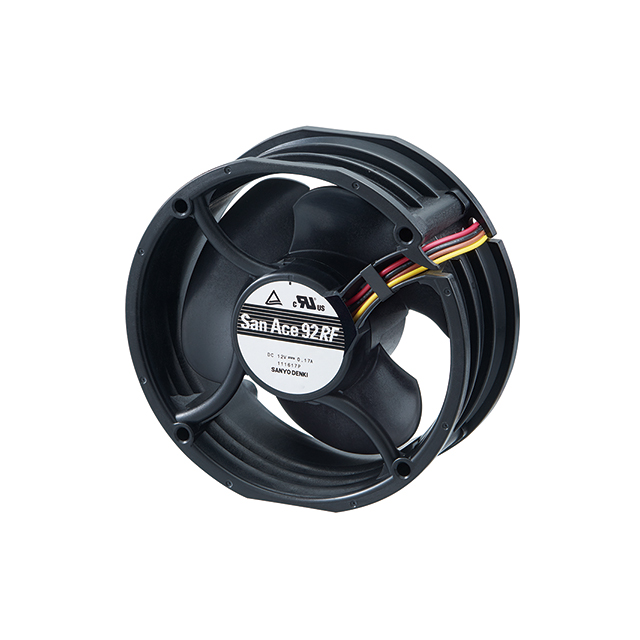

AXIAL FAN, 92MM, 24VDC, 42.4CFM, 39DBA
| Part | Current Rating (Amps) | Material - Frame | Lifetime @ Temp. | Material - Blade | Air Flow | Air Flow | Voltage - Rated | Bearing Type | Power (Watts) | Fan Type | Static Pressure | Static Pressure | Size / Dimension | Size / Dimension [diameter] | Noise | Width [y] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Features | Approval Agency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 0.09 A | Plastic | 40000 Hrs | Plastic | 1.19 mł/min | 42.4 CFM | 24 VDC | Ball | 2.2 W | Tubeaxial | 156.9 Pa | 0.63 in H2O | Round | 92 mm | 39 dB(A) | 38 mm | 4 Wire Leads | -20 ░C | 70 °C | PWM Control Reversible Flow Speed Sensor (Tach) | cURus TUV |
