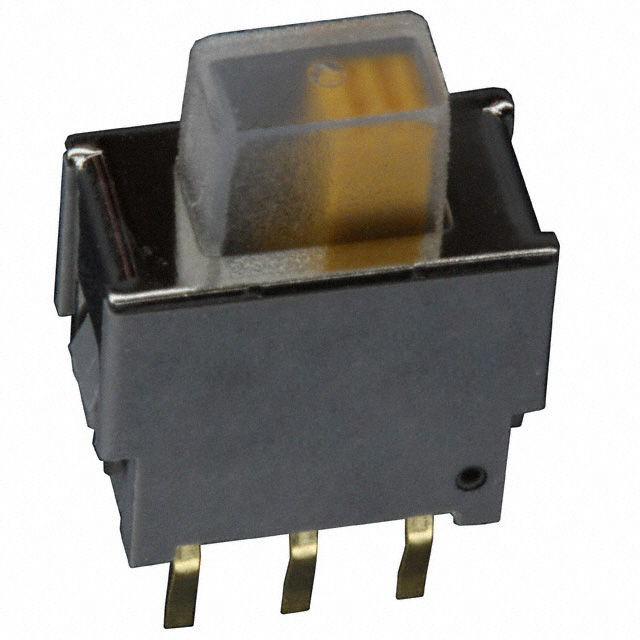

ASE2D-2M Series

Catalog

SLIDE SWITCH, HYPER-MINIATURE, DPDT, ON-ON, THROUGH HOLE, ASE SERIES, 50 MA, 60 V

Part	Circuit	Mounting Type	Voltage Rating - AC	Electrical Life	Contact Timing	Switch Travel [custom]	Current Rating (Amps)	Features	Operating Force [Max]	Operating Force [Min]	Actuator Length [x]	Termination Style	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Voltage Rating - DC	Contact Finish
Nidec Components Corporation ASE2D-2M-10-Z	DPDT	Through Hole	60 V	10000 Cycles	Non-Shorting	2.2 mm	50 mA	Washable	500 gf	70 gf	2.8 mm	PC Pin	Standard	85 °C	-20 C	On-On	60 VDC	Gold
