PMG-25 Series

Catalog

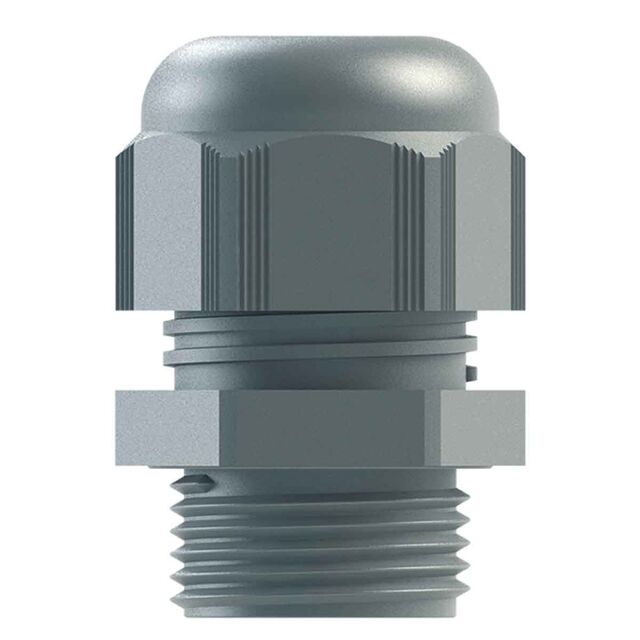

CABLE GLAND 9-16MM M25 POLYAMIDE

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Type	Includes	Thread Size	Color	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max)	Thread Length	Thread Length	Panel Hole Size	Panel Hole Size	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection
SAB North America PMG-25R	0.354 in	9 mm	Cable Gland	Locknut	M25x1.5	Gray	0.63 in	16 mm	0.394 in	10 mm	25 mm	0.984 in	-20 ░C	100 °C	IP68 - Dust Tight Waterproof
