002216 Series

Manufacturer: Molex

Catalog

CONN RCPT 7POS 0.1 GOLD EDGE MNT

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Positions	Voltage Rating	Contact Finish - Post	Connector Type	Insulation Height [z]	Insulation Height [z]	Termination	Contact Type	Features	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Current Rating (Amps)	Fastening Type	Number of Rows	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Insulation Color	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Mounting Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Applications	Contact Shape	Contact Material	Insulation Material

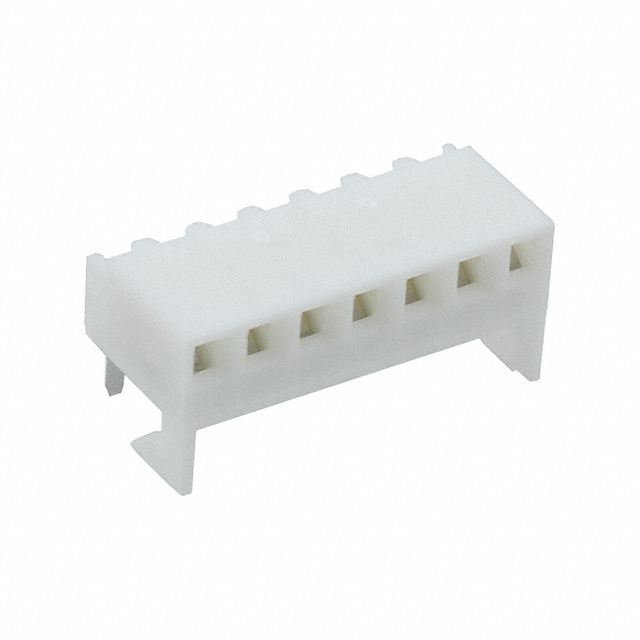

Molex 0022162070	80 °C	-40 C	7	250 VAC	Tin	Receptacle	0.185 in	4.7 mm	Solder	Cat Ear Female Non-Gendered	Board Hooks	0.1 "	2.54 mm	All	2.5 A	Push-Pull	1	Board to Board Cable	0.38 µm	15 µin	UL94 V-0	White	Gold	0.132 in	3.35 mm	Board Edge Right Angle Through Hole	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Square	Brass	Nylon Polyamide (PA)
Molex 0022162161	80 °C	-40 C	16	250 VAC	Gold	Receptacle	0.185 in	4.7 mm	Solder	Cat Ear Female Non-Gendered	Board Hooks	0.1 "	2.54 mm	All	2.5 A	Push-Pull	1	Board to Board Cable	0.51 µm	20 µin	UL94 V-0	White	Gold	0.132 in	3.35 mm	Board Edge Right Angle Through Hole	0.051 µm	2 µin	Automotive General Purpose Medical Telecommunications	Square	Brass	Nylon Polyamide (PA)

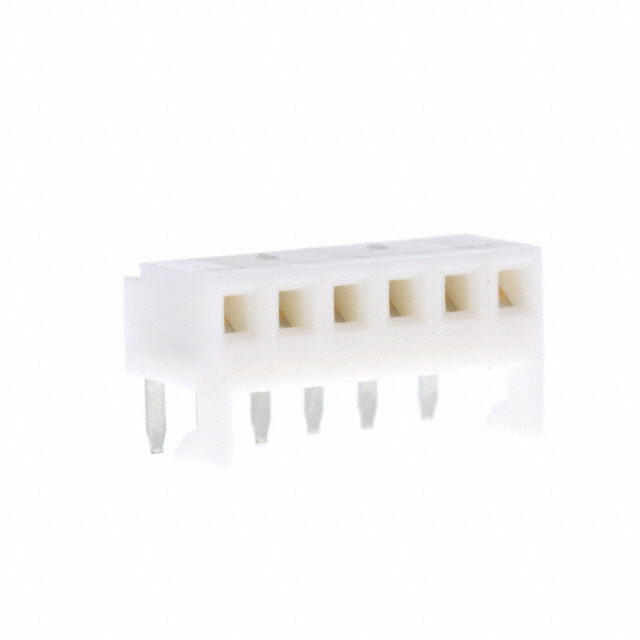

Molex 0022162060	80 °C	-40 C	6	250 VAC	Tin	Receptacle	0.185 in	4.7 mm	Solder	Cat Ear Female Non-Gendered	Board Hooks	0.1 "	2.54 mm	All	2.5 A	Push-Pull	1	Board to Board Cable	0.38 µm	15 µin	UL94 V-0	White	Gold	0.132 in	3.35 mm	Board Edge Right Angle Through Hole	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Square	Brass	Nylon Polyamide (PA)
Molex 0022162181	80 °C	-40 C	18	250 VAC	Gold	Receptacle	0.185 in	4.7 mm	Solder	Cat Ear Female Non-Gendered	Board Hooks	0.1 "	2.54 mm	All	2.5 A	Push-Pull	1	Board to Board Cable	0.51 µm	20 µin	UL94 V-0	White	Gold	0.132 in	3.35 mm	Board Edge Right Angle Through Hole	0.051 µm	2 µin	Automotive General Purpose Medical Telecommunications	Square	Brass	Nylon Polyamide (PA)
Molex 0022162140	80 °C	-40 C	14	250 VAC	Tin	Receptacle	0.185 in	4.7 mm	Solder	Cat Ear Female Non-Gendered	Board Hooks	0.1 "	2.54 mm	All	2.5 A	Push-Pull	1	Board to Board Cable	0.38 µm	15 µin	UL94 V-0	White	Gold	0.132 in	3.35 mm	Board Edge Right Angle Through Hole	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Square	Brass	Nylon Polyamide (PA)
Molex 0022162030	80 °C	-40 C		250 VAC	Tin	Receptacle	0.185 in	4.7 mm	Solder	Cat Ear Female Non-Gendered	Board Hooks	0.1 "	2.54 mm	All	2.5 A	Push-Pull	1	Board to Board Cable	0.38 µm	15 µin	UL94 V-0	White	Gold	0.132 in	3.35 mm	Board Edge Right Angle Through Hole	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Square	Brass	Nylon Polyamide (PA)

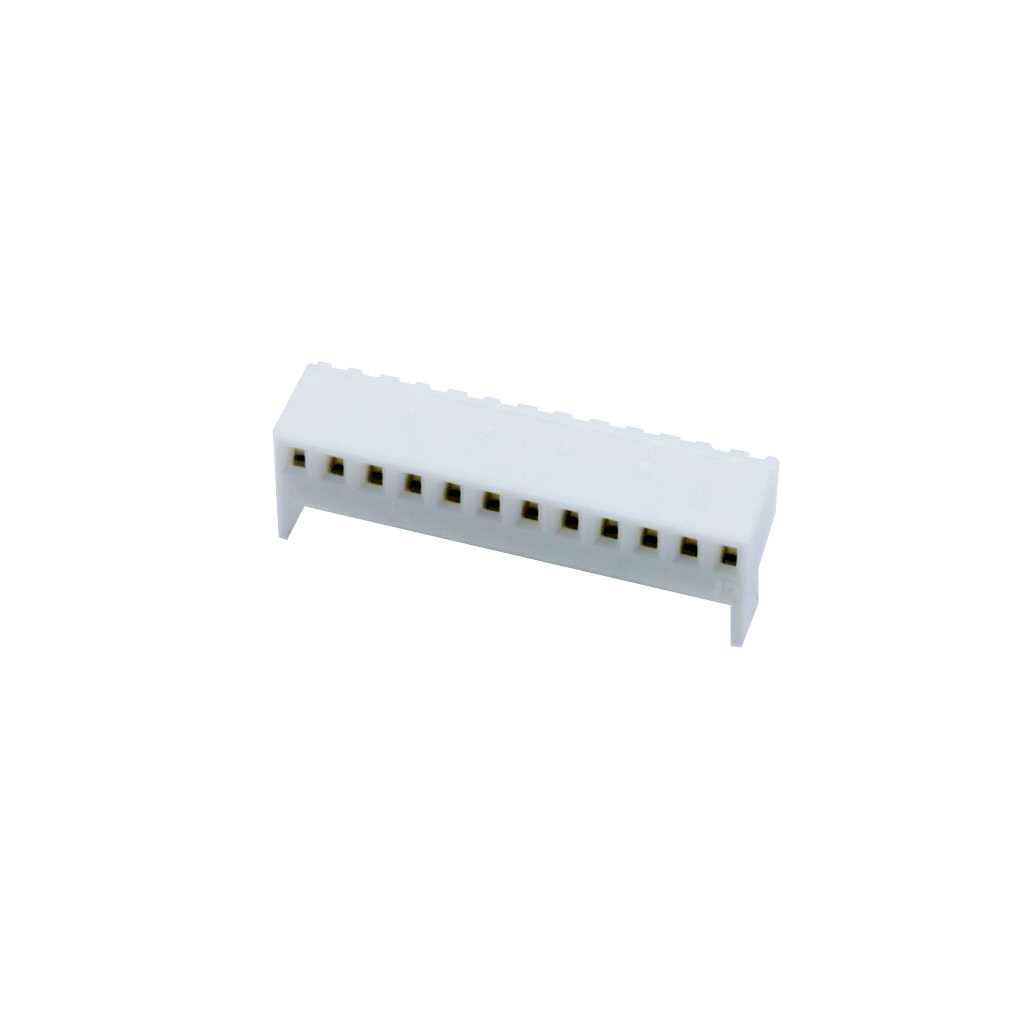

Molex 0022162121	80 °C	-40 C	12	250 VAC	Gold	Receptacle	0.185 in	4.7 mm	Solder	Cat Ear Female Non-Gendered	Board Hooks	0.1 "	2.54 mm	All	2.5 A	Push-Pull	1	Board to Board Cable	0.51 µm	20 µin	UL94 V-0	White	Gold	0.132 in	3.35 mm	Board Edge Right Angle Through Hole	0.051 µm	2 µin	Automotive General Purpose Medical Telecommunications	Square	Brass	Nylon Polyamide (PA)

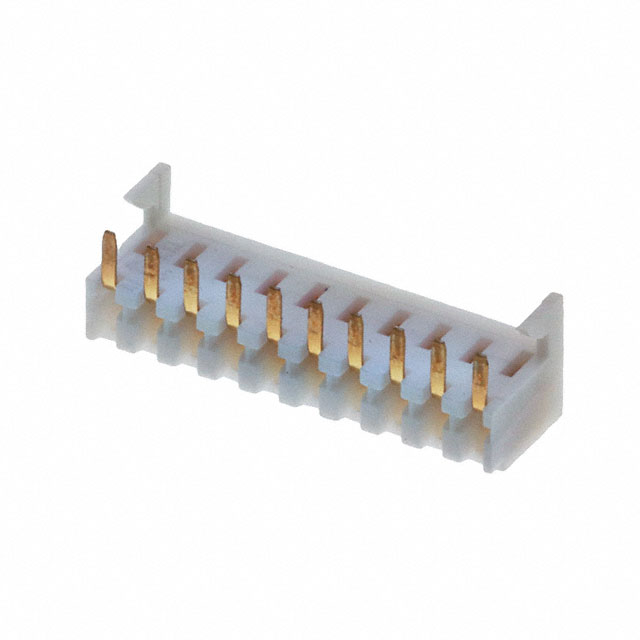

Molex 0022162101	80 °C	-40 C	10	250 VAC	Gold	Receptacle	0.185 in	4.7 mm	Solder	Cat Ear Female Non-Gendered	Board Hooks	0.1 "	2.54 mm	All	2.5 A	Push-Pull	1	Board to Board Cable	0.51 µm	20 µin	UL94 V-0	White	Gold	0.132 in	3.35 mm	Board Edge Right Angle Through Hole	0.051 µm	2 µin	Automotive General Purpose Medical Telecommunications	Square	Brass	Nylon Polyamide (PA)
Molex 0022162160	80 °C	-40 C	16	250 VAC	Tin	Receptacle	0.185 in	4.7 mm	Solder	Cat Ear Female Non-Gendered	Board Hooks	0.1 "	2.54 mm	All	2.5 A	Push-Pull	1	Board to Board Cable	0.38 µm	15 µin	UL94 V-0	White	Gold	0.132 in	3.35 mm	Board Edge Right Angle Through Hole	2.54 µm	100 µin	Automotive General Purpose Medical Telecommunications	Square	Brass	Nylon Polyamide (PA)
Molex 0022162071	80 °C	-40 C	7	250 VAC	Gold	Receptacle	0.185 in	4.7 mm	Solder	Cat Ear Female Non-Gendered	Board Hooks	0.1 "	2.54 mm	All	2.5 A	Push-Pull	1	Board to Board Cable	0.51 µm	20 µin	UL94 V-0	White	Gold	0.132 in	3.35 mm	Board Edge Right Angle Through Hole	0.051 µm	2 µin	Automotive General Purpose Medical Telecommunications	Square	Brass	Nylon Polyamide (PA)
