0906-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

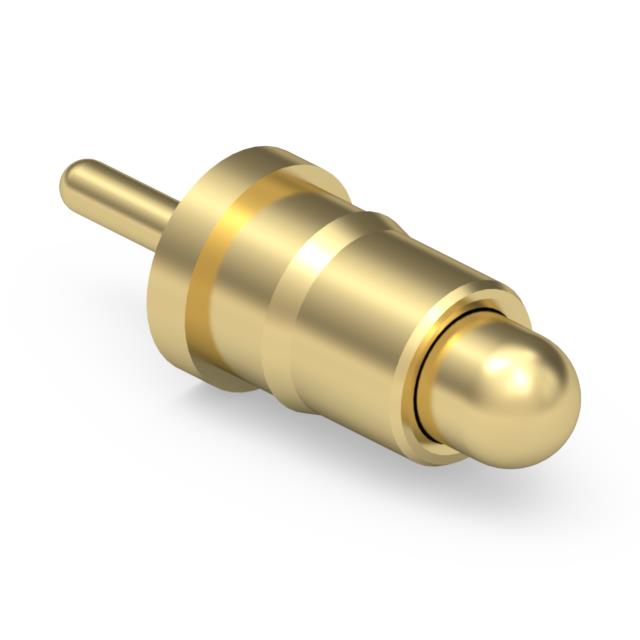

CONTACT SPRING LOADED T/H GOLD
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Operating Force - Initial | Contact Type | Minimum Working Height | Minimum Working Height | Contact Finish | Pad Layout Dimension | Pad Layout Dimension | Mating Cycles | Maximum Working Height [Max] | Maximum Working Height [Max] | Current Rating (Amps) | Recommended Working Height | Recommended Working Height | Plunger Size [diameter] | Plunger Size [diameter] | Operating Force - Mid Compression | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | -55 C | 125 °C | Brass Alloy | 20 µin | 0.51 µm | 15 gf | Sleeve & Plunger (Pogo Pins) | 2.5 mm | 0.098 in | Gold | 0.072 in | 1.83 mm | 1000000 | 0.137 in | 3.48 mm | 5.2 A | 3 mm | 0.118 in | 0.042 in | 1.07 mm | 60 gf | Through Hole |
