887-086 Series

Manufacturer: EDAC Inc.

Catalog

Catalog

CONN EDGE DUAL FMALE 86POS 0.156

...

Part	Material - Insulation	Termination Rows [custom]	Card Type	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]	Read Out	Color	Gender	Contact Material	Termination	Pitch	Pitch	Mounting Type	Contact Type	Number of Positions	Card Thickness [Max]	Card Thickness [Min]	Number of Positions/Bay/Row	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows [custom]	Features
EDAC Inc. 887-086-558-202	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	125 °C	-40 C	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "	Dual	Black	Female	Copper Alloy	Solder	3.96 mm	0.156 in	Right Angle Through Hole	Cantilever	86	0.07 in 1.78 mm	0.054 in 1.37 mm	43	0.25 Ám	10 Áin	Gold	2
EDAC Inc. 887-086-558-207	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	125 °C	-40 C	Flush Mount M3 Threaded Insert Top Opening			Dual	Black	Female	Copper Alloy	Solder	3.96 mm	0.156 in	Right Angle Through Hole	Cantilever	86	0.07 in 1.78 mm	0.054 in 1.37 mm	43	0.25 Ám	10 Áin	Gold	2

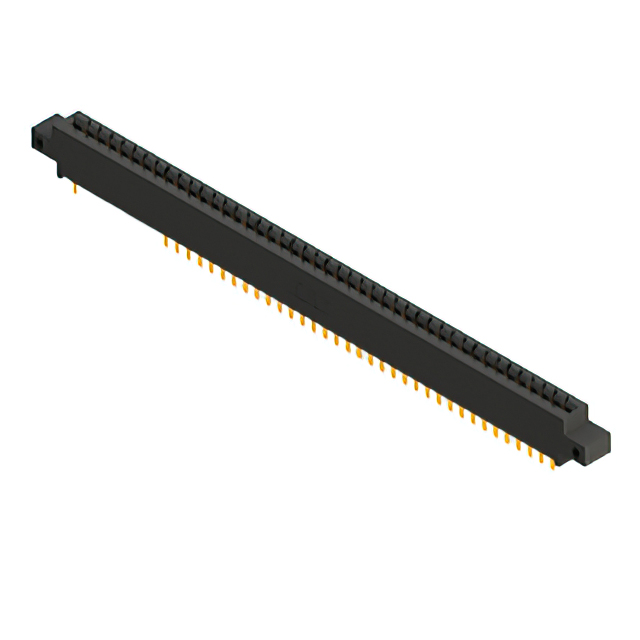

EDAC Inc. 887-086-544-812	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	125 °C	-40 C	Side Mount Opening Unthreaded	3.25 mm	0.128 "	Dual	Black	Female	Copper Alloy	Wire Wrap	3.96 mm	0.156 in	Through Hole	Cantilever	86	0.07 in 1.78 mm	0.054 in 1.37 mm	43	0.25 Ám	10 Áin	Gold	2
EDAC Inc. 887-086-555-208	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	125 °C	-40 C	4-40 Flush Mount Threaded Insert Top Opening			Dual	Black	Female	Copper Alloy	Solder	3.96 mm	0.156 in	Board Edge Straddle Mount	Cantilever	86	0.07 in 1.78 mm	0.054 in 1.37 mm	43	0.25 Ám	10 Áin	Gold	2	Card Extender
EDAC Inc. 887-086-523-207	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	125 °C	-40 C	Flush Mount M3 Threaded Insert Top Opening			Dual	Black	Female	Copper Alloy	Solder	3.96 mm	0.156 in	Through Hole	Cantilever	86	0.07 in 1.78 mm	0.054 in 1.37 mm	43	0.25 Ám	10 Áin	Gold	2
EDAC Inc. 887-086-542-804	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	125 °C	-40 C		3.96 mm	0.156 "	Dual	Black	Female	Copper Alloy	Wire Wrap	3.96 mm	0.156 in	Through Hole	Cantilever	86	0.07 in 1.78 mm	0.054 in 1.37 mm	43	0.25 Ám	10 Áin	Gold	2
EDAC Inc. 887-086-559-804	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	125 °C	-40 C		3.96 mm	0.156 "	Dual	Black	Female	Copper Alloy	Solder	3.96 mm	0.156 in	Right Angle Through Hole	Cantilever	86	0.07 in 1.78 mm	0.054 in 1.37 mm	43	0.25 Ám	10 Áin	Gold	2
EDAC Inc. 887-086-559-808	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	125 °C	-40 C	4-40 Threaded Insert Top Mount Opening			Dual	Black	Female	Copper Alloy	Solder	3.96 mm	0.156 in	Right Angle Through Hole	Cantilever	86	0.07 in 1.78 mm	0.054 in 1.37 mm	43	0.25 Ám	10 Áin	Gold	2
EDAC Inc. 887-086-523-803	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	125 °C	-40 C	Floating Bobbin Top Mount Opening	2.95 mm	0.116 "	Dual	Black	Female	Copper Alloy	Solder	3.96 mm	0.156 in	Through Hole	Cantilever	86	0.07 in 1.78 mm	0.054 in 1.37 mm	43	0.25 Ám	10 Áin	Gold	2

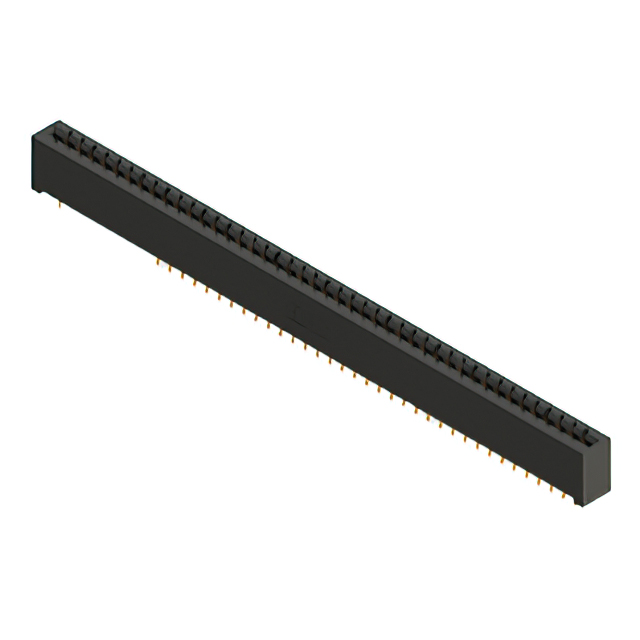

EDAC Inc. 887-086-556-201	Polyphenylene Sulfide (PPS)	2	Non Specified - Dual Edge	125 °C	-40 C				Dual	Black	Female	Copper Alloy	Solder	3.96 mm	0.156 in	Board Edge Straddle Mount	Cantilever	86	0.07 in 1.78 mm	0.054 in 1.37 mm	43	0.25 Ám	10 Áin	Gold	2	Card Extender
