XC6604 Series

Catalog

IC REG LINEAR 1.5V 1A 6USPC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Number of Regulators	Mounting Type	Control Features	Current - Quiescent (Iq)	Current - Output	Supplier Device Package	Voltage Dropout (Max)	PSRR	Voltage - Input (Max) [Max]	Output Configuration	Protection Features	Voltage - Output (Min/Fixed)	Voltage - Output (Min/Fixed) [Min]	Voltage Dropout (Max) [Max]
Torex Semiconductor Ltd XC6604A151ER-G	85 C	-40 ¯C	6-UFDFN Exposed Pad	1	Surface Mount	Enable Soft Start	143 µA	1 A	6-USPC (1.8x2)	0.208 V	75 dB	3 V	Positive	Over Current Over Temperature Under Voltage Lockout (UVLO)	1.5 V

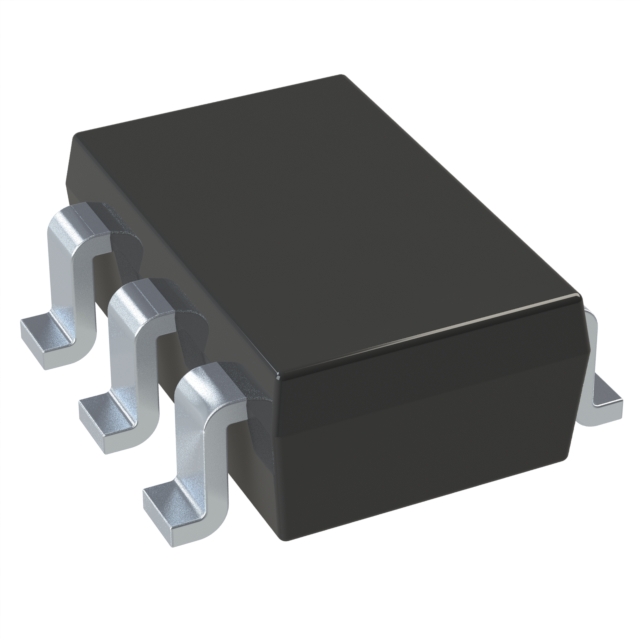

Torex Semiconductor Ltd XC6604B121MR-G	85 C	-40 ¯C	SOT-26W	1	Surface Mount	Enable	143 µA	1 A	SOT-26W	0.208 V	75 dB	3 V	Positive	Over Current Over Temperature Under Voltage Lockout (UVLO)	1.2 V
Torex Semiconductor Ltd XC6604A071ER-G	85 C	-40 ¯C	6-UFDFN Exposed Pad	1	Surface Mount	Enable Soft Start	143 µA	1 A	6-USPC (1.8x2)		75 dB	3 V	Positive	Over Current Over Temperature Under Voltage Lockout (UVLO)		0.7 V	0.206 V
Torex Semiconductor Ltd XC6604B151ER-G	85 C	-40 ¯C	6-UFDFN Exposed Pad	1	Surface Mount	Enable	143 µA	1 A	6-USPC (1.8x2)	0.208 V	75 dB	3 V	Positive	Over Current Over Temperature Under Voltage Lockout (UVLO)	1.5 V
Torex Semiconductor Ltd XC6604B061ER-G	85 C	-40 ¯C	6-UFDFN Exposed Pad	1	Surface Mount	Enable	143 µA	1 A	6-USPC (1.8x2)		75 dB	3 V	Positive	Over Current Over Temperature Under Voltage Lockout (UVLO)	0.6 V		0.206 V
Torex Semiconductor Ltd XC6604A051ER-G	85 C	-40 ¯C	6-UFDFN Exposed Pad	1	Surface Mount	Enable Soft Start	143 µA	1 A	6-USPC (1.8x2)		75 dB	3 V	Positive	Over Current Over Temperature Under Voltage Lockout (UVLO)		0.5 V	0.206 V
Torex Semiconductor Ltd XC6604B161ER-G	85 C	-40 ¯C	6-UFDFN Exposed Pad	1	Surface Mount	Enable	143 µA	1 A	6-USPC (1.8x2)	0.208 V	75 dB	3 V	Positive	Over Current Over Temperature Under Voltage Lockout (UVLO)	1.6 V
Torex Semiconductor Ltd XC6604B091ER-G	85 C	-40 ¯C	6-UFDFN Exposed Pad	1	Surface Mount	Enable	143 µA	1 A	6-USPC (1.8x2)		75 dB	3 V	Positive	Over Current Over Temperature Under Voltage Lockout (UVLO)	0.9 V		0.206 V
Torex Semiconductor Ltd XC6604B111MR-G	85 C	-40 ¯C	SOT-26W	1	Surface Mount	Enable	143 µA	1 A	SOT-26W		75 dB	3 V	Positive	Over Current Over Temperature Under Voltage Lockout (UVLO)	1.1 V		0.206 V
Torex Semiconductor Ltd XC6604A141MR-G	85 C	-40 ¯C	SOT-26W	1	Surface Mount	Enable Soft Start	143 µA	1 A	SOT-26W	0.208 V	75 dB	3 V	Positive	Over Current Over Temperature Under Voltage Lockout (UVLO)		1.4 V
