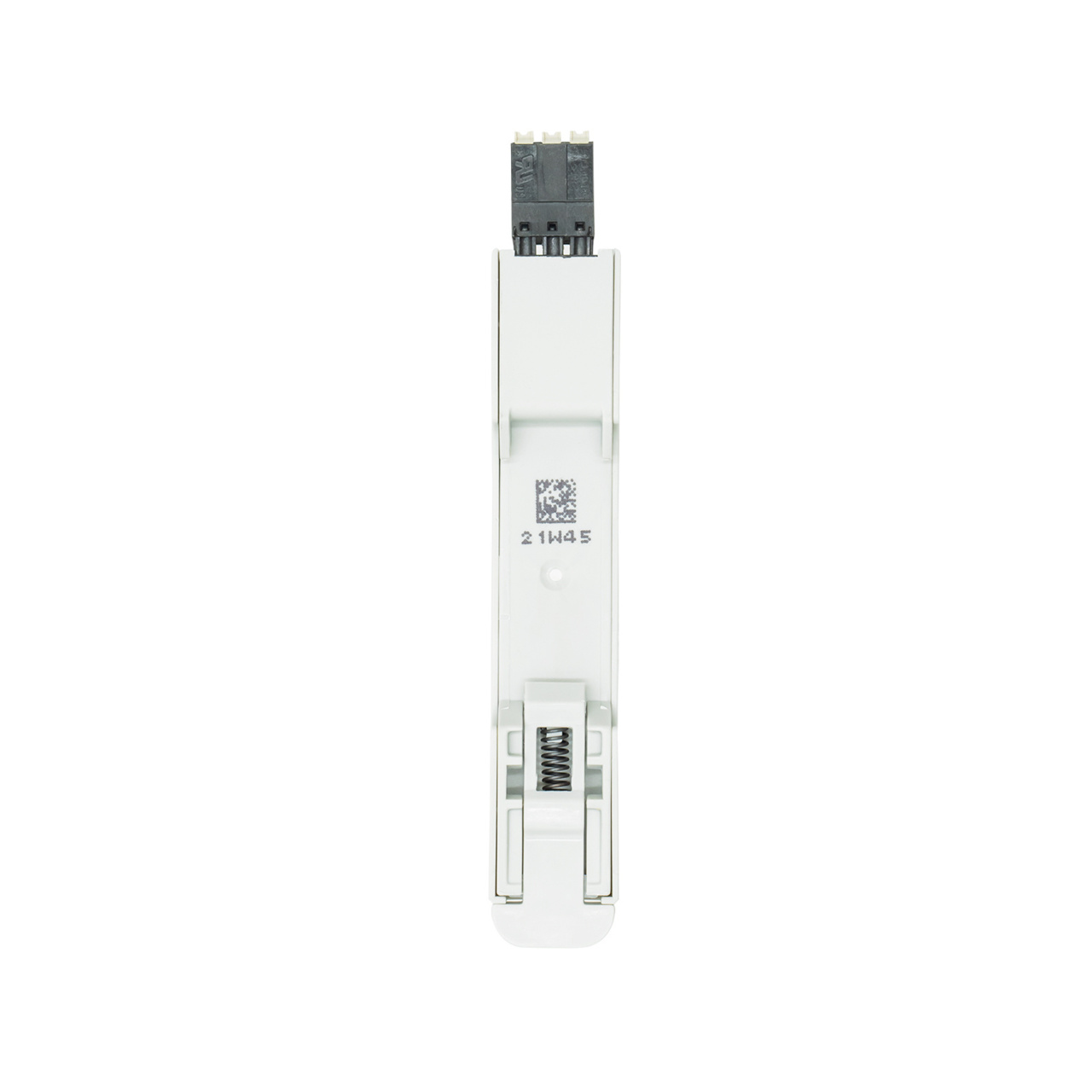

SPD2-150-1P0-R Series

"SPD,DIN RAIL,TYPE 2,1P0,150V,RC"

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

"SPD,DIN RAIL,TYPE 2,1P0,150V,RC"

Part	Features	Current - Short Circuit Rating (SCCR)	Voltage - Continuous Operating (Max) (MCOV) [Max]	Current - Discharge (Nom) (8/20µS)	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Form	Voltage - Protection Rating (VPR)	Voltage - Protection Level (VP) (2416)	Current - Discharge (Max) (8/20µS) [Max]	Type	Number of Poles
Littelfuse/Commercial Vehicle Products SPD2-150-1P0-R	Remote Signaling Contacts Thermally Protected	200 kA	150 VAC	20 kA	-40 °C	80 C	DIN Rail	Base + Module	600 V	1.25 kV	50 kA	Type 1 Type 2	1

Catalog

"SPD,DIN RAIL,TYPE 2,1P0,150V,RC"

Description

Surge protection devices (SPDs) provide equipment protection from transient overvoltage events lasting micro-seconds. By limiting the overvoltage to the equipment during these events, costly damage and downtime can be mitigated. The surge protection devices for the 1+0 configuration are available for 60 V to 600 V nominal voltage sub-distribution board applications.
