FSM2 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

SWITCH TACTILE SPST-NO 0.05A 24V

Part	Switch Travel	Actuator Material	Mechanical Life	Actuator Height off PCB, Vertical [z]	Outline [x]	Outline [y]	Contact Rating @ Voltage	Mounting Type	Termination Style	Circuit	Actuator Type	Operating Temperature [Min]	Operating Temperature [Max]	Illumination	Switch Function	Operating Force	Actuator Orientation	Features	Actuator Height off PCB, Vertical

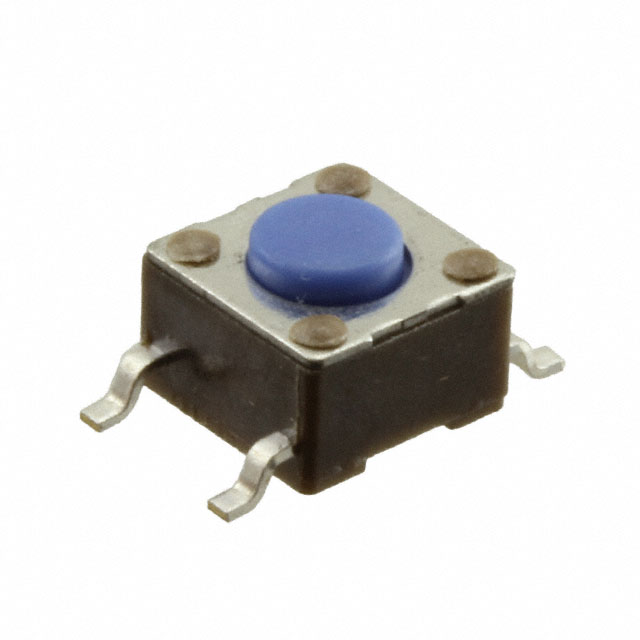

TE Connectivity AMP Connectors FSM2JSMLSTR	0.25 mm	Polyamide (PA) Nylon	1000000 Cycles	4.3 mm	6 mm	6 mm	0.05 A 24 VDC	Surface Mount	Gull Wing	SPST-NO	Standard	-40 C	105 ░C	Non-Illuminated	Off-Mom	100 gf	Top Actuated

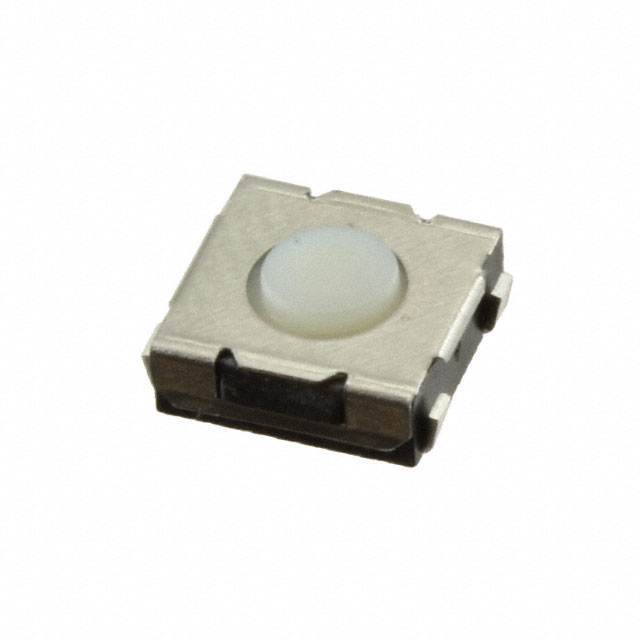

TE Connectivity AMP Connectors FSM2JELJXLTR	0.2 mm	Thermoplastic	2000000 Cycles	2.5 mm	6.2 mm	6.2 mm	0.05 A 24 VDC	Surface Mount	J Lead	SPST-NO	Standard	-35 °C	85 °C	Non-Illuminated	Off-Mom	50 gf	Top Actuated

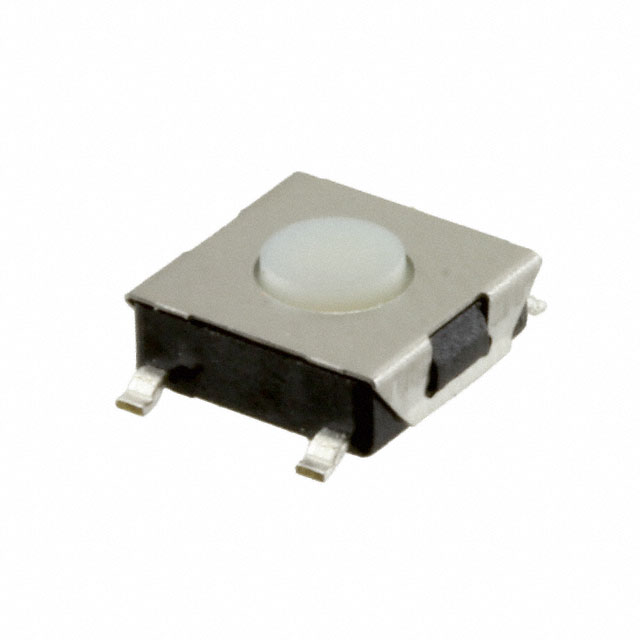

TE Connectivity AMP Connectors FSM2JELGXLTR	0.25 mm	Thermoplastic	1000000 Cycles	2.5 mm	6.2 mm	6.2 mm	0.05 A 12 VDC	Surface Mount	Gull Wing	SPST-NO	Standard	-35 °C	85 °C	Non-Illuminated	Off-Mom	50 gf	Top Actuated

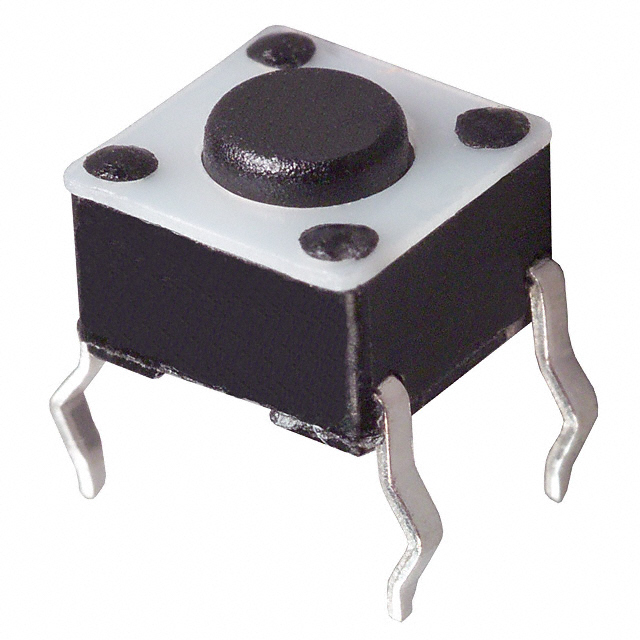

TE Connectivity AMP Connectors FSM2J	0.25 mm	Polyester	100000 Cycles	4.3 mm	6 mm	6 mm	0.05 A 24 VDC	Through Hole	PC Pin	SPST-NO	Standard	-20 ░C	70 °C	Non-Illuminated	Off-Mom	160 gf	Top Actuated
TE Connectivity AMP Connectors FSM2JMTR	0.25 mm	Polyphenylene Sulfide (PPS)	40000 Cycles	5 mm	6 mm	3.5 mm	0.05 A 24 VDC	Surface Mount	J Lead	SPST-NO	Rectangular Button	-35 °C	85 °C	Non-Illuminated	Off-Mom	180 gf	Top Actuated
TE Connectivity AMP Connectors FSM2JELGATR	0.25 mm	Thermoplastic	100000 Cycles	2.5 mm	6.2 mm	6.2 mm	0.05 A 12 VDC	Surface Mount	Gull Wing	SPST-NO	Standard	-35 °C	85 °C	Non-Illuminated	Off-Mom	260 gf	Top Actuated

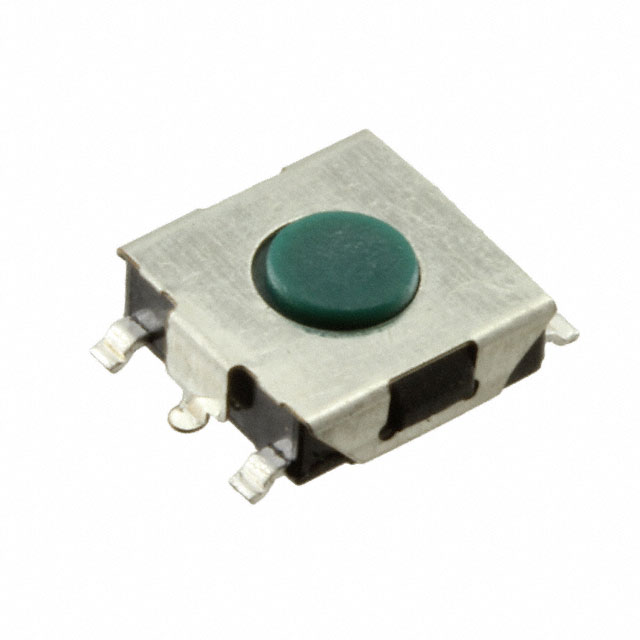

TE Connectivity AMP Connectors FSM2JELGELTR	0.25 mm	Thermoplastic	1000000 Cycles	2.5 mm	6.2 mm	6.2 mm	0.05 A 12 VDC	Surface Mount	Gull Wing	SPST-NO	Standard	-35 °C	85 °C	Non-Illuminated	Off-Mom	100 gf	Top Actuated	Grounding Pin
TE Connectivity AMP Connectors FSM201A	0.3 mm	Thermoplastic	100000 Cycles		12 mm	12 mm	0.05 A 24 VDC	Through Hole	PC Pin	SPST-NO	Standard	-35 °C	85 °C	Non-Illuminated	Off-Mom	260 gf	Top Actuated		8.5 mm
