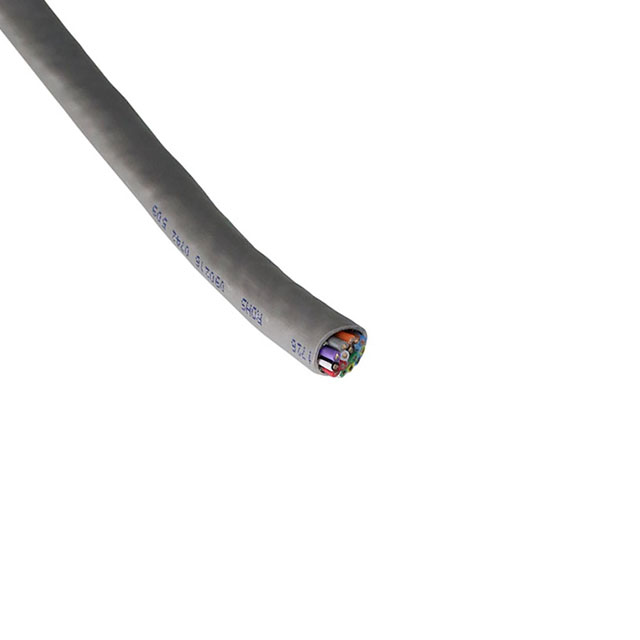

1726 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 15COND 20AWG SHLD
| Part | Shield Material | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Voltage | Wire Gauge | Shield Type | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Number of Conductors | Length [x] | Length [x] | Conductor Insulation | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Copper Tinned | 85 % | 26 | 34 AWG | Multi-Conductor | 600 V | 20 AWG | Braid | Copper Tinned | -20 ░C | 60 °C | Slate | 0.035 in | 0.889 mm | Communication Control | 0.421 in | 10.69 mm | Poly-Vinyl Chloride (PVC) | 15 | 100 ft | 30.5 m | Polyethylene (PE) | ||
ALPHA WIRE | Copper Tinned | 85 % | 26 | 34 AWG | Multi-Conductor | 600 V | 20 AWG | Braid | Copper Tinned | -20 ░C | 60 °C | Slate | 0.035 in | 0.889 mm | Communication Control | 0.421 in | 10.69 mm | Poly-Vinyl Chloride (PVC) | 15 | Polyethylene (PE) | 304.8 m | 1000 ft |
