79233 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

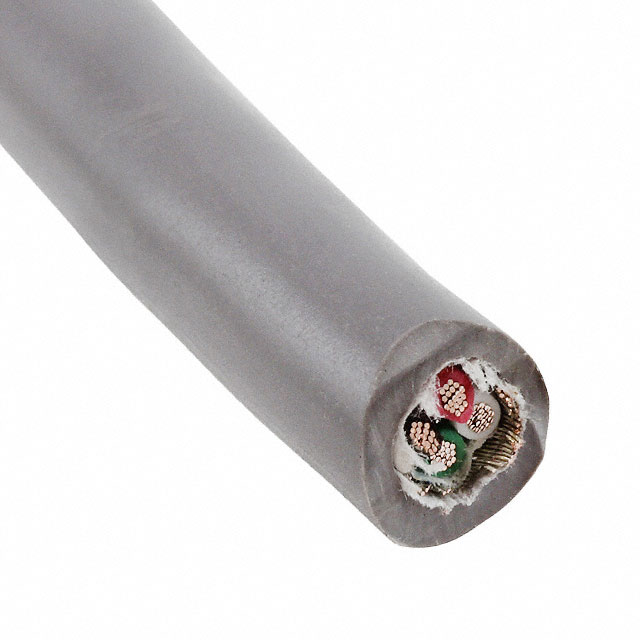

CABLE 4COND 12AWG SHLD
| Part | Shield Type | Number of Conductors | Wire Gauge | Shield Coverage | Conductor Strand [custom] | Conductor Strand [custom] | Ratings | Cable Type | Conductor Material | Features | Voltage | Length | Length | Shield Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket Color | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Conductor Insulation | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Braid Foil | 4 | 12 AWG | 70 % 100 % | 30 AWG | 65 | ISO 10993 | Multi-Conductor | Copper Tinned | Biological Compatibility | 600 V | 1000 ft | 304.8 m | Copper Tinned Suprashield® | 0.889 mm | 0.035 in | Slate | 0.391 " | 9.93 mm | Polyphenylene Ether Modified (mPPE) | Polyphenylene Ether Modified (mPPE) | -40 °C | 105 ░C | ||
ALPHA WIRE | Braid Foil | 4 | 12 AWG | 70 % 100 % | 30 AWG | 65 | ISO 10993 | Multi-Conductor | Copper Tinned | Biological Compatibility | 600 V | Copper Tinned Suprashield® | 0.889 mm | 0.035 in | Slate | 0.391 " | 9.93 mm | Polyphenylene Ether Modified (mPPE) | Polyphenylene Ether Modified (mPPE) | -40 °C | 105 ░C | 30.5 m | 100 ft |
