AS4C128 Series

Catalog

IC DRAM 1GBIT PARALLEL 78FBGA

Part	Package Width	Package Name	Package Length	Operating Temperature (Max)	Operating Temperature (Min)	Mounting Type	Voltage - Supply (Maximum)	Voltage - Supply (Minimum)	Package / Case	Memory Interface (Type)	Access Time	Write Cycle Time - Word	Write Cycle Time - Page	Memory Size	Technology	Memory Type	Memory Depth	Memory Width	Memory Format	Clock Frequency	Voltage - Supply (Range 2 Maximum)	Voltage - Supply (Range 1 Maximum)	Voltage - Supply (Range 2 Minimum)	Voltage - Supply (Range 1 Minimum)

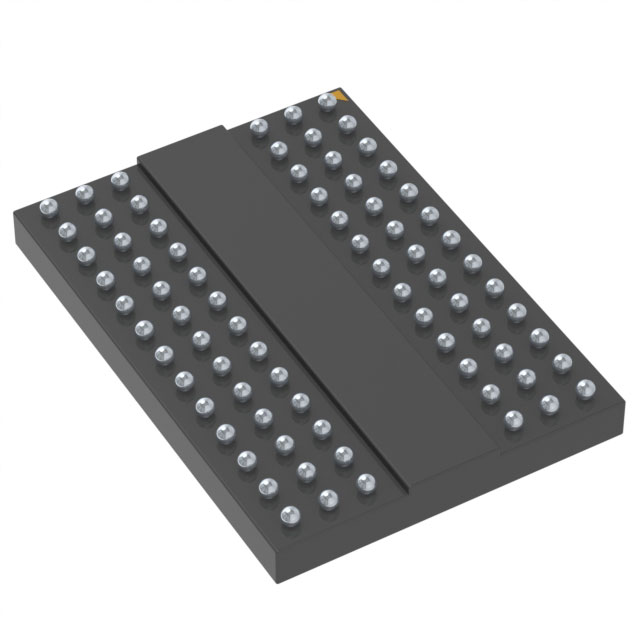

Alliance Memory, Inc. AS4C128M8D3B-12BIN	10.5 mm	78-FBGA	8 mm	95 °C	-40 °C	Surface Mount	1.575 V	1.425 V	78-VFBGA	Parallel	20 ns	15 ns	15 ns	1 Gbit	SDRAM - DDR3	Volatile	128 M	8 bit	DRAM	800 MHz

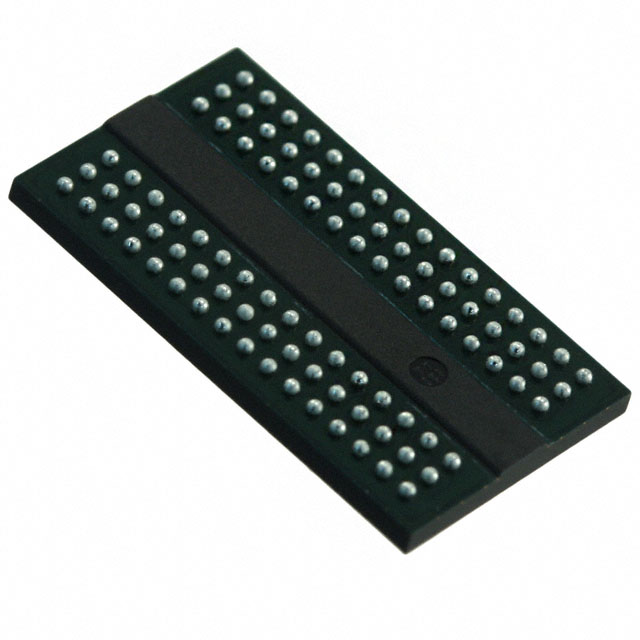

Alliance Memory, Inc. AS4C128M16D3C-93BCN	13 mm	96-FBGA	7.5 mm	95 °C	0 °C	Surface Mount	1.575 V	1.425 V	96-VFBGA	Parallel	20 ns	15 ns	15 ns	2 Gbit	SDRAM - DDR3	Volatile	128 M	16 bit	DRAM	1.066 GHz

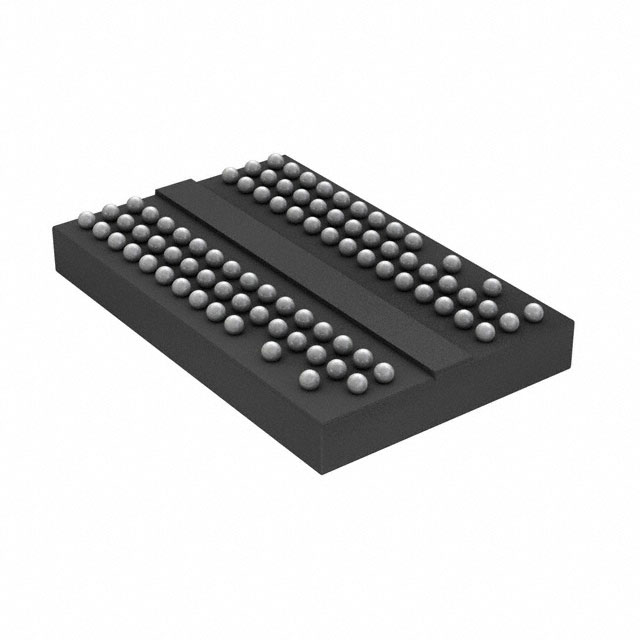

Alliance Memory, Inc. AS4C128M16D2A-25BAN	12.5 mm	84-TFBGA	8 mm	105 °C	-40 °C	Surface Mount	1.9 V	1.7 V	84-TFBGA	SSTL_18	400 ps	15 ns	15 ns	2 Gbit	SDRAM - DDR2	Volatile	128 M	16 bit	DRAM	400 MHz
Alliance Memory, Inc. AS4C128M8D3LC-12BCN	10.5 mm	78-FBGA	7.5 mm	95 °C	0 °C	Surface Mount	1.45 V	1.283 V	78-VFBGA	Parallel	20 ns	15 ns	15 ns	1 Gbit	SDRAM - DDR3L	Volatile	128 M	8 bit	DRAM	800 MHz

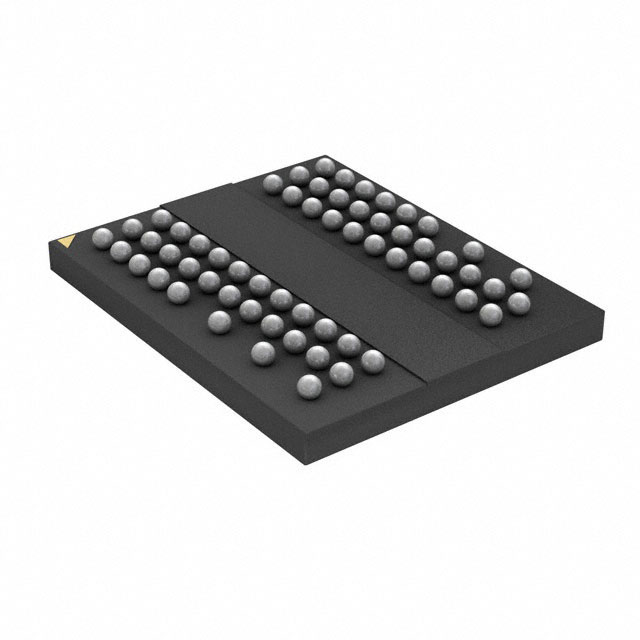

Alliance Memory, Inc. AS4C128M8D2A-25BCNTR	10 mm	60-FBGA	8 mm	85 °C	0 °C	Surface Mount	1.9 V	1.7 V	60-TFBGA	Parallel	400 ps	15 ns	15 ns	1 Gbit	SDRAM - DDR2	Volatile	128 M	8 bit	DRAM	400 MHz
Alliance Memory, Inc. AS4C128M8D1-6TINTR	10.16 mm	66-TSOP II 66-TSSOP	10.16 mm	85 °C	-40 °C	Surface Mount	2.7 V	2.3 V		Parallel	700 ps	15 ns	15 ns	1 Gbit	SDRAM - DDR	Volatile	128 M	8 bit	DRAM	166 MHz

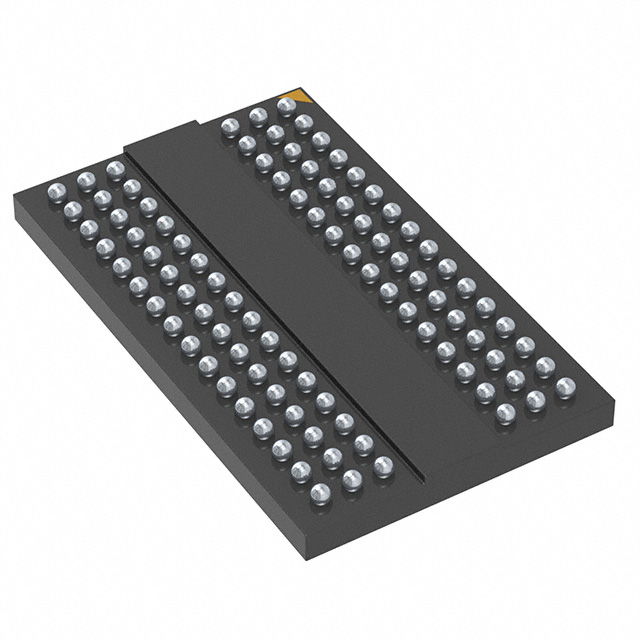

Alliance Memory, Inc. AS4C128M16D3L-12BIN	13 mm	96-FBGA	9 mm	95 °C	-40 °C	Surface Mount	1.45 V	1.283 V	96-TFBGA	Parallel	20 ns	15 ns	15 ns	2 Gbit	SDRAM - DDR3L	Volatile	128 M	16 bit	DRAM	800 MHz

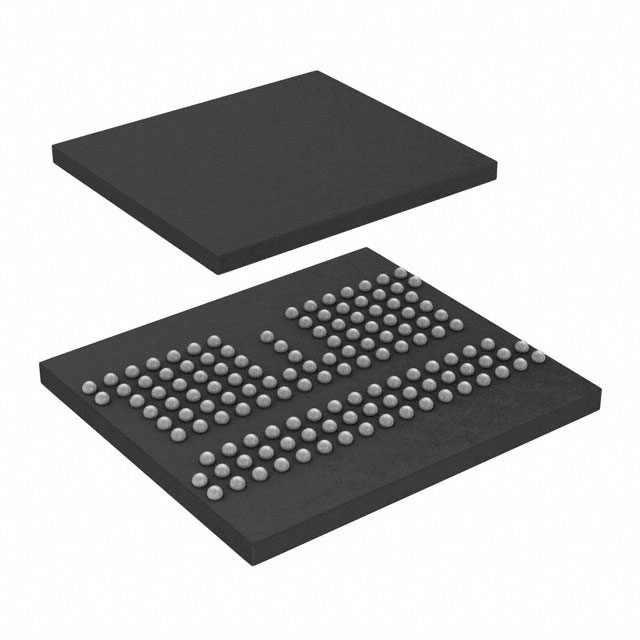

Alliance Memory, Inc. AS4C128M16MD2A-25BCNTR	11.5 mm	134-FBGA	10 mm	85 °C	-30 °C	Surface Mount	1.95 V	1.14 V	134-VFBGA	Parallel		15 ns	15 ns	2 Gbit	SDRAM - Mobile LPDDR2	Volatile	128 M	16 bit	DRAM	400 MHz
Alliance Memory, Inc. AS4C128M16D3LC-12BCNTR	13 mm	96-FBGA	7.5 mm	95 °C	0 °C	Surface Mount	1.45 V	1.283 V	96-VFBGA	Parallel	20 ns	15 ns	15 ns	2 Gbit	SDRAM - DDR3L	Volatile	128 M	16 bit	DRAM	800 MHz

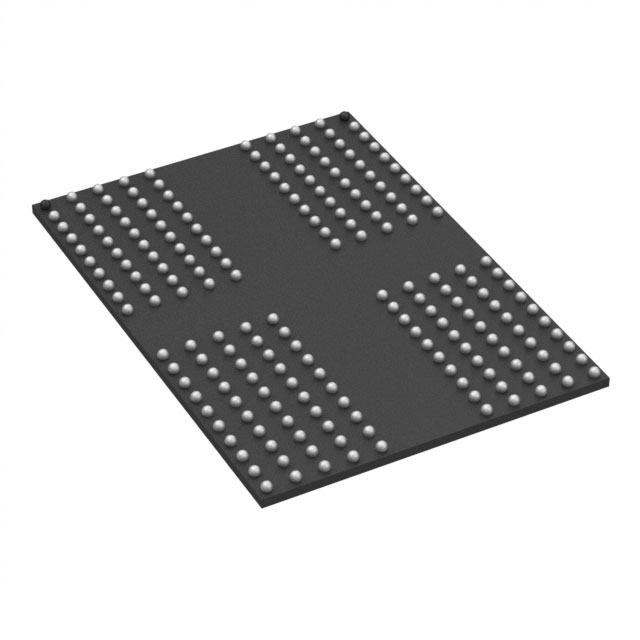

Alliance Memory, Inc. AS4C128M32MD4-062BAN	14.5 mm	200-FBGA	10 mm	105 °C	-40 °C	Surface Mount			200-WFBGA	LVSTL	3.5 ns	18 ns	18 ns	4 Gbit	SDRAM - Mobile LPDDR4	Volatile	128 M	32 bit	DRAM	1.6 GHz	1.95 V	1.17 V	1.7 V	1.06 V
