MAX4707 Series

Catalog

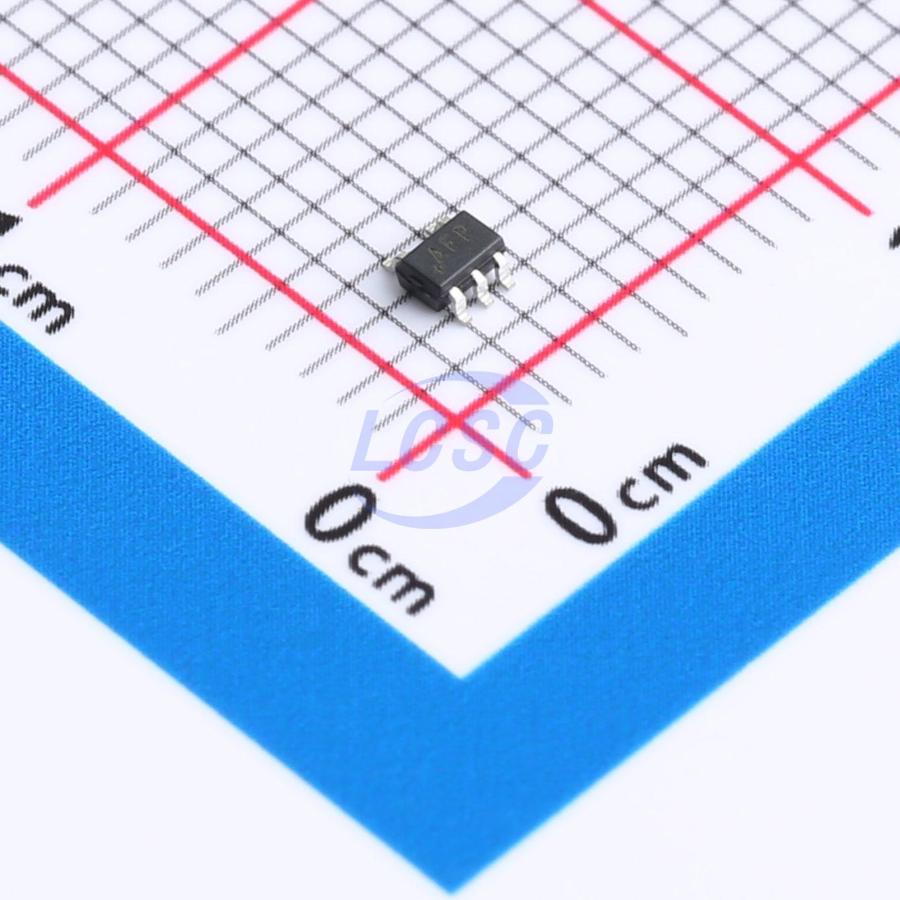

3.5Ω 1 SPST(SPST) SC-70-5 ANALOG SWITCHES, MULTIPLEXERS ROHS

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	On-State Resistance (Max) [Max]	Current - Leakage (IS(off)) (Max)	Package / Case	Number of Circuits	Voltage - Supply, Single (V+) [Min]	Voltage - Supply, Single (V+) [Max]	Multiplexer/Demultiplexer Circuit	Channel Capacitance (CS(off), CD(off)) [custom]	Channel Capacitance (CS(off), CD(off)) [custom]	Switch Circuit	Charge Injection	-3db Bandwidth	Supplier Device Package	Switch Time (Ton, Toff) (Max) [custom]	Switch Time (Ton, Toff) (Max) [custom]	Channel-to-Channel Matching (ΔRon)
Analog Devices Inc./Maxim Integrated MAX4707EXK+T	85 °C	-40 °C	Surface Mount	3 Ohms	1 nA	5-TSSOP SC-70-5 SOT-353	1	1.8 V	5.5 V	1:1	17 pF	17 pF	SPST - NO	5 pC	190 MHz	SC-70-5	20 ns	15 ns
Analog Devices Inc./Maxim Integrated MAX4707ELT+T	85 °C	-40 °C	Surface Mount	3 Ohms	1 nA	6-WFDFN	1	1.8 V	5.5 V	1:1	17 pF	17 pF	SPST - NO	5 pC	190 MHz	6-µDFN (1.5x1)	20 ns	15 ns	600 mOhm
