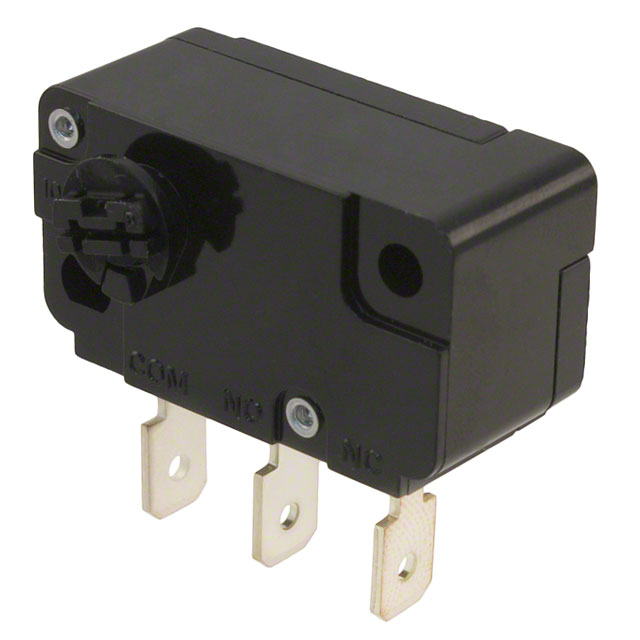

D2MC Series

Catalog

SWITCH SNAP ACTION SPDT 5A 125V

Part	Electrical Life	Current Rating (Amps)	Mechanical Life	Termination Style	Termination Style	Termination Style	Overtravel	Differential Travel	Ingress Protection	Switch Function	Release Force	Voltage Rating - AC	Pretravel	Actuator Type	Operating Force	Circuit	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage Rating - DC
Omron Electronics Inc-EMC Div D2MC-5E	100000 Cycles	5 A	10000000 Cycles	0.205 in	5.2 mm	Quick Connect	17 °	3 °	IP40	On-Mom	0.006 gfm	125 V	21 °	Without	0.051 gfm	SPDT	-25 °C	80 C	Chassis Mount
Omron Electronics Inc-EMC Div D2MC-01E	100000 Cycles	500 mA	10000000 Cycles	0.205 in	5.2 mm	Quick Connect	17 °	3 °	IP40	On-Mom	0.006 gfm	125 V	21 °	Without	0.051 gfm	SPDT	-25 °C	80 C	Chassis Mount	30 V

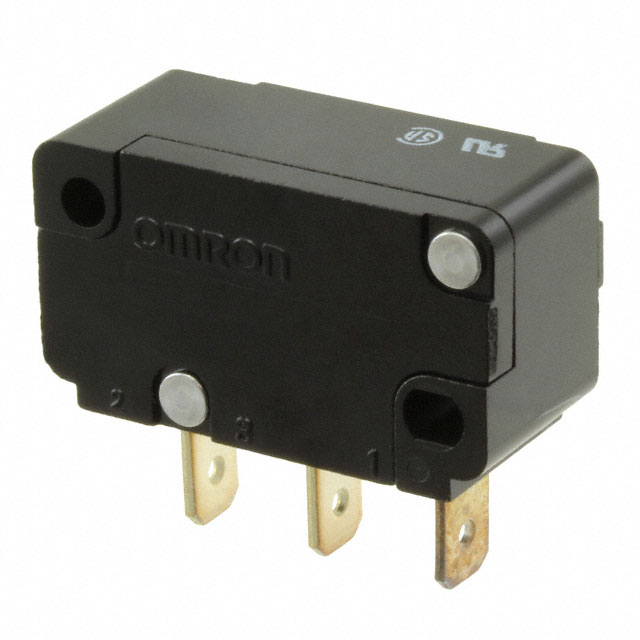

Omron Electronics Inc-EMC Div D2MC-5H	100000 Cycles	5 A	10000000 Cycles	0.205 in	5.2 mm	Quick Connect	17 °	3 °	IP40	On-Mom	0.013 gfm	125 V	21 °	Without	0.102 gfm	SPDT	-25 °C	80 C	Chassis Mount

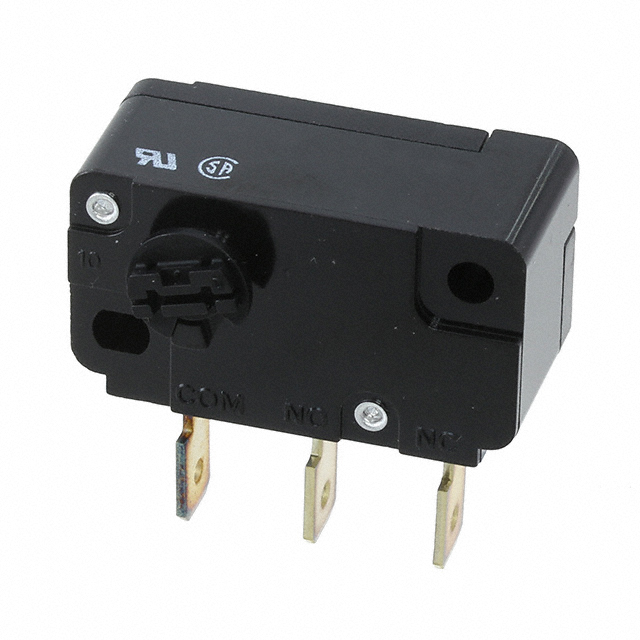

Omron Electronics Inc-EMC Div D2MC-5F	100000 Cycles	5 A	10000000 Cycles	0.205 in	5.2 mm	Quick Connect	17 °	3 °	IP40	On-Mom	0.009 gfm	125 V	21 °	Without	0.076 gfm	SPDT	-25 °C	80 C	Chassis Mount
Omron Electronics Inc-EMC Div D2MC-01EL	100000 Cycles	500 mA	10000000 Cycles	0.205 in	5.2 mm	Quick Connect	17 °	3 °	IP40	On-Mom	0.006 gfm	125 V	21 °	Without	0.051 gfm	SPDT	-25 °C	80 C	Chassis Mount	30 V
Omron Electronics Inc-EMC Div D2MC-01ELA	100000 Cycles	500 mA	10000000 Cycles	0.205 in	5.2 mm	Quick Connect	17 °	3 °	IP40	On-Mom	0.006 gfm	125 V	21 °	Without	0.051 gfm	SPDT	-25 °C	80 C	Chassis Mount	30 V
