UW Series

Catalog

TERMINAL BLOCK TOOLS & ACCESSORIES UW 25-F

Part	Color	Type	Width	Width	Positions Per Level	Features	Panel Mount Type	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Number of Levels	Wire Gauge [Min]	Wire Gauge [Max]	Front Panel Wire Connection	Rear Panel Wire Connection	Current - UL	Rear Panel Wire Connection	Rear Panel Wire Connection

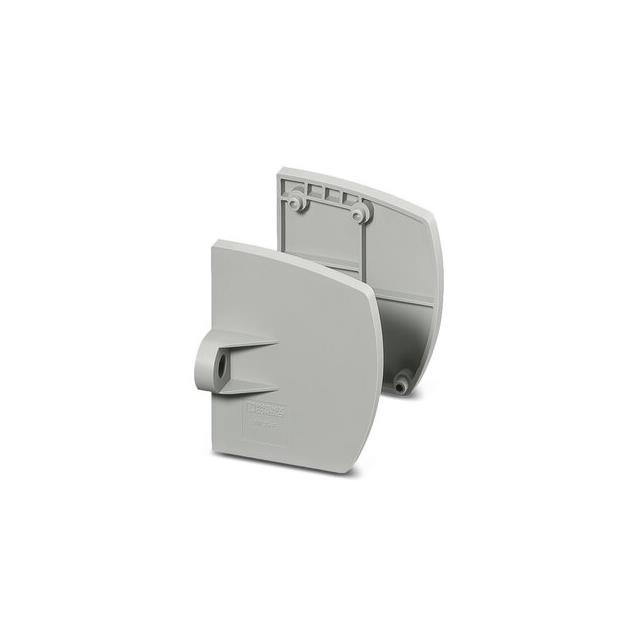

Phoenix Contact 3074541	Gray	Flange Cover
Phoenix Contact 3073474	Gray		10.1 mm	0.398 "	1	Engagement Pin	2 Piece	0.157 in	1 mm	4 mm	0.039 in	1	6 AWG	20 AWG	Bolt/Screw Clamp - Wire Entry Angled to Panel	PCB Pins - Straight	5 A
Phoenix Contact 3073319	Gray		8.1 mm	0.319 "	1		2 Piece	0.157 in	1 mm	4 mm	0.039 in	1	10 AWG	24 AWG	Bolt/Screw Clamp - Wire Entry 90° to Panel	Bolt/Screw Clamp - Wire Entry 90° to Panel	30 A
Phoenix Contact 3073322	Gray		10.1 mm	0.398 "	1		2 Piece	0.157 in	1 mm	4 mm	0.039 in	1	6 AWG	20 AWG	Bolt/Screw Clamp - Wire Entry 90° to Panel	Bolt/Screw Clamp - Wire Entry 90° to Panel	65 A
Phoenix Contact 3056996	Gray		8.1 mm	0.319 "	1		Screw Mount - Rear Flange	0.157 in	1 mm	4 mm	0.039 in	1	10 AWG	24 AWG	Bolt/Screw Clamp - Wire Entry Angled to Panel	Quick Connect	5 A	6.35 mm	0.25 in

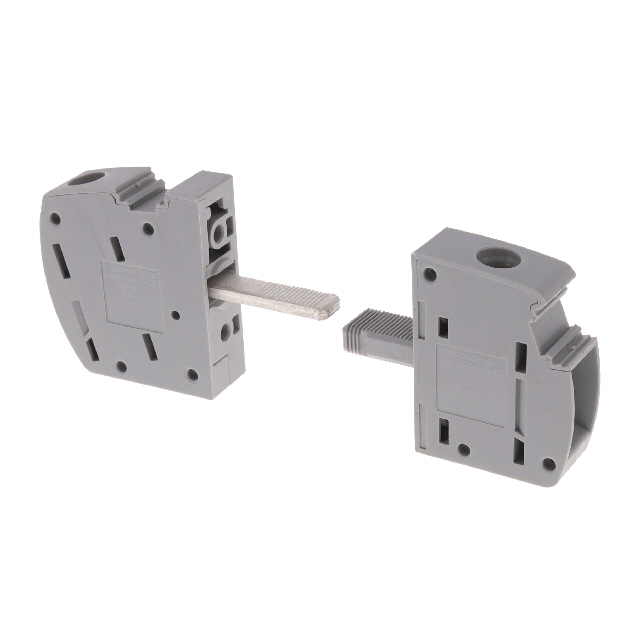

Phoenix Contact 3073348	Gray		12.1 mm	0.476 in	1		2 Piece	0.236 in	1 mm	6 mm	0.039 in	1	4 AWG	10 AWG	Bolt/Screw Clamp - Wire Entry 90° to Panel	Bolt/Screw Clamp - Wire Entry 90° to Panel	85 A
