ACB85 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN EDGE DUAL FML 170POS 0.050

Part	Material - Insulation	Contact Type	Contact Material	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Read Out	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Color	Card Type	Pitch	Pitch	Card Thickness	Card Thickness	Number of Rows [custom]	Gender	Number of Positions/Bay/Row [custom]	Mounting Type	Flange Feature	Termination	Features	Flange Feature [diameter]	Flange Feature [diameter]
Sullins Connector Solutions ACB85DHHT	Polyphenylene Sulfide (PPS)	Hairpin Bellows	Beryllium Copper	170	150 °C	-65 ░C	Dual	Gold	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	1.57 mm	0.062 in	2	Female	85	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Solder Staggered
Sullins Connector Solutions ACB85DHLN	Polyphenylene Sulfide (PPS)	Hairpin Bellows	Beryllium Copper	170	150 °C	-65 ░C	Dual	Gold	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	1.57 mm	0.062 in	2	Female	85	Through Hole		Solder
Sullins Connector Solutions ACB85DYFR	Polyphenylene Sulfide (PPS)	Cantilever	Beryllium Copper	170	150 °C	-65 ░C	Dual	Gold	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	1.57 mm	0.062 in	2	Female	85	Surface Mount		Solder	Board Lock
Sullins Connector Solutions ACB85DYHR	Polyphenylene Sulfide (PPS)	Cantilever	Beryllium Copper	170	150 °C	-65 ░C	Dual	Gold	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	1.57 mm	0.062 in	2	Female	85	Through Hole		Solder Staggered	Board Lock
Sullins Connector Solutions ACB85DHAN	Polyphenylene Sulfide (PPS)	Hairpin Bellows	Beryllium Copper	170	150 °C	-65 ░C	Dual	Gold	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	1.57 mm	0.062 in	2	Female	85	Right Angle Through Hole		Solder Staggered
Sullins Connector Solutions ACB85DYHT	Polyphenylene Sulfide (PPS)	Cantilever	Beryllium Copper	170	150 °C	-65 ░C	Dual	Gold	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	1.57 mm	0.062 in	2	Female	85	Through Hole	4-40 Flush Mount Threaded Insert Top Opening	Solder Staggered

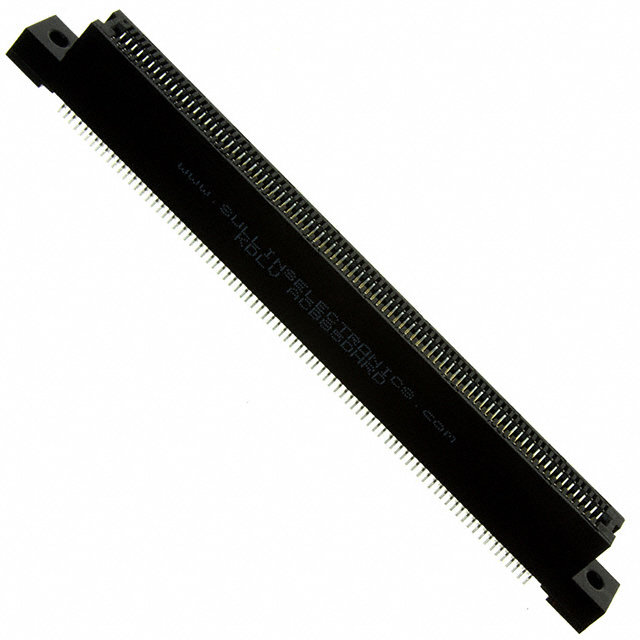

Sullins Connector Solutions ACB85DHRD	Polyphenylene Sulfide (PPS)	Hairpin Bellows	Beryllium Copper	170	150 °C	-65 ░C	Dual	Gold	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	1.57 mm	0.062 in	2	Female	85	Board Edge Straddle Mount	Flush Mount Top Opening Unthreaded	Solder	Card Extender	3.18 mm	0.125 "
Sullins Connector Solutions ACB85DHNN	Polyphenylene Sulfide (PPS)	Hairpin Bellows	Beryllium Copper	170	150 °C	-65 ░C	Dual	Gold	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	1.57 mm	0.062 in	2	Female	85	Through Hole		Solder
Sullins Connector Solutions ACB85DYFD	Polyphenylene Sulfide (PPS)	Cantilever	Beryllium Copper	170	150 °C	-65 ░C	Dual	Gold	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	1.57 mm	0.062 in	2	Female	85	Surface Mount	Flush Mount Top Opening Unthreaded	Solder		3.18 mm	0.125 "
Sullins Connector Solutions ACB85DHBS	Polyphenylene Sulfide (PPS)	Hairpin Bellows	Beryllium Copper	170	150 °C	-65 ░C	Dual	Gold	30 Áin	0.76 Ám	Black	Non Specified - Dual Edge	0.05 in	1.27 mm	1.57 mm	0.062 in	2	Female	85	Right Angle Through Hole	Side Mount Opening Unthreaded	Solder Staggered		3.18 mm	0.125 "
