P9K80A-4 Series
Manufacturer: Rosenberger
Beta
⌘K

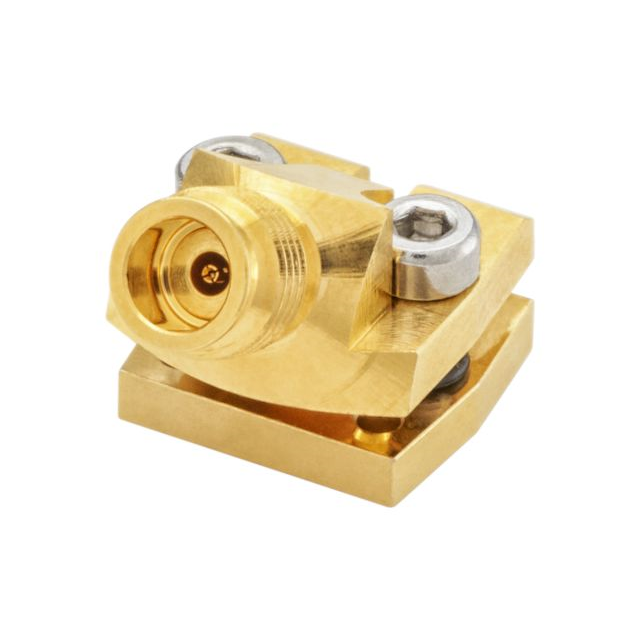

CONN RECEPT RPC-1.35 PCB 30 DEGR
| Part | Dielectric Material | Body Finish | Center Contact Plating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Includes | Mating Cycles | Voltage Rating | Fastening Type | Shield Termination | Mounting Type | Mounting Type | Connector Style [x] | Connector Type | Features | Frequency - Max [Max] | Number of Ports | Impedance | Center Contact Material | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rosenberger | Polyetheretherketone (PEEK) | Gold | Gold | Beryllium Copper | -55 C | 125 °C | 1 Connector 2 Screws | 3000 | 150 VDC | Threaded | Screw | Right Angle Surface Mount | 30 ° Angle | 1.35 mm | Female Socket Jack | Mounting Hardware | 90 GHz | 1 | 50 Ohms | Beryllium Copper | Gold |
