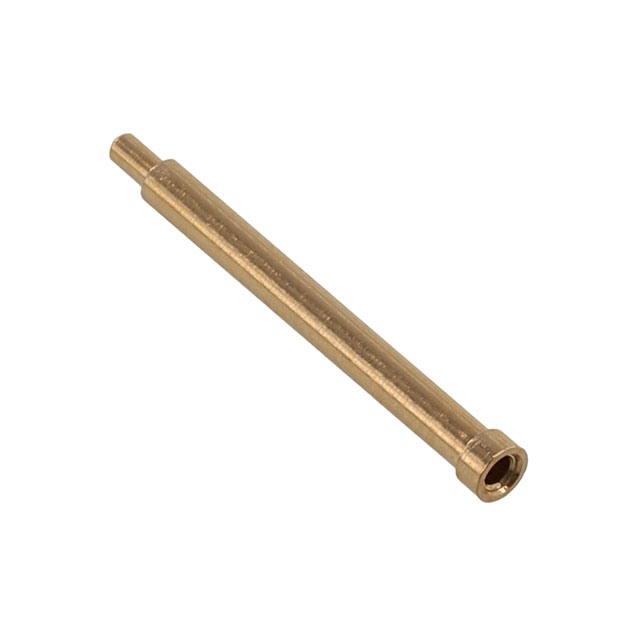

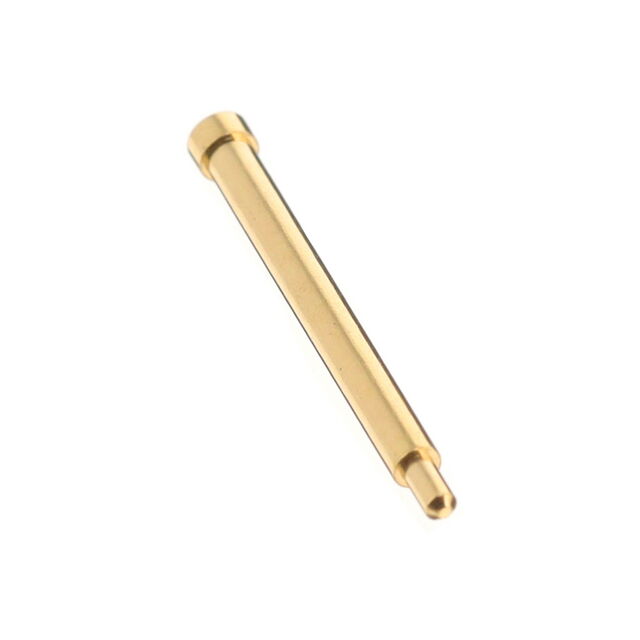

0309-2 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

CONN PIN RCPT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Finish	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Tail Diameter [diameter]	Tail Diameter [diameter]	Length - Overall [x]	Length - Overall [x]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Type	Accepts Square Pin Size	Accepts Square Pin Size
Mill-Max Manufacturing Corp. 0309-2-15-80-47-80-10-0	-55 C	125 °C	Solder	0.078 "	1.98 mm	Tin	0.051 in	1.3 mm	1.02 mm	0.04 "	0.7 in	17.78 mm	Beryllium Copper	200 Áin	5.08 Ám	0.042 in	1.07 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	Standard Tail	0.025 in	0.64 mm
Mill-Max Manufacturing Corp. 0309-2-15-01-47-14-10-0	-55 C	125 °C	Solder	0.078 "	1.98 mm	Gold	0.051 in	1.3 mm	1.02 mm	0.04 "	0.7 in	17.78 mm	Beryllium Copper	10 Áin	0.25 Ám	0.042 in	1.07 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	Standard Tail	0.025 in	0.64 mm
Mill-Max Manufacturing Corp. 0309-2-15-15-47-27-10-0	-55 C	125 °C	Solder	0.078 "	1.98 mm	Gold	0.051 in	1.3 mm	1.02 mm	0.04 "	0.7 in	17.78 mm	Beryllium Copper	30 Áin	0.76 Ám	0.042 in	1.07 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	Standard Tail	0.025 in	0.64 mm
Mill-Max Manufacturing Corp. 0309-2-15-80-47-14-10-0	-55 C	125 °C	Solder	0.078 "	1.98 mm	Gold	0.051 in	1.3 mm	1.02 mm	0.04 "	0.7 in	17.78 mm	Beryllium Copper	10 Áin	0.25 Ám	0.042 in	1.07 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	Standard Tail	0.025 in	0.64 mm
Mill-Max Manufacturing Corp. 0309-2-15-01-47-27-10-0	-55 C	125 °C	Solder	0.078 "	1.98 mm	Gold	0.051 in	1.3 mm	1.02 mm	0.04 "	0.7 in	17.78 mm	Beryllium Copper	30 Áin	0.76 Ám	0.042 in	1.07 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	Standard Tail	0.025 in	0.64 mm
Mill-Max Manufacturing Corp. 0309-2-15-15-47-14-10-0	-55 C	125 °C	Solder	0.078 "	1.98 mm	Gold	0.051 in	1.3 mm	1.02 mm	0.04 "	0.7 in	17.78 mm	Beryllium Copper	10 Áin	0.25 Ám	0.042 in	1.07 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	Standard Tail	0.025 in	0.64 mm
Mill-Max Manufacturing Corp. 0309-2-15-80-47-27-10-0	-55 C	125 °C	Solder	0.078 "	1.98 mm	Gold	0.051 in	1.3 mm	1.02 mm	0.04 "	0.7 in	17.78 mm	Beryllium Copper	30 Áin	0.76 Ám	0.042 in	1.07 mm	0.64 mm	0.037 in	0.94 mm	0.025 in	Standard Tail	0.025 in	0.64 mm
