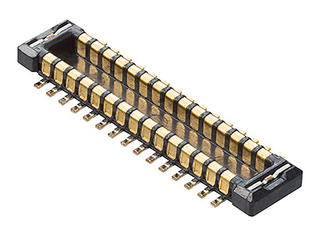

SlimStack Board-to-Board Plug, 0.40mm Pitch, B8 Series, 0.80mm Mated Height, 2.50mm Mated Width, 10 Circuits
SlimStack Board-to-Board Plug, 0.40mm Pitch, B8 Series, 0.80mm Mated Height, 2.50mm Mated Width, 10 Circuits
SlimStack Board-to-Board Plug, 0.40mm Pitch, B8 Series, 0.80mm Mated Height, 2.50mm Mated Width, 10 Circuits
| Part | Number of Positions | Mated Stacking Heights | Contact Finish | Connector Type | Number of Rows | Features | Height Above Board | Height Above Board | Pitch [x] | Pitch [x] | Mounting Type | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | 24 | 0.8 mm | Gold | Outer Shroud Contacts Plug | 2 | Solder Retention | 0.027 " | 0.68 mm | 0.016 in | 0.4 mm | Surface Mount | ||
Molex | 34 | 0.8 mm | Gold | Outer Shroud Contacts Plug | 2 | Solder Retention | 0.027 " | 0.68 mm | 0.016 in | 0.4 mm | Surface Mount | ||
 Molex | 40 | 0.8 mm | Gold | Outer Shroud Contacts Plug | 2 | Solder Retention | 0.027 " | 0.68 mm | 0.016 in | 0.4 mm | Surface Mount | 4 Áin | 0.1 Ám |
 Molex | 10 | 0.8 mm | Gold | Outer Shroud Contacts Plug | 2 | Solder Retention | 0.027 " | 0.68 mm | 0.016 in | 0.4 mm | Surface Mount | 4 Áin | 0.1 Ám |
Molex | 34 | 0.8 mm | Gold | Outer Shroud Contacts Plug | 2 | Solder Retention | 0.027 " | 0.68 mm | 0.016 in | 0.4 mm | Surface Mount | 4 Áin | 0.1 Ám |
