725-082 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 82POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Number of Positions/Bay/Row	Gender	Mounting Type	Contact Type	Color	Termination	Contact Material	Number of Rows [custom]	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Card Thickness [Max]	Card Thickness [Min]	Read Out	Contact Finish	Card Type	Pitch	Pitch

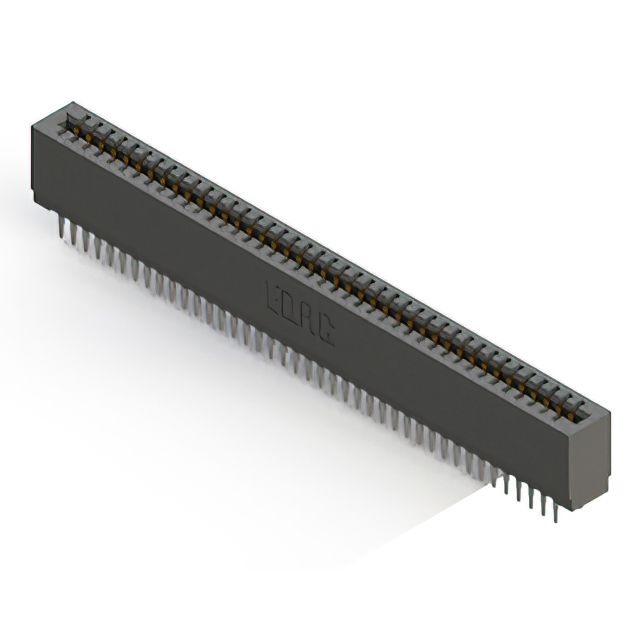

EDAC Inc. 725-082-525-201	2	Polyester Thermoplastic	41	Female	Through Hole	Cantilever	Black	Press-Fit	Copper Alloy	2	82	-40 C	105 ░C	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Gold	Non Specified - Dual Edge	0.1 "	2.54 mm
EDAC Inc. 725-082-540-201	2	Polyester Thermoplastic	41	Female	Through Hole	Cantilever	Black	Press-Fit Wire Wrap	Copper Alloy	2	82	-40 C	105 ░C	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Gold	Non Specified - Dual Edge	0.1 "	2.54 mm
EDAC Inc. 725-082-560-201	2	Polyester Thermoplastic	41	Female	Through Hole	Cantilever Make Before Break	Black	Press-Fit	Copper Alloy	2	82	-40 C	105 ░C	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Gold	Non Specified - Dual Edge	0.1 "	2.54 mm
EDAC Inc. 725-082-522-201	2	Polyester Thermoplastic	41	Female	Through Hole	Cantilever	Black	Press-Fit	Copper Alloy	2	82	-40 C	105 ░C	30 Áin	0.76 Ám	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	Gold	Non Specified - Dual Edge	0.1 "	2.54 mm
