ATS-TI1 Series

Manufacturer: Advanced Thermal Solutions Inc.

Catalog

HEAT SINK FOR TI MOD #TAS5614PHD

Part	Material Finish	Thermal Resistance @ Forced Air Flow	Width [x]	Width [x]	Material	Length	Length	Type	Shape [custom]	Shape [custom]	Fin Height [z]	Fin Height [z]	Attachment Method	Length [x]	Length [x]	Fin Height	Fin Height

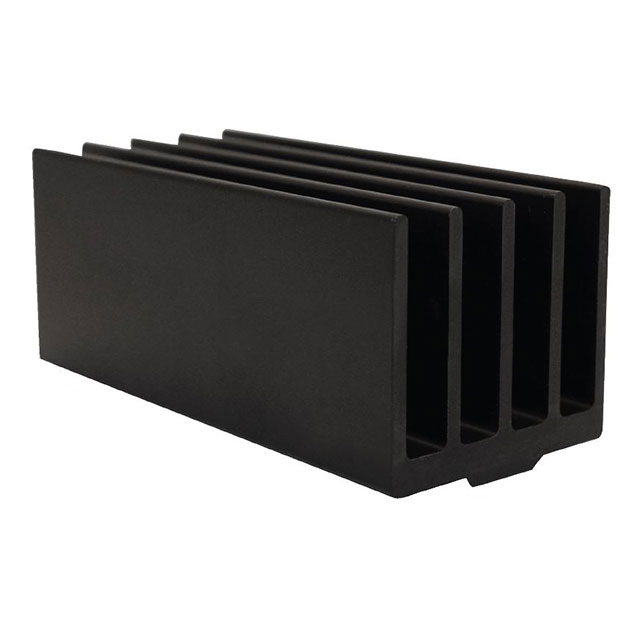

Advanced Thermal Solutions Inc. ATS-TI10P-519-C1-R1	Black Anodized	2.2 °C/W	36 mm	1.417 in	Aluminum	3.071 in	78 mm	Top Mount	Rectangular	Fins	35.6 mm	1.402 in	Bolt On
Advanced Thermal Solutions Inc. ATS-TI10P-525-C1-R0

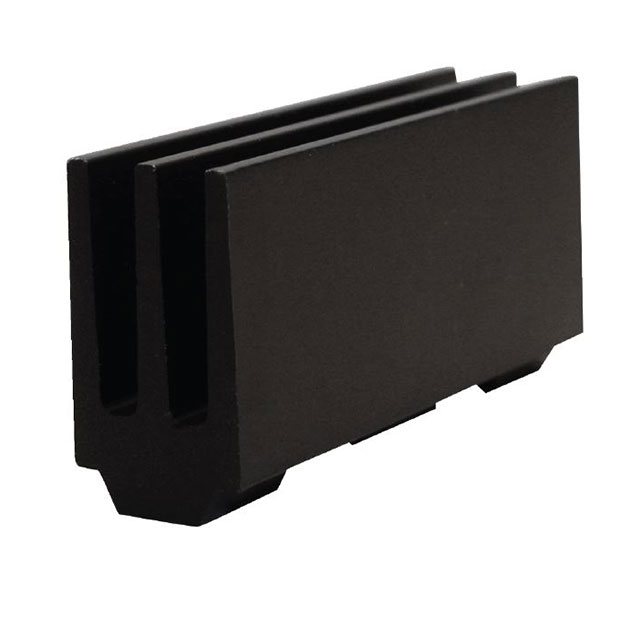

Advanced Thermal Solutions Inc. ATS-TI10P-521-C1-R0	Black Anodized	8.5 °C/W	13.89 mm	0.547 in	Aluminum			Top Mount	Rectangular	Fins			Bolt On	50 mm	1.969 in	25 mm	0.984 in

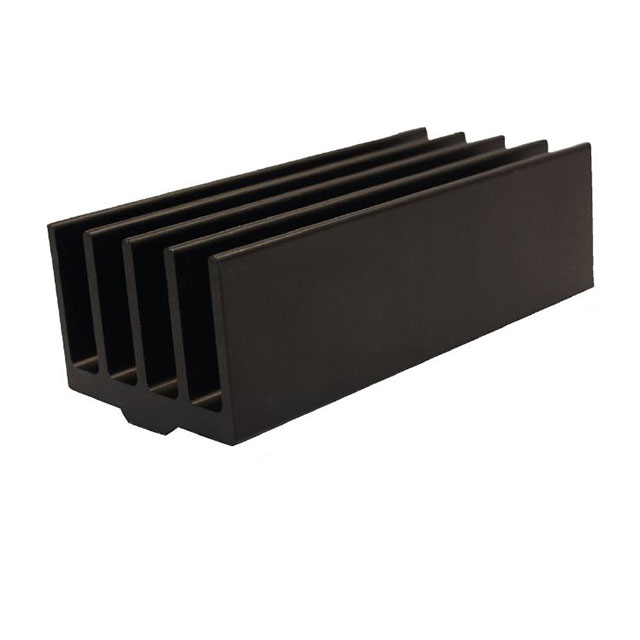

Advanced Thermal Solutions Inc. ATS-TI10P-518-C1-R1	Black Anodized	3 °C/W	36 mm	1.417 in	Aluminum	3.071 in	78 mm	Top Mount	Rectangular	Fins	28.09 mm	1.106 in	Bolt On

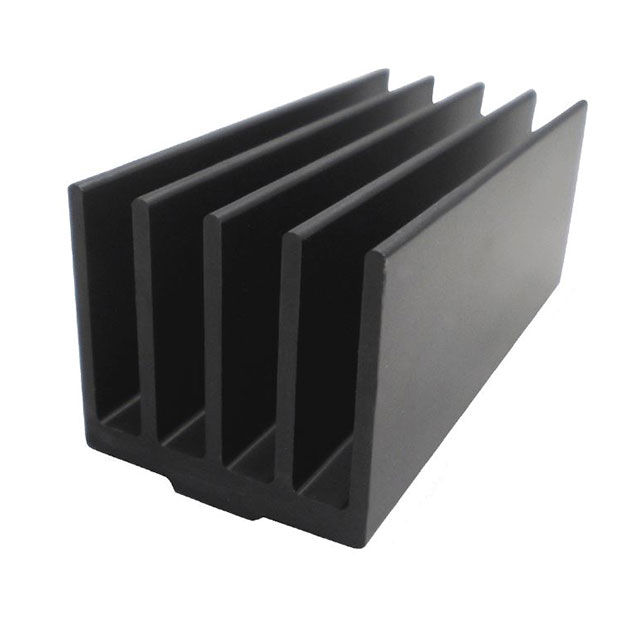

Advanced Thermal Solutions Inc. ATS-TI10P-519-C1-R2	Black Anodized	2.2 °C/W	36 mm	1.417 in	Aluminum	3.071 in	78 mm	Top Mount	Rectangular	Fins	35.6 mm	1.402 in	Bolt On

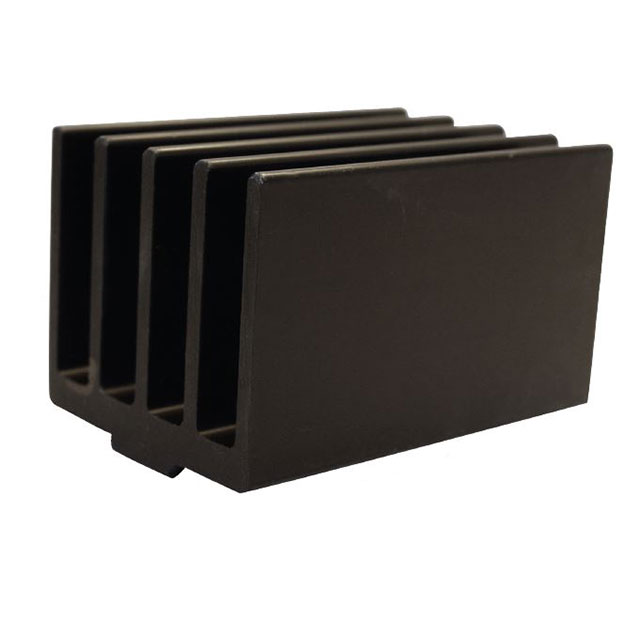

Advanced Thermal Solutions Inc. ATS-TI1OP-519-C1-R3	Black Anodized	2.2 °C/W	36 mm	1.417 in	Aluminum	3.071 in	78 mm	Top Mount	Rectangular	Fins	35.6 mm	1.402 in	Bolt On
Advanced Thermal Solutions Inc. ATS-TI1OP-563-C1-R0	Black Anodized	2.7 °C/W	36 mm	1.417 in	Aluminum	2.126 in	54 mm	Top Mount	Rectangular	Fins	35.6 mm	1.402 in	Bolt On
Advanced Thermal Solutions Inc. ATS-TI1OP-518-C1-R0	Black Anodized	3 °C/W	36 mm	1.417 in	Aluminum	3.071 in	78 mm	Top Mount	Rectangular	Fins	28.09 mm	1.106 in	Bolt On

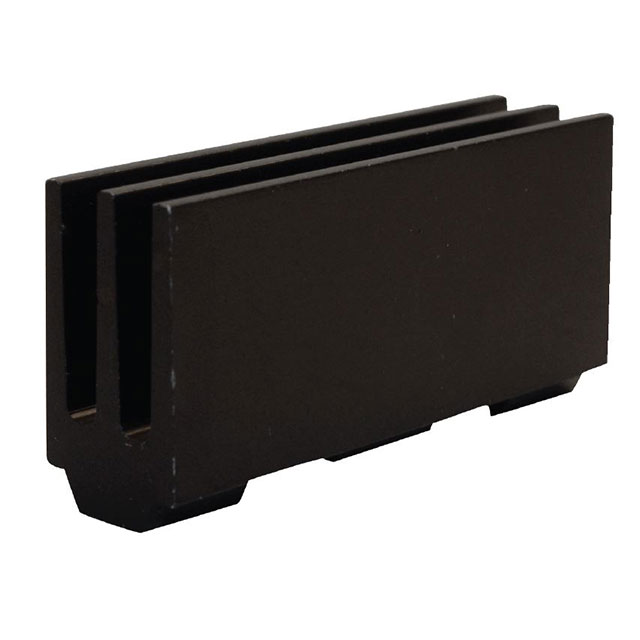

Advanced Thermal Solutions Inc. ATS-TI10P-521-C2-R0	Black Anodized	8.5 °C/W	13.89 mm	0.547 in	Aluminum			Top Mount	Rectangular	Fins			Bolt On	50 mm	1.969 in	25 mm	0.984 in

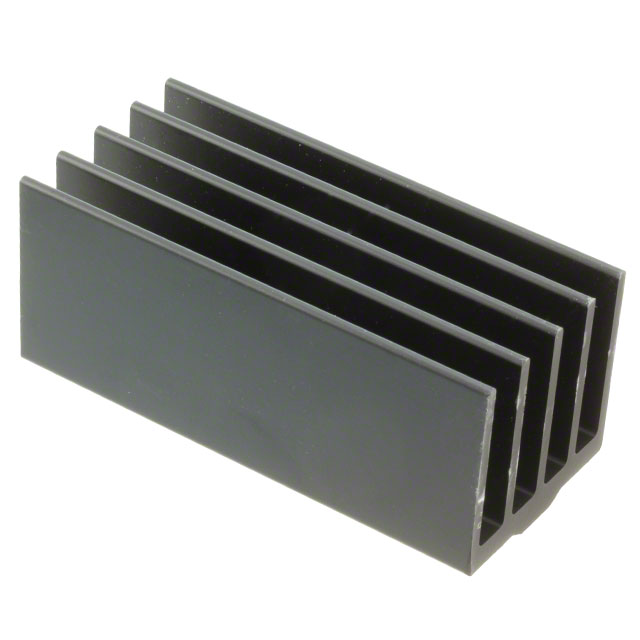

Advanced Thermal Solutions Inc. ATS-TI1OP-519-C1-R0	Black Anodized	2.2 °C/W	36 mm	1.417 in	Aluminum	3.071 in	78 mm	Top Mount	Rectangular	Fins	35.6 mm	1.402 in	Bolt On
