SIN-21T Series
Manufacturer: JST Sales America Inc.
Beta
⌘K
CONN TERM WTB 18-22AWG TIN
| Part | Wire Gauge [Max] | Wire Gauge [Min] | Hole Diameter [diameter] | Hole Diameter [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Terminal Type | Length - Overall | Length - Overall | Contact Finish | Contact Material | Length - Overall [x] | Length - Overall [x] | Insulation Diameter [Min] | Insulation Diameter [Min] | Insulation Diameter [Max] | Insulation Diameter [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

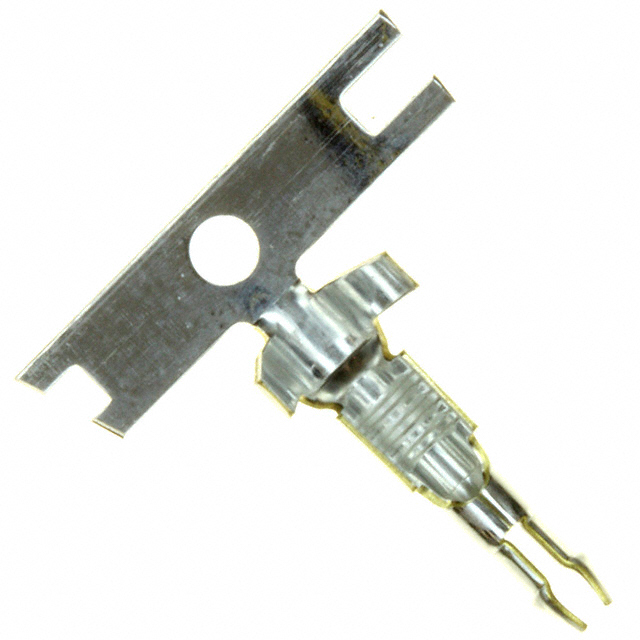

 JST Sales America Inc. | 22 AWG | 17.5 AWG | 0.071 in | 1.8 mm | 1.5 mm | 0.059 in | 0.118 " | 3 mm | Through Board | 7.59 mm | 0.299 in | Tin | Brass | ||||||

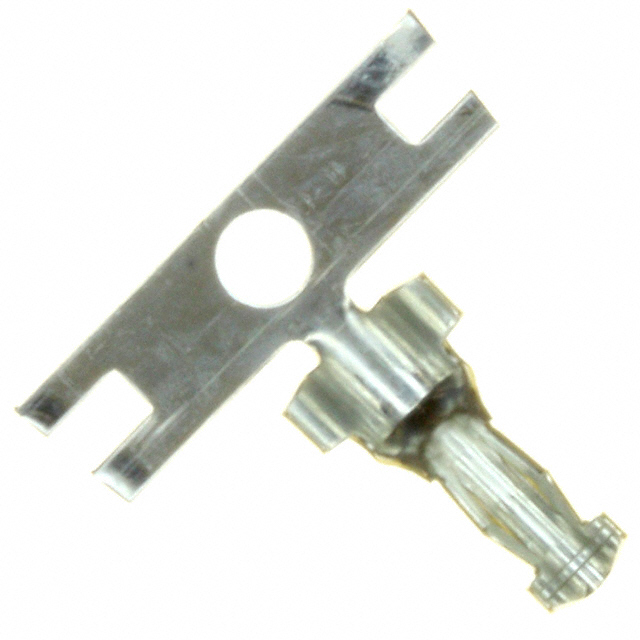

 JST Sales America Inc. | 22 AWG | 17.5 AWG | 0.071 in | 1.8 mm | Through Board | Tin | Brass | 0.496 in | 12.6 mm | 0.067 in | 1.7 mm | 3.81 mm | 0.15 in |
