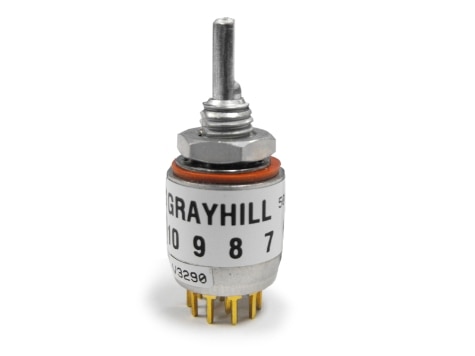

51KPT30 Series
Manufacturer: Grayhill Inc.
Beta
⌘K
ROTARY SWITCHES 51KPT30-01-2-06S
| Part | Depth Behind Panel [z] | Contact Timing | Circuit per Deck | Actuator Length [x] | Voltage Rating - DC | Number of Decks [custom] | Angle of Throw | Number of Positions | Contact Finish | Index Stops | Current Rating (Amps) | Features | Voltage Rating - AC | Actuator Type | Termination Style | Number of Poles per Deck | Mounting Type | Panel Cutout Dimensions [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Grayhill Inc. | 14.63 mm | Shorting (MBB) | DP6T | 9.53 mm | 28 V | 1 | 30 ° | 6 | Gold | Fixed | 150 mA 200 mA | Process Sealed | 115 V | Flatted (6.35mm Dia) | PC Pin | 2 | Panel Mount Through Hole | |
 Grayhill Inc. | 14.63 mm | Shorting (MBB) | SP6T | 9.53 mm | 28 V | 1 | 30 ° | 6 | Gold | Fixed | 150 mA 200 mA | Process Sealed | 115 V | Flatted (6.35mm Dia) | PC Pin | 1 | Panel Mount Through Hole | |
Grayhill Inc. | 14.63 mm | Shorting (MBB) | SP5T | 9.53 mm | 28 V | 1 | 30 ° | 5 | Gold | Fixed | 150 mA 200 mA | Process Sealed | 115 V | Flatted (6.35mm Dia) | PC Pin | 1 | Panel Mount Through Hole | 9.65 mm |
