745-016 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE SINGLE FML 16POS 0.100

Part	Termination Rows	Material - Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Number of Positions/Bay/Row	Color	Contact Finish	Contact Material	Mounting Type	Termination	Gender	Number of Positions	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Card Thickness [Max]	Card Thickness [Min]	Read Out	Pitch	Pitch	Termination Rows [custom]	Number of Rows [custom]

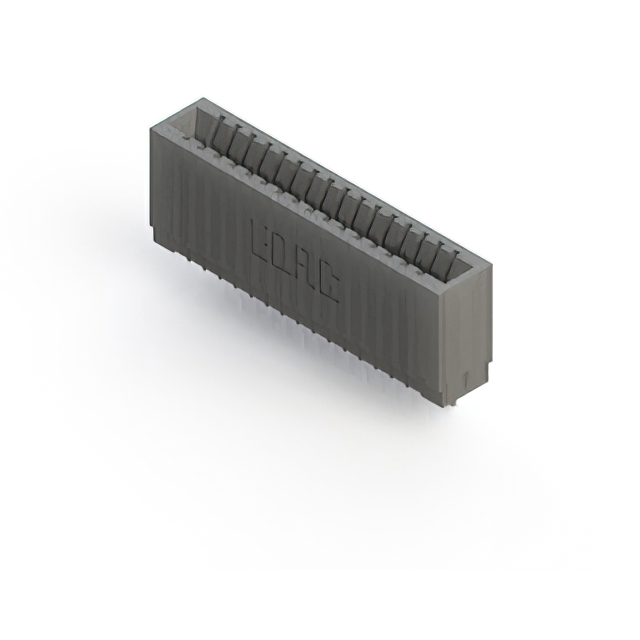

EDAC Inc. 745-016-541-101	1	Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Single Edge	16	Black	Gold	Copper Alloy	Through Hole	Press-Fit Wire Wrap	Female	16	1	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	0.1 "	2.54 mm
EDAC Inc. 745-016-525-206		Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Dual Edge	8	Black	Gold	Copper Alloy	Through Hole	Press-Fit	Female	16		30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	2	2
EDAC Inc. 745-016-560-206		Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Dual Edge	8	Black	Gold	Copper Alloy	Through Hole	Press-Fit	Female	16		30 Áin	0.76 Ám	Cantilever Make Before Break	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	2	2

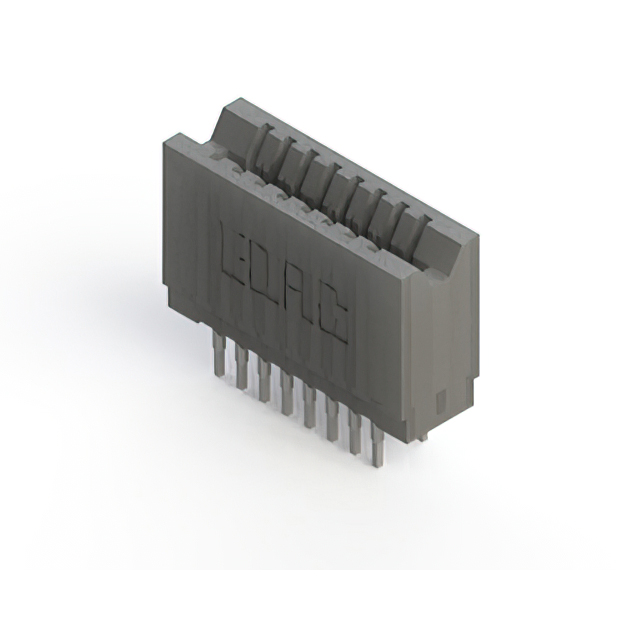

EDAC Inc. 745-016-522-206		Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Dual Edge	8	Black	Gold	Copper Alloy	Through Hole	Press-Fit	Female	16		30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	2	2
EDAC Inc. 745-016-540-101	1	Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Single Edge	16	Black	Gold	Copper Alloy	Through Hole	Press-Fit Wire Wrap	Female	16	1	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	0.1 "	2.54 mm

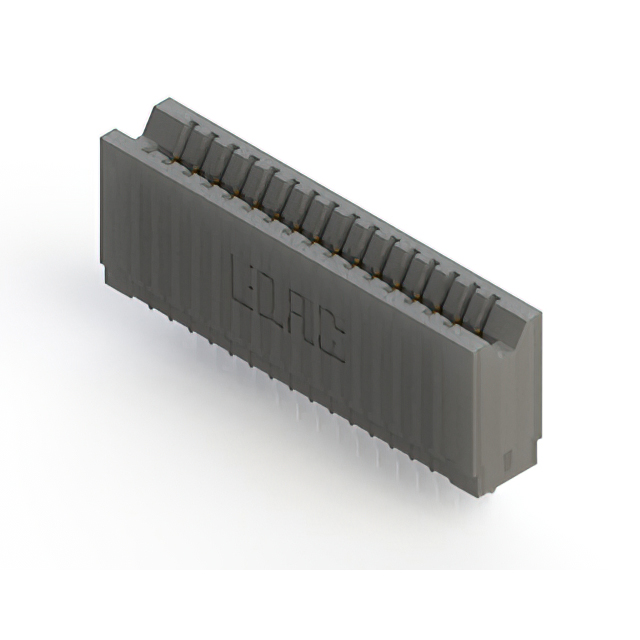

EDAC Inc. 745-016-525-106	1	Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Single Edge	16	Black	Gold	Copper Alloy	Through Hole	Press-Fit	Female	16	1	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	0.1 "	2.54 mm

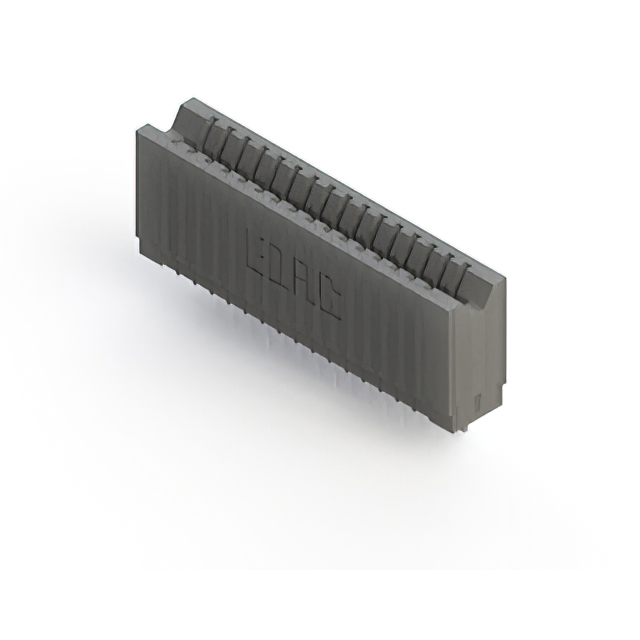

EDAC Inc. 745-016-540-106	1	Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Single Edge	16	Black	Gold	Copper Alloy	Through Hole	Press-Fit Wire Wrap	Female	16	1	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	0.1 "	2.54 mm
EDAC Inc. 745-016-541-106	1	Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Single Edge	16	Black	Gold	Copper Alloy	Through Hole	Press-Fit Wire Wrap	Female	16	1	30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	0.1 "	2.54 mm

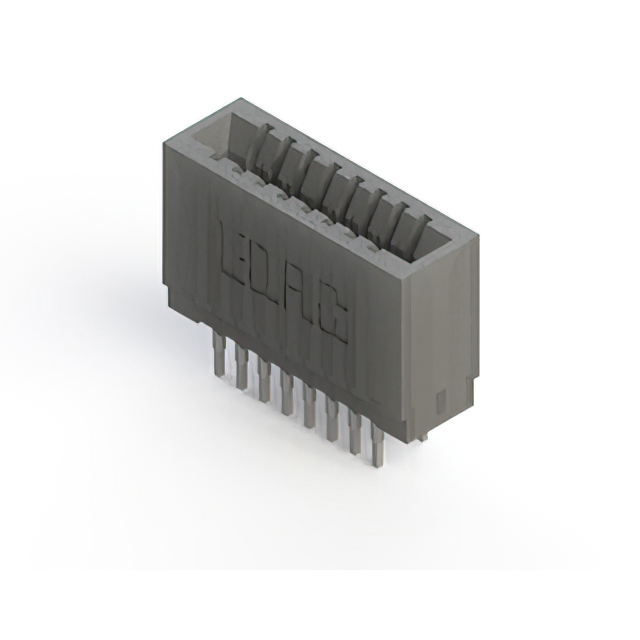

EDAC Inc. 745-016-522-201		Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Dual Edge	8	Black	Gold	Copper Alloy	Through Hole	Press-Fit	Female	16		30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	2	2

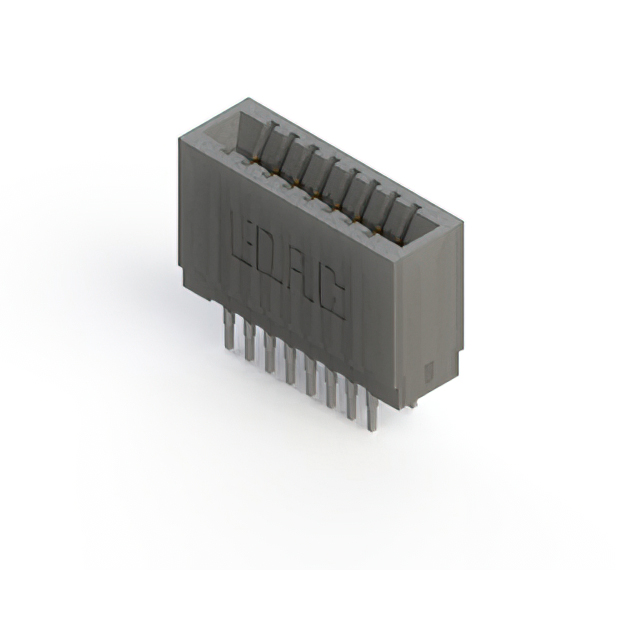

EDAC Inc. 745-016-545-201		Polyester Thermoplastic	-40 C	105 ░C	Non Specified - Dual Edge	8	Black	Gold	Copper Alloy	Through Hole	Press-Fit	Female	16		30 Áin	0.76 Ám	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	0.1 "	2.54 mm	2	2
