4914-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

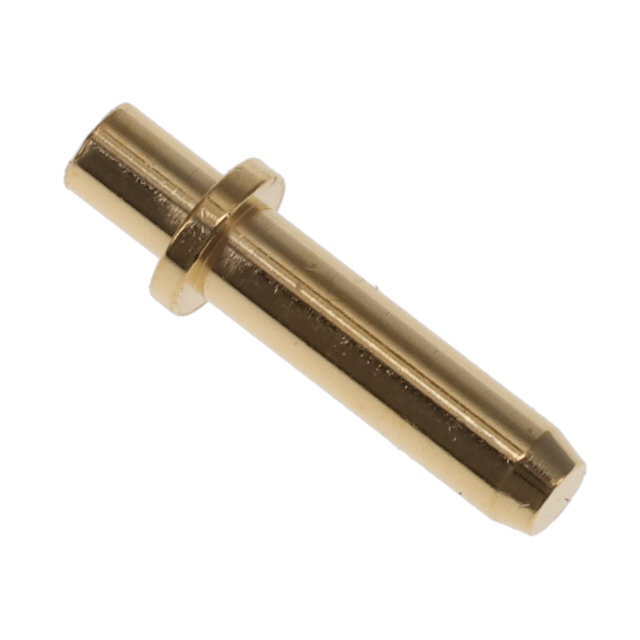

SOLDER MOUNT PCB PIN
| Part | Terminal Type | Mounting Type | Contact Finish | Length - Above Flange | Length - Above Flange | Contact Finish Thickness | Contact Finish Thickness | Terminal Style | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Termination | Length - Below Flange [x] | Length - Below Flange [x] | Pin Size - Above Flange | Pin Size - Above Flange [diameter] | Insulation | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Length - Overall | Length - Overall | Contact Material | Flange Diameter [diameter] | Flange Diameter [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | PC Pin | Through Hole | Gold | 0.3 in | 7.62 mm | 0.25 Ám | 10 Áin | Single End | 0.075 in | 1.91 mm | Solder | 2.54 mm | 0.1 " | 2.03 mm | 0.08 in | Non-Insulated | 2.13 mm | 0.084 in | 0.425 in | 10.8 mm | Brass Alloy | 0.125 in | 3.18 mm |
