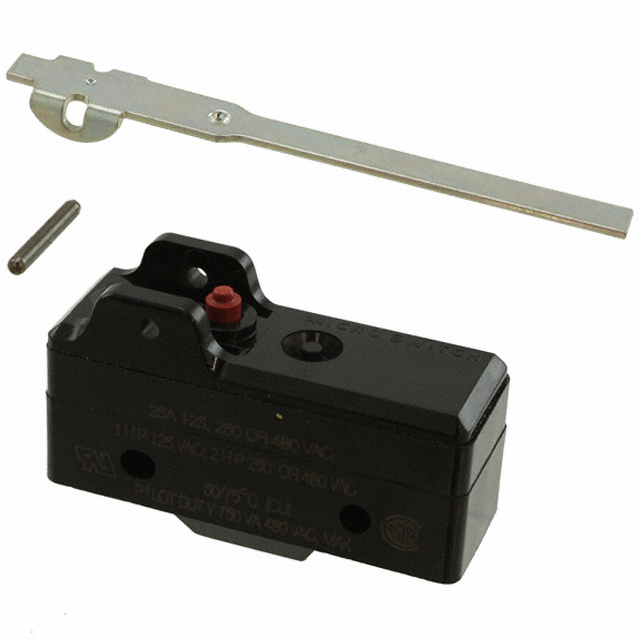

YE-2 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPST-NO 25A
| Part | Mounting Type | Actuator Type | Termination Style | Circuit | Current Rating (Amps) | Switch Function | Overtravel [custom] | Overtravel [custom] | Mechanical Life | Operating Position [custom] | Operating Position [custom] | Operating Force [Max] | Operating Force [Min] | Release Force [Min] | Release Force [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Differential Travel | Differential Travel | Voltage Rating - AC | Pretravel | Pretravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Honeywell Sensing and Productivity Solutions | Chassis Mount | Round (Pin Plunger) | Screw Terminal | SPST-NO | 25 A | Off-Mom | ||||||||||||||||
 Honeywell Sensing and Productivity Solutions | Chassis Mount | Lever Straight | Screw Terminal | SPST-NO | 25 A | Off-Mom | 0.01 " | 0.25 mm | 20000000 Cycles | 18 mm | 0.71 in | 595 gf | 425 gf | 283 gf | 397 gf | -55 C | 85 °C | 0.007 in | 0.18 mm | 125 V | 0.05 in | 1.27 mm |
