FUSE 5X20 S METI B 10A/125V (P)
Description
AI
5X20mm medium-acting glass body cartridge fuse designed to Meti B Standard.
Beta
⌘K
FUSE 5X20 S METI B 10A/125V (P)
FUSE 5X20 S METI B 10A/125V (P)
| Part | Breaking Capacity @ Rated Voltage | Package / Case [x] | Package / Case [y] | Operating Temperature [Min] | Operating Temperature [Max] | Fuse Type | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Voltage Rating - AC | Current Rating (Amps) | Melting I²t | Response Time | Mounting Type | DC Cold Resistance | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LITTELFUSE | 300 A | 5 mm | 20 mm | -55 C | 125 °C | Cartridge Glass | 20 mm | 0.205 in | 0.787 " | 5.2 mm | 125 V | 10 A | 290.665 I²t | Medium Blow | Requires Holder | ||
 LITTELFUSE | 100 A | 5 mm | 20 mm | -55 C | 125 °C | Cartridge Glass | 20 mm | 0.205 in | 0.787 " | 5.2 mm | 250 V | 10 A | 290.665 I²t | Medium Blow | Requires Holder | ||

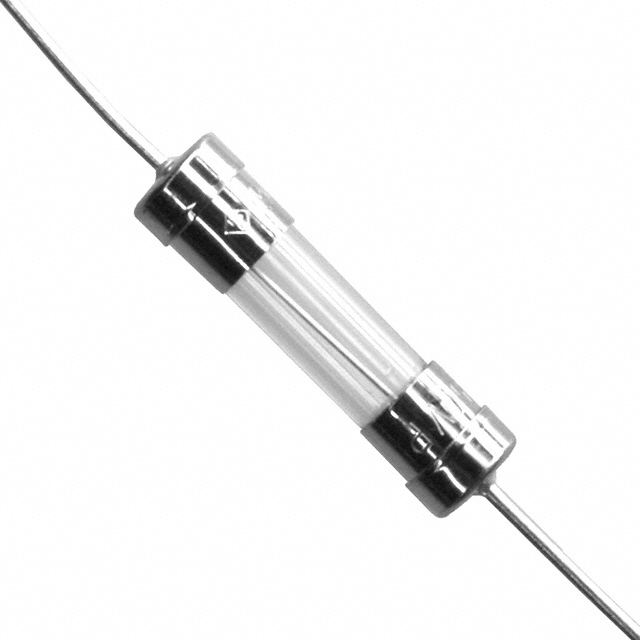

LITTELFUSE | 300 A | 5 mm | 20 mm | -55 C | 125 °C | Cartridge Glass | 22.5 mm | 0.228 " | 0.886 in | 5.8 mm | 125 V | 10 A | 290.665 I²t | Medium Blow | Through Hole | 0.0059 Ohms | Axial |
 LITTELFUSE | 100 A | 5 mm | 20 mm | -55 C | 125 °C | Cartridge Glass | 22.5 mm | 0.228 " | 0.886 in | 5.8 mm | 250 V | 10 A | 290.665 I²t | Medium Blow | Through Hole | 0.0059 Ohms | Axial |
