P119G Series

Catalog

PRESSURE SWITCH 4.5-100 PSIG

Part	Output Type	Maximum Pressure	Maximum Pressure	Port Size	Port Size	Port Size	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Termination Style	Operating Pressure [Max]	Operating Pressure [Min]	Pressure Type	Accuracy	Accuracy	Port Style	Operating Pressure [Min]	Operating Pressure [Max]
Whitman Controls, LLC P119G-10H-C12TS-DIS	SPDT	689.48 kPa	100 PSI	0.125 in	Male NPT	3.18 mm	107 °C	-54 °C	Cylinder Threaded	Screw Terminal	100 PSI 689.48 kPa	4.5 PSI 31.03 kPa	Switch	13.79 kPa	2 PSI	Threaded
Whitman Controls, LLC P119G-10H-C12TB-DIS	SPDT	689.48 kPa	100 PSI	0.125 in	Male NPT	3.18 mm	107 °C	-54 °C	Cylinder Threaded	Quick Connect - 0.250" (6.3mm)	100 PSI 689.48 kPa	4.5 PSI 31.03 kPa	Switch	13.79 kPa	2 PSI	Threaded

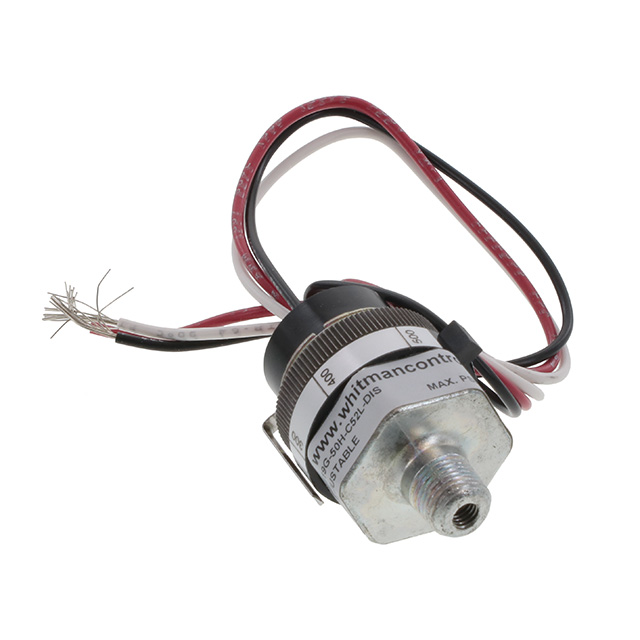

Whitman Controls, LLC P119G-50H-C52L-DIS	SPDT	3447.38 kPa	500 PSI	0.125 in	Male NPT	3.18 mm	107 °C	-54 °C	Cylinder Threaded	Wire Leads	500 PSI	20 PSI	Switch	68.95 kPa	10 PSI	Threaded	137.9 kPa	3447.38 kPa
