325-043 Series
Manufacturer: EDAC Inc.
Beta
⌘K

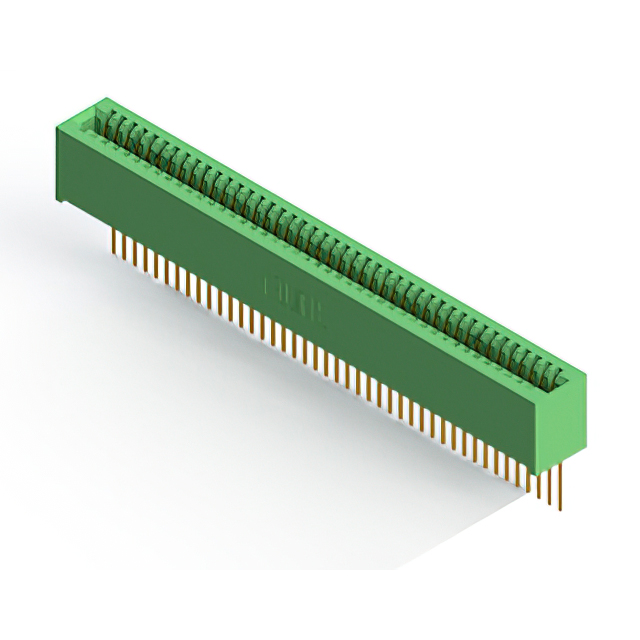

CONN EDGE SINGLE FML 43POS 0.100
| Part | Termination Rows | Material - Insulation | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Pitch | Pitch | Card Thickness | Card Thickness | Color | Number of Rows | Number of Positions/Bay/Row | Contact Finish | Operating Temperature [Min] | Operating Temperature [Max] | Read Out | Contact Type | Mounting Type | Termination | Card Type | Contact Material | Gender | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 43 | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | Green | 1 | 43 | Gold | -65 ░C | 125 °C | Single | Cantilever | Through Hole | Wire Wrap | Non Specified - Single Edge | Copper Alloy | Female | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 43 | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | Green | 1 | 43 | Gold | -65 ░C | 125 °C | Single | Cantilever | Through Hole | Solder Eyelet(s) | Non Specified - Single Edge | Copper Alloy | Female | Flush Mount M3 Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 43 | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | Green | 1 | 43 | Gold | -65 ░C | 125 °C | Single | Cantilever | Through Hole | Wire Wrap | Non Specified - Single Edge | Copper Alloy | Female | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | 43 | 0.25 Ám | 10 Áin | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | Green | 1 | 43 | Gold | -65 ░C | 125 °C | Single | Cantilever | Through Hole | Wire Wrap | Non Specified - Single Edge | Copper Alloy | Female | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm |
