6110-4 Series

Catalog

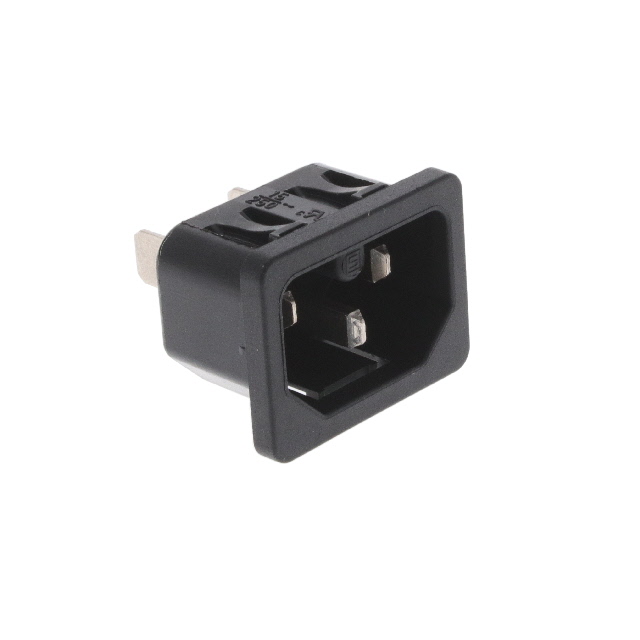

CONN INLET PL 3 POS FASTON ST PANEL MOUNT 3 TERMINAL 1 PORT BAG

Part	Approval Agency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Thickness	Panel Thickness	Connector Style	Filter Type	Connector Type	Ingress Protection	Voltage Rating - Appliance Inlet	Current Rating - Appliance Inlet	Material Flammability Rating	Termination	Termination	Termination	Mounting Type
SCHURTER Inc. 6110.4330	CCC cULus ENEC	27.5 mm	20 mm	0.118 "	3 mm	IEC 320-C16	Unfiltered - Commercial	Receptacle Male Blades	IP30	250 VAC	10 A	UL94 V-0	6.3 mm	Quick Connect	0.25 "	Panel Mount Snap-In
SCHURTER Inc. 6110.4210	CCC cULus ENEC	27.5 mm	20 mm	0.039 in	1 mm	IEC 320-C16	Unfiltered - Commercial	Receptacle Male Blades	IP30	250 VAC	10 A	UL94 V-0	4.8 mm	Quick Connect	0.189 "	Panel Mount Snap-In
SCHURTER Inc. 6110.4308	CCC cULus ENEC	27.5 mm	20 mm	0.031 "	0.79 mm	IEC 320-C16	Unfiltered - Commercial	Receptacle Male Blades	IP30	250 VAC	10 A	UL94 V-0	6.3 mm	Quick Connect	0.25 "	Panel Mount Snap-In
SCHURTER Inc. 6110.4310	CCC cULus ENEC	27.5 mm	20 mm	0.039 in	1 mm	IEC 320-C16	Unfiltered - Commercial	Receptacle Male Blades	IP30	250 VAC	10 A	UL94 V-0	6.3 mm	Quick Connect	0.25 "	Panel Mount Snap-In
SCHURTER Inc. 6110.4312	CCC cULus ENEC	27.5 mm	20 mm	0.047 "	1.2 mm	IEC 320-C16	Unfiltered - Commercial	Receptacle Male Blades	IP30	250 VAC	10 A	UL94 V-0	6.3 mm	Quick Connect	0.25 "	Panel Mount Snap-In
