PXA921 Series

Catalog

CONN RCPT MALE 5POS NICKEL SCREW

Part	Color	Shielding	Material Flammability Rating	Contact Material	Backshell Material, Plating	Orientation	Fastening Type	Current Rating (Amps)	Number of Positions	Mounting Type	Voltage Rating	Primary Material	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Mating	Termination	Features	Ingress Protection	Connector Type	Cable Opening [Max]	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]

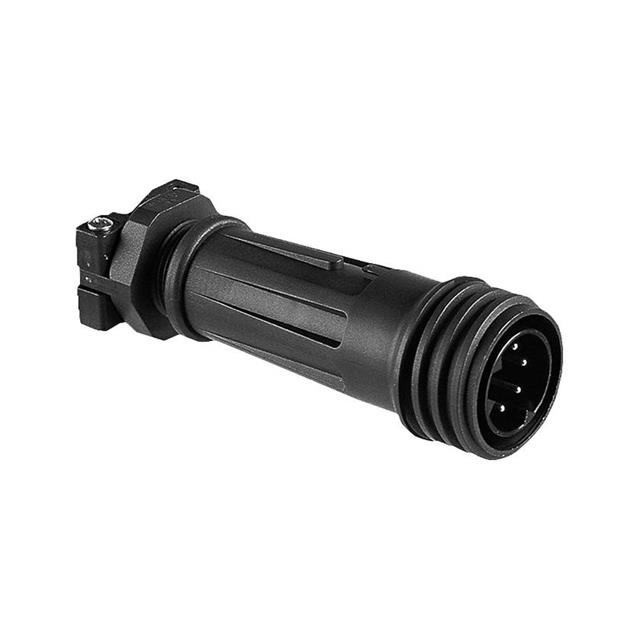

BULGIN LIMITED PXA921/05/P	Black	Unshielded	UL94 V-0	Brass	Nylon Polyamide (PA)	Keyed	Threaded	32 A	5	Free Hanging (In-Line)	600 VAC	Plastic	85 °C	-40 C	Nickel	Screw	Backshell Cable Clamp Trailing Neutral UV Resistant	IP68 IP69K	Receptacle Male Pins	22 mm	0.866 in	0.551 in	14 mm

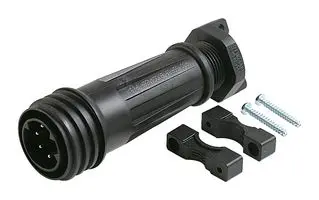

BULGIN LIMITED PXA921/07/P	Black	Unshielded	UL94 V-0	Brass	Nylon Polyamide (PA)	Keyed	Threaded	32 A	7	Free Hanging (In-Line)	430 VAC/DC	Plastic	85 °C	-40 C	Nickel	Screw	Backshell Cable Clamp UV Resistant	IP68 IP69K	Receptacle Male Pins	22 mm	0.866 in	0.551 in	14 mm
BULGIN LIMITED PXA921/04/P	Black	Unshielded	UL94 V-0	Brass	Nylon Polyamide (PA)	Keyed	Threaded	32 A	4	Free Hanging (In-Line)	600 VAC	Plastic	85 °C	-40 C	Nickel	Screw	Backshell Cable Clamp UV Resistant	IP68 IP69K	Receptacle Male Pins	22 mm	0.866 in	0.551 in	14 mm

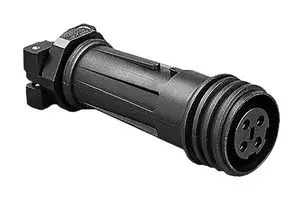

BULGIN LIMITED PXA921/03/S	Black	Unshielded	UL94 V-0	Brass	Nylon Polyamide (PA)	Keyed	Threaded	32 A	3	Free Hanging (In-Line)	600 VAC	Plastic	85 °C	-40 C	Nickel	Screw	Backshell Cable Clamp UV Resistant	IP68 IP69K	Receptacle Female Sockets	22 mm	0.866 in	0.551 in	14 mm

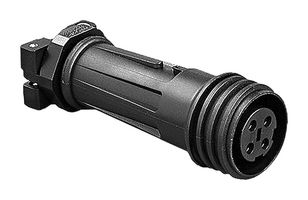

BULGIN LIMITED PXA921/10/S	Black	Unshielded	UL94 V-0	Brass	Nylon Polyamide (PA)	Keyed	Threaded	10 A	10	Free Hanging (In-Line)	250 VAC	Plastic	85 °C	-40 C	Nickel	Screw	Backshell Cable Clamp UV Resistant	IP68 IP69K	Receptacle Female Sockets	22 mm	0.866 in	0.551 in	14 mm

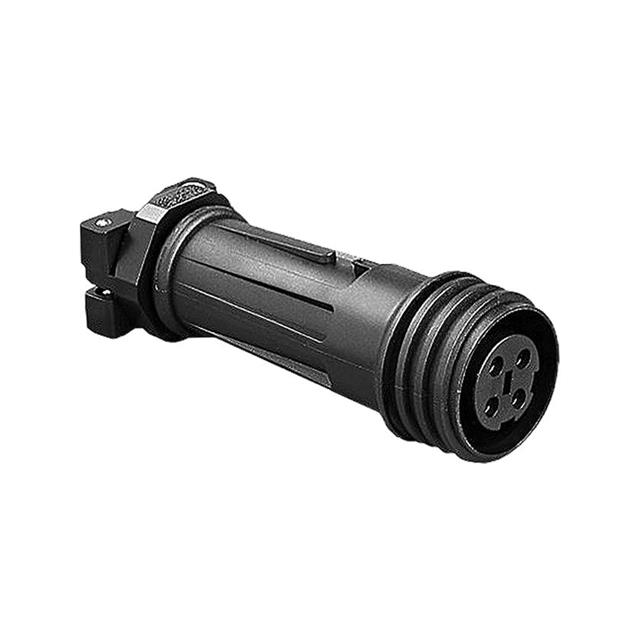

BULGIN LIMITED PXA921/05/S	Black	Unshielded	UL94 V-0	Brass	Nylon Polyamide (PA)	Keyed	Threaded	32 A	5	Free Hanging (In-Line)	600 VAC	Plastic	85 °C	-40 C	Nickel	Screw	Backshell Cable Clamp Trailing Neutral UV Resistant	IP68 IP69K	Receptacle Female Sockets	22 mm	0.866 in	0.551 in	14 mm
