215347 Series

Manufacturer: Molex

Catalog

CABLE ASSEMBLY UL 11028 0.075M 16AWG CRIMP TERMINAL TO CRIMP TERMINAL 1 TO 1 POS M-M CRIMP-CRIMP BAG

Part	Color	Number of Conductors	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge	Contact Finish	Length [x]	Length [x]	Number of Rows	Length	Length
Molex 2153471121	Black	1	2.54 µm	100 µin	16 AWG	Tin	2.95 in	75 mm	1

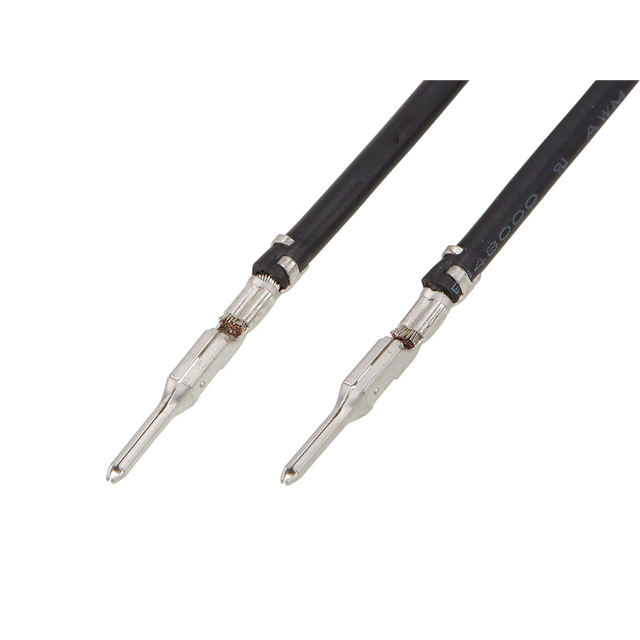

Molex 2153471122	Black	1	2.54 µm	100 µin	16 AWG	Tin			1	5.91 in	150 mm
Molex 2153472121	Red	1	2.54 µm	100 µin	16 AWG	Tin	2.95 in	75 mm	1
Molex 2153471124	Black	1	2.54 µm	100 µin	16 AWG	Tin			1	11.8 in	300 mm
Molex 2153472125	Red	1	2.54 µm	100 µin	16 AWG	Tin	17.7 in	450 mm	1

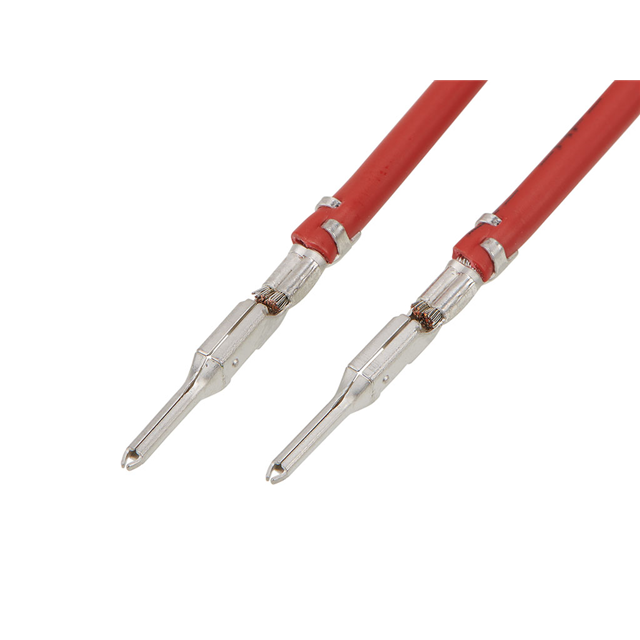

Molex 2153472122	Red	1	2.54 µm	100 µin	16 AWG	Tin			1	5.91 in	150 mm
Molex 2153471125	Black	1	2.54 µm	100 µin	16 AWG	Tin	17.7 in	450 mm	1
Molex 2153471123	Black	1	2.54 µm	100 µin	16 AWG	Tin	8.86 in	225 mm	1
Molex 2153472123	Red	1	2.54 µm	100 µin	16 AWG	Tin	8.86 in	225 mm	1
Molex 2153472124	Red	1	2.54 µm	100 µin	16 AWG	Tin			1	11.8 in	300 mm
