661-025 Series
Manufacturer: EDAC Inc.
Beta
⌘K

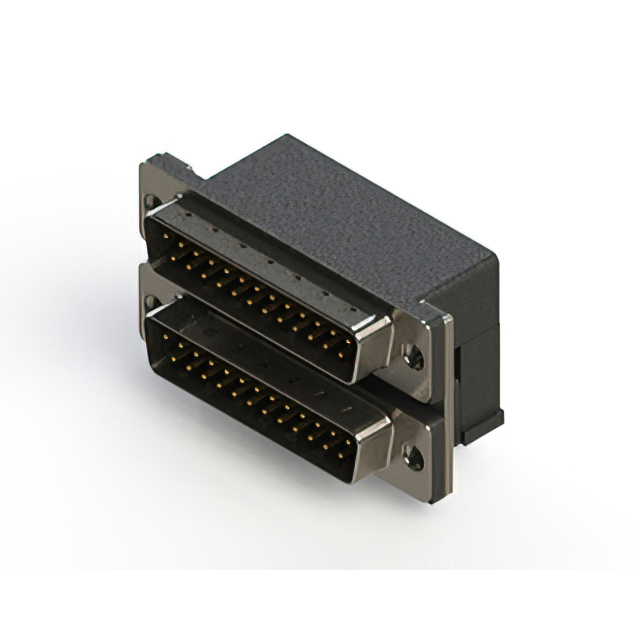

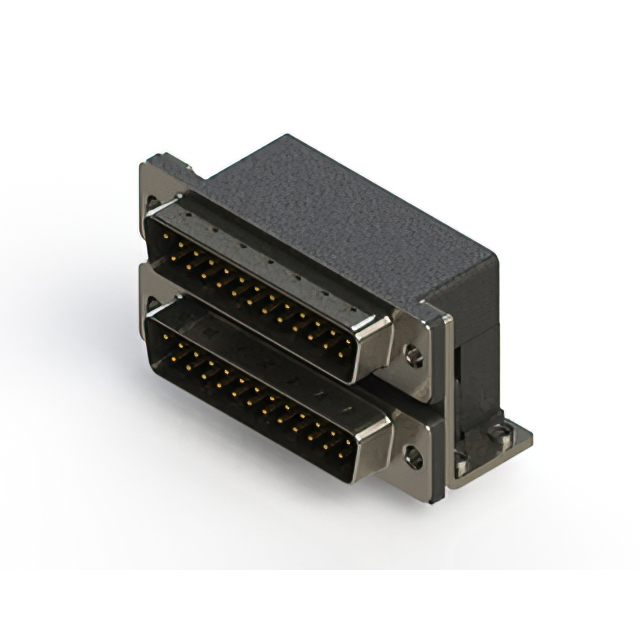

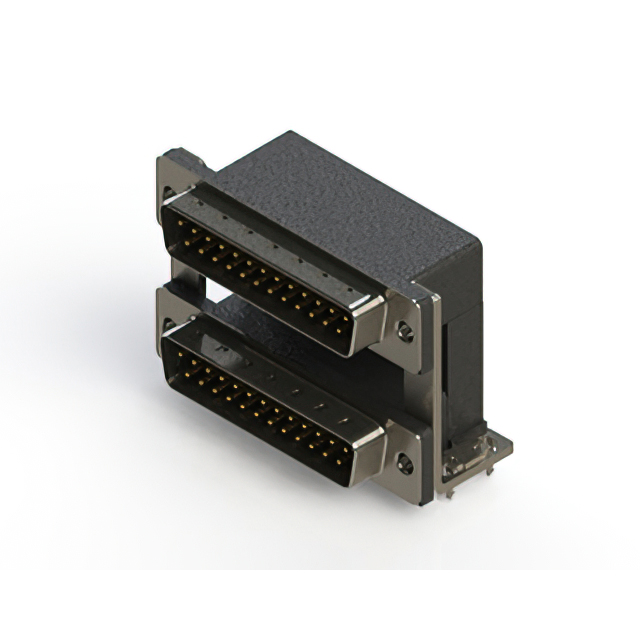

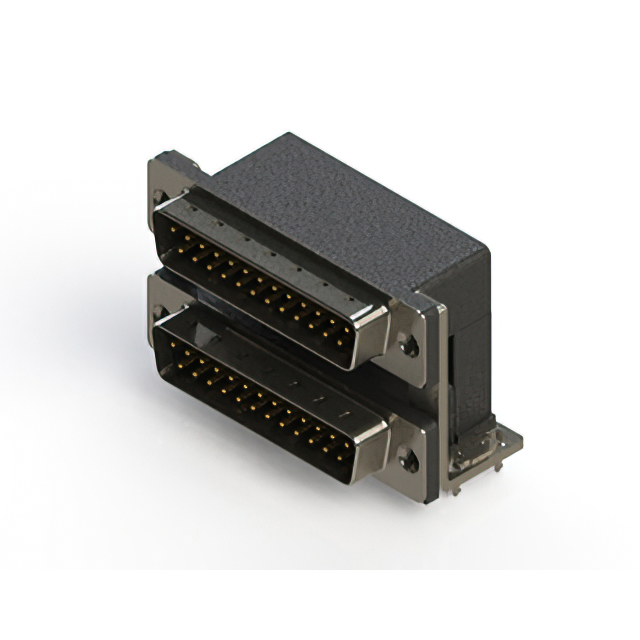

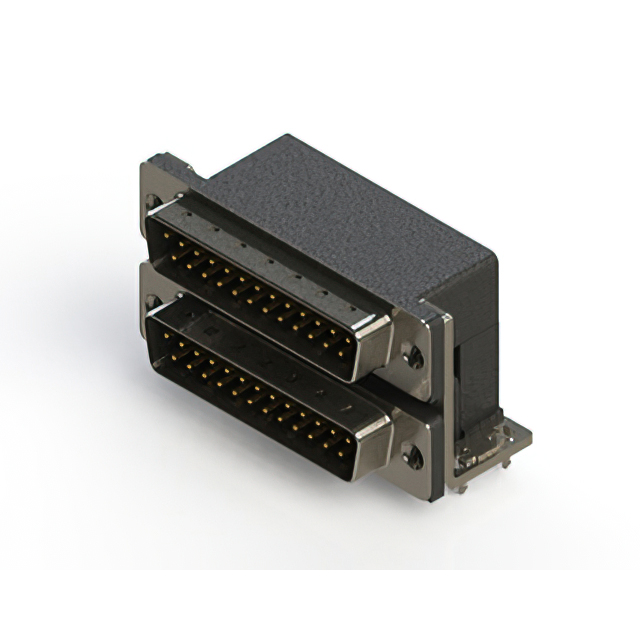

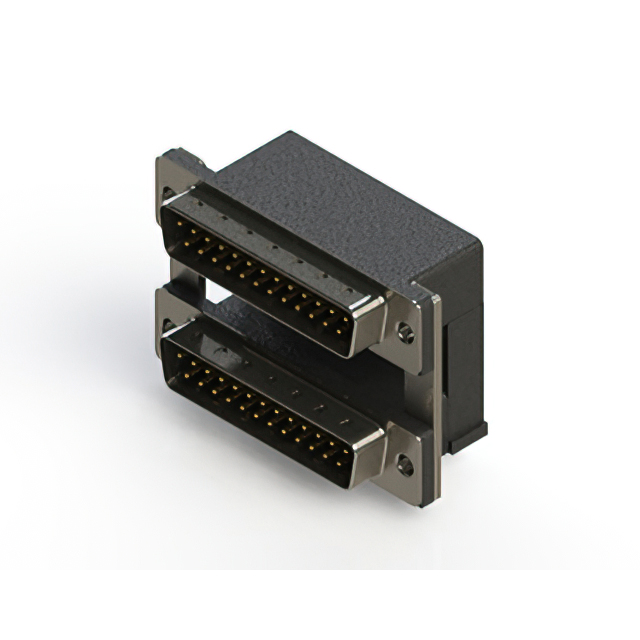

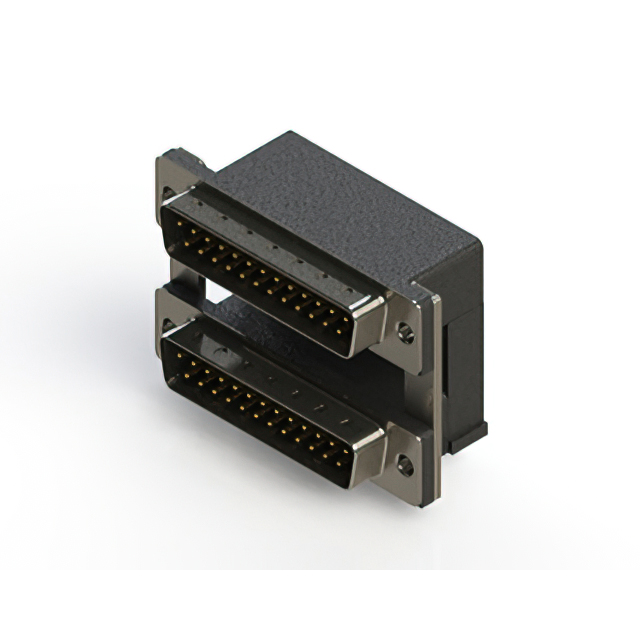

CONN D-SUB PLUG 25POS R/A SLDR
| Part | Dielectric Material | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Shell Size, Connector Layout | Contact Finish | Connector Style | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Rows [custom] | Flange Feature | Current Rating (Amps) | Features | Contact Type | Backset Spacing | Backset Spacing | Shell Material, Finish | Termination | Material Flammability Rating | Number of Positions | Flange Feature | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Black | Brass | 3 (DB B) | Gold | D-Sub - Stacked | Plug Male Pins | 0.38 µm | 15 µin | Panel Mount Right Angle Through Hole | 2 | 4-40 Mating Side Female Screwlock | 3 A | Board Lock Grounding Indents Mounting Brackets Shielded | Signal | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | UL94 V-0 | 25 | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Black | Brass | 3 (DB B) | Gold | D-Sub - Stacked | Plug Male Pins | 0.38 µm | 15 µin | Panel Mount Right Angle Through Hole | 2 | Housing/Shell (Unthreaded) | 3 A | Grounding Indents Mounting Brackets Shielded | Signal | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | UL94 V-0 | 25 | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Black | Brass | 3 (DB B) | Gold | D-Sub - Stacked | Plug Male Pins | 0.76 Ám | 30 Áin | Panel Mount Right Angle Through Hole | 2 | Housing/Shell (M3) | 3 A | Grounding Indents Mounting Brackets Shielded | Signal | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | UL94 V-0 | 25 | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Black | Brass | 3 (DB B) | Gold | D-Sub - Stacked | Plug Male Pins | 0.38 µm | 15 µin | Panel Mount Right Angle Through Hole | 2 | Housing/Shell (M3) | 3 A | Board Lock Grounding Indents Mounting Brackets Shielded | Signal | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | UL94 V-0 | 25 | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Black | Brass | 3 (DB B) | Gold | D-Sub - Stacked | Plug Male Pins | 0.38 µm | 15 µin | Panel Mount Right Angle Through Hole | 2 | Housing/Shell | 3 A | Board Lock Grounding Indents Mounting Brackets Shielded | Signal | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | UL94 V-0 | 25 | 4-40 | |
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Black | Brass | 3 (DB B) | Gold | D-Sub - Stacked | Plug Male Pins | 0.76 Ám | 30 Áin | Panel Mount Right Angle Through Hole | 2 | Housing/Shell | 3 A | Board Lock Grounding Indents Mounting Brackets Shielded | Signal | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | UL94 V-0 | 25 | 4-40 | |
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Black | Brass | 3 (DB B) | Gold | D-Sub - Stacked | Plug Male Pins | Panel Mount Right Angle Through Hole | 2 | Housing/Shell (M3) | 3 A | Board Lock Grounding Indents Mounting Brackets Shielded | Signal | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | UL94 V-0 | 25 | Flash | |||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Black | Brass | 3 (DB B) | Gold | D-Sub - Stacked | Plug Male Pins | Panel Mount Right Angle Through Hole | 2 | Housing/Shell | 3 A | Grounding Indents Mounting Brackets Shielded | Signal | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | UL94 V-0 | 25 | 4-40 | Flash | ||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Black | Brass | 3 (DB B) | Gold | D-Sub - Stacked | Plug Male Pins | Panel Mount Right Angle Through Hole | 2 | Housing/Shell (M3) | 3 A | Grounding Indents Mounting Brackets Shielded | Signal | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | UL94 V-0 | 25 | Flash | |||
 EDAC Inc. | Polyester Thermoplastic | -55 C | 85 °C | Black | Brass | 3 (DB B) | Gold | D-Sub - Stacked | Plug Male Pins | 0.76 Ám | 30 Áin | Panel Mount Right Angle Through Hole | 2 | 4-40 Mating Side Female Screwlock | 3 A | Board Lock Grounding Indents Mounting Brackets Shielded | Signal | 8.08 mm | 0.318 " | Nickel Plated Steel | Solder | UL94 V-0 | 25 |
