29502 Series
Manufacturer: Belden Inc.
Beta
⌘K

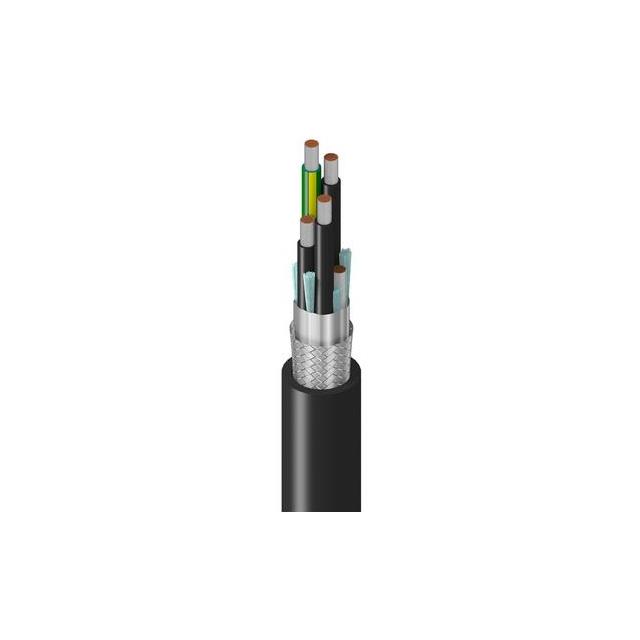

MULTICONDUCTOR CABLE, VFD, SHIELDED, 4 CONDUCTOR, 12 AWG, 100 FT, 30.48 M
| Part | Shield Material | Shield Coverage | Features | Jacket Color | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Material | Shield Type | Conductor Material | Usage | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Number of Conductors | Conductor Insulation | Conductor Insulation | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Operating Temperature [Max] | Operating Temperature [Min] | Length [x] | Length [x] | Cable Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Aluminum Copper Tinned | 85 % 100 % | Drain Wire Oil Resistant UV Resistant | Black | 30 AWG | 65 | Poly-Vinyl Chloride (PVC) | Braid Foil | Copper Tinned | Motor Supply Variable Frequency Drive (VFD) | 1.854 mm | 0.073 in | 12 AWG | 4 | Polyolefin | PO | 16 mm | 0.63 in | 90 °C | -40 C | 100 ft | 30.5 m | Multi-Conductor |
