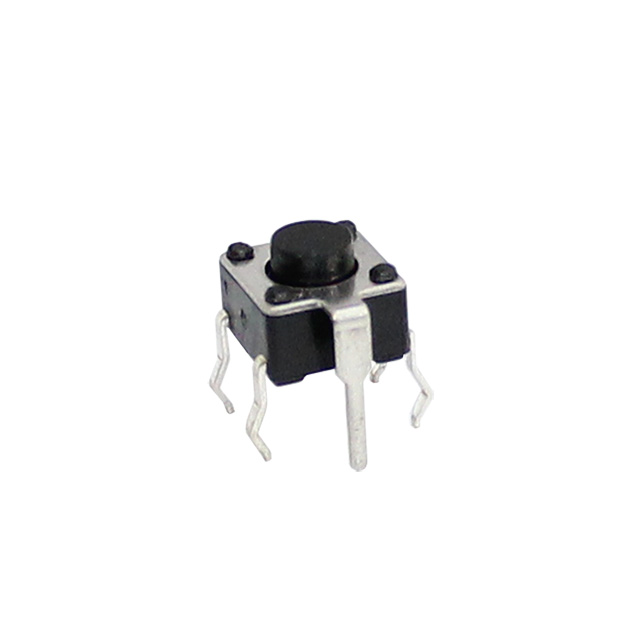

CT1102P5 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Illumination	Outline [x]	Outline [y]	Termination Style	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Circuit	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Operating Force	Actuator Type	Switch Function	Contact Rating @ Voltage
CIT Relay and Switch CT1102P5.0F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	Non-Illuminated	6 mm	6 mm	PC Pin	5 mm	Top Actuated	SPST-NO	Through Hole	85 °C	-40 C	160 gf	Plunger for Cap	Off-Mom	0.05 A 50 VDC
CIT Relay and Switch CT1102P5.0F100	Nylon 6/6 Polyamide (PA66)	0.25 mm	Non-Illuminated	6 mm	6 mm	PC Pin	5 mm	Top Actuated	SPST-NO	Through Hole	85 °C	-40 C	100 gf	Plunger for Cap	Off-Mom	0.05 A 50 VDC
CIT Relay and Switch CT1102P5.0F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	Non-Illuminated	6 mm	6 mm	PC Pin	5 mm	Top Actuated	SPST-NO	Through Hole	85 °C	-40 C	260 gf	Plunger for Cap	Off-Mom	0.05 A 50 VDC
