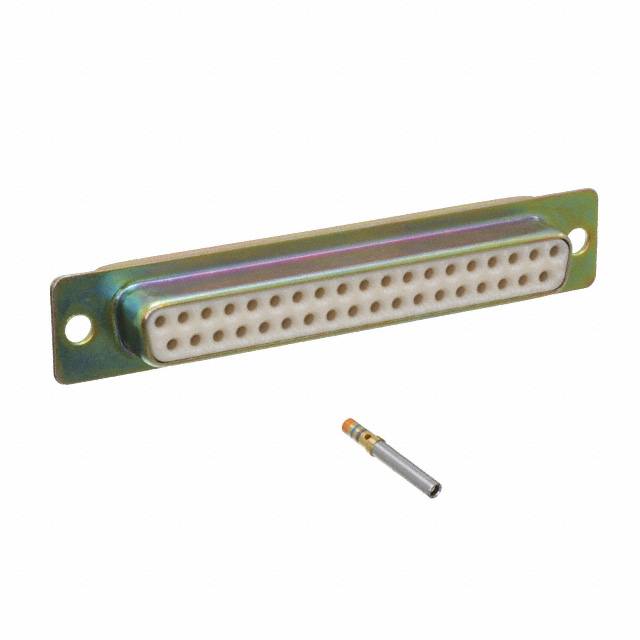

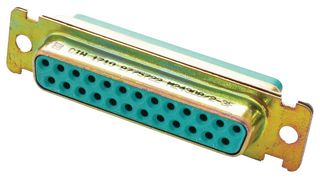

M24308/2 Series
Manufacturer: Cinch Connectivity Solutions
Beta
⌘K
DSUB
| Part | Dielectric Material | Color | Note | Operating Temperature [Min] | Operating Temperature [Max] | Mating Cycles | Contact Type | Connector Type | Number of Positions | Flange Feature | Mounting Type | Shell Material, Finish | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Number of Rows [custom] | Connector Style | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Features | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Termination | Contact Finish | Current Rating (Amps) | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions | Diallyl Phthalate (DAP) Glass Filled | Green | Contacts Not Included | -65 ░C | 125 °C | 500 | Signal | Receptacle for Female Contacts | 9 | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | Steel Yellow Chromate Plated Cadmium | 1 | DE E | 2 | D-Sub | ||||||||||||
Cinch Connectivity Solutions | Diallyl Phthalate (DAP) Glass Filled | Green | -65 ░C | 125 °C | Signal | Receptacle Female Sockets | 25 | Housing/Shell (Unthreaded) | Panel Mount | Steel Yellow Chromate Plated Cadmium | 2 | D-Sub | Phosphor Bronze | 50 µin | 1.27 µm | Tools Included | B DB | 3 | Crimp | Gold | 5 A | |||||||
Cinch Connectivity Solutions | Diallyl Phthalate (DAP) Glass Filled | Green | -65 ░C | 125 °C | Signal | Receptacle Female Sockets | 25 | Housing/Shell (Unthreaded) | Panel Mount | 2 | D-Sub | Phosphor Bronze | 50 µin | 1.27 µm | B DB | 3 | Crimp | Gold | 5 A | Yellow Chromate Plated Zinc | Steel | |||||||
Cinch Connectivity Solutions | Diallyl Phthalate (DAP) Glass Filled | Green | -65 ░C | 125 °C | Signal | Receptacle Female Sockets | 9 | Housing/Shell (Unthreaded) | Panel Mount | Steel Yellow Chromate Plated Cadmium | 1 | DE E | 2 | D-Sub | Phosphor Bronze | 50 µin | 1.27 µm | Crimp | Gold | 5 A | ||||||||
Cinch Connectivity Solutions | Diallyl Phthalate (DAP) Glass Filled | Green | Contacts Not Included | -65 ░C | 125 °C | 500 | Signal | Receptacle for Female Contacts | 15 | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | Steel Yellow Chromate Plated Cadmium | 2 | D-Sub | 2 | |||||||||||||
Cinch Connectivity Solutions | Diallyl Phthalate (DAP) Glass Filled | Green | Contacts Not Included | -65 ░C | 125 °C | 500 | Signal | Receptacle for Female Contacts | 9 | Housing/Shell (Unthreaded) | Free Hanging (In-Line) | 1 | DE E | 2 | D-Sub | Yellow Chromate Plated Zinc | Steel | |||||||||||
Cinch Connectivity Solutions | Diallyl Phthalate (DAP) Glass Filled | Green | -65 ░C | 125 °C | Signal | Receptacle Female Sockets | 25 | Housing/Shell (Unthreaded) | Panel Mount | Steel Yellow Chromate Plated Cadmium | 2 | D-Sub | Phosphor Bronze | 50 µin | 1.27 µm | B DB | 3 | Crimp | Gold | 5 A | ||||||||
Cinch Connectivity Solutions | Diallyl Phthalate (DAP) Glass Filled | Green | -65 ░C | 125 °C | Signal | Receptacle Female Sockets | 15 | Housing/Shell (Unthreaded) | Panel Mount | Steel Yellow Chromate Plated Cadmium | 2 | D-Sub | Phosphor Bronze | 50 µin | 1.27 µm | Tools Included | Crimp | Gold | 5 A | 2 | ||||||||
Cinch Connectivity Solutions | Diallyl Phthalate (DAP) Glass Filled | Green | -65 ░C | 125 °C | Signal | Receptacle Female Sockets | 25 | Housing/Shell (Unthreaded) | Panel Mount | Steel Yellow Chromate Plated Cadmium | 2 | D-Sub | Phosphor Bronze | 50 µin | 1.27 µm | B DB | 3 | Crimp | Gold | 5 A | ||||||||
 Cinch Connectivity Solutions | Diallyl Phthalate (DAP) Glass Filled | Green | -65 ░C | 125 °C | Signal | Receptacle Female Sockets | 15 | Housing/Shell (Unthreaded) | Panel Mount | 2 | D-Sub | Phosphor Bronze | 50 µin | 1.27 µm | Crimp | Gold | 5 A | Yellow Chromate Plated Zinc | Steel | 2 |
