VX-013 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K

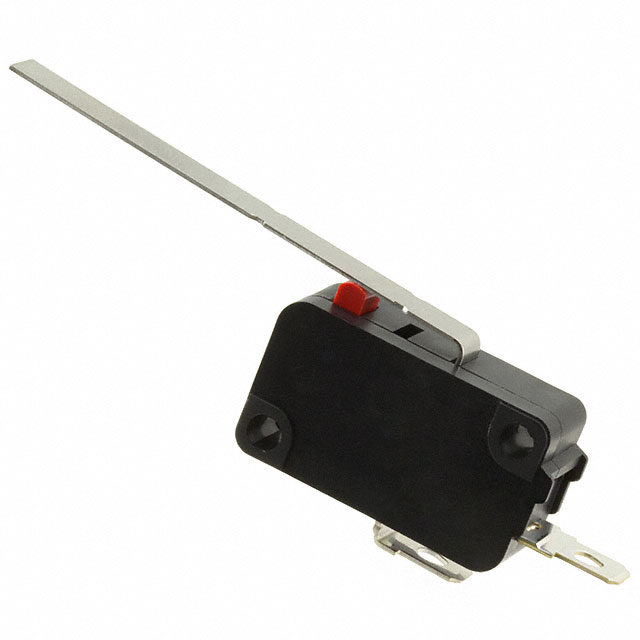

SWITCH SNP ACT SPST-NO 0.1A 125V
| Part | Differential Travel | Differential Travel | Electrical Life | Voltage Rating - DC | Mechanical Life | Pretravel | Pretravel | Mounting Type | Switch Function | Operating Temperature [Min] | Operating Temperature [Max] | Operating Force | Termination Style | Termination Style | Termination Style | Ingress Protection | Circuit | Actuator Type | Voltage Rating - AC | Overtravel [custom] | Overtravel [custom] | Operating Position | Operating Position | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | 2 mm | 0.08 in | 1000000 Cycles | 30 V | 10000000 Cycles | 0.354 in | 9 mm | Chassis Mount | Off-Mom | -25 °C | 80 °C | 20 gf | 4.7 mm | 0.187 in | Solder Quick Connect | IP40 | SPST-NO | Lever Straight | 125 V | 0.125 in | 3.2 mm | 0.6 in | 15.2 mm | 100 mA |
