395-110 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE DUAL FML 110POS 0.100
| Part | Material - Insulation | Termination Rows [custom] | Contact Type | Pitch | Pitch | Number of Positions/Bay/Row | Read Out | Card Type | Number of Positions | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Gender | Color | Mounting Type | Contact Finish | Termination | Card Thickness [Max] | Card Thickness [Min] | Number of Rows [custom] | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 0.1 " | 2.54 mm | 55 | Dual | Non Specified - Dual Edge | 110 | 0.25 Ám | 10 Áin | 4-40 Flush Mount Threaded Insert Top Opening | Copper Alloy | -40 C | 105 ░C | Female | Black | Through Hole | Gold | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 0.1 " | 2.54 mm | 55 | Dual | Non Specified - Dual Edge | 110 | 0.25 Ám | 10 Áin | Floating Bobbin Top Mount Opening | Copper Alloy | -40 C | 105 ░C | Female | Black | Through Hole | Gold | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.116 " | 2.95 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 0.1 " | 2.54 mm | 55 | Dual | Non Specified - Dual Edge | 110 | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | -40 C | 105 ░C | Female | Black | Through Hole | Gold | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 0.1 " | 2.54 mm | 55 | Dual | Non Specified - Dual Edge | 110 | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Female | Black | Through Hole | Gold | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | ||||
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 0.1 " | 2.54 mm | 55 | Dual | Non Specified - Dual Edge | 110 | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | -40 C | 105 ░C | Female | Black | Through Hole | Gold | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | |||
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 0.1 " | 2.54 mm | 55 | Dual | Non Specified - Dual Edge | 110 | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Female | Black | Through Hole | Gold | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.128 " | 3.25 mm | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 0.1 " | 2.54 mm | 55 | Dual | Non Specified - Dual Edge | 110 | 0.25 Ám | 10 Áin | M3 Threaded Insert Top Mount Opening | Copper Alloy | -40 C | 105 ░C | Female | Black | Right Angle Through Hole | Gold | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | |||

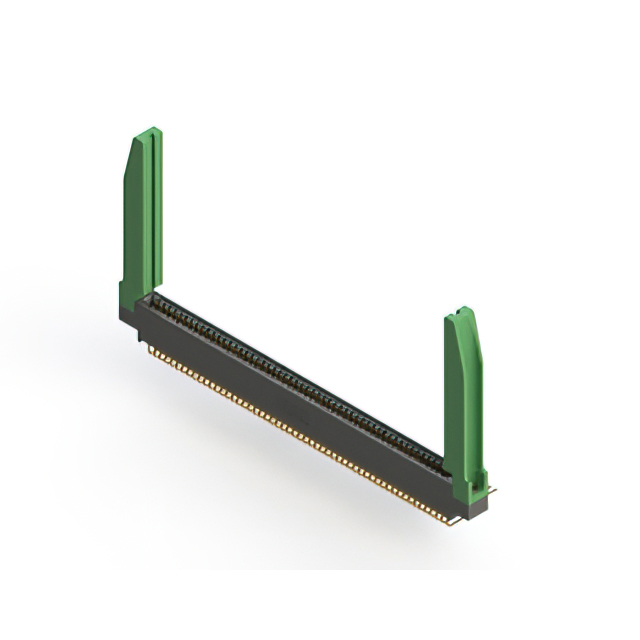

 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 0.1 " | 2.54 mm | 55 | Dual | Non Specified - Dual Edge | 110 | 0.25 Ám | 10 Áin | 4-40 Threaded Insert Top Mount Opening | Copper Alloy | -40 C | 105 ░C | Female | Black | Right Angle Through Hole | Gold | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | Card Guides | ||
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 0.1 " | 2.54 mm | 55 | Dual | Non Specified - Dual Edge | 110 | 0.25 Ám | 10 Áin | Floating Bobbin Flush Mount | Copper Alloy | -40 C | 105 ░C | Female | Black | Through Hole | Gold | Solder | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.116 " | 2.95 mm | |
 EDAC Inc. | Polyester Thermoplastic | 2 | Cantilever | 0.1 " | 2.54 mm | 55 | Dual | Non Specified - Dual Edge | 110 | 0.25 Ám | 10 Áin | Copper Alloy | -40 C | 105 ░C | Female | Black | Through Hole | Gold | Wire Wrap | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 2 | 0.128 " | 3.25 mm |
