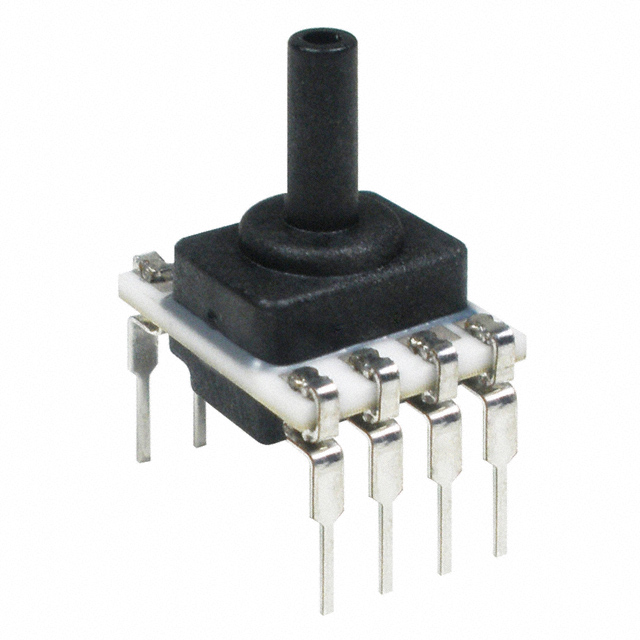

HSCDLNN Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SENSOR 0.58PSIG 0.1" 12BIT 8DIP

Part	Applications	Port Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Pressure Type	Maximum Pressure [Max]	Maximum Pressure [Max]	Output	Package / Case	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Accuracy	Supplier Device Package	Termination Style	Port Size	Port Size	Port Size	Operating Pressure [custom]	Operating Pressure [custom]	Features	Output Type	Maximum Pressure	Maximum Pressure	Operating Pressure	Operating Pressure	Output [Min]	Output [Max]	Operating Pressure [custom]	Operating Pressure [custom]
Honeywell Sensing and Productivity Solutions HSCDLNN040MG2A5	Board Mount	Barbless	5.05 V	4.95 V	Vented Gauge	10.88 PSI	75 kPa	12 b	0.524 " 13.3 mm	8-DIP	85 °C	-20 C	Through Hole	0.25 %	8-DIP	PC Pin	2.47 mm	0.1 "	Male	0.58 PSI	4 kPa	Amplified Output Temperature Compensated	I2C
Honeywell Sensing and Productivity Solutions HSCDLNN2.5MD2A3	Board Mount	Barbless	3.33 V	3.27 V	Differential			12 b	0.524 " 13.3 mm	8-DIP	85 °C	-20 C	Through Hole	0.25 %	8-DIP	PC Pin	2.47 mm	0.1 "	Male			Amplified Output Temperature Compensated	I2C	67.5 kPa	9.79 PSI	0.04 PSI	0.25 kPa
Honeywell Sensing and Productivity Solutions HSCDLNN100MDSA5	Board Mount	Barbless	5.25 V	4.75 V	Differential			12 b	0.524 " 13.3 mm	8-DIP	85 °C	-20 C	Through Hole	0.25 %	8-DIP	PC Pin	2.47 mm	0.1 "	Male			Amplified Output Temperature Compensated	SPI	140 kPa	20.31 PSI	1.45 PSI	10 kPa
Honeywell Sensing and Productivity Solutions HSCDLNN100KAAA5
Honeywell Sensing and Productivity Solutions HSCDLNN060MG2A5	Board Mount	Barbless	5.25 V	4.75 V	Vented Gauge	12.33 PSI	85 kPa	12 b	0.524 " 13.3 mm	8-DIP	85 °C	-20 C	Through Hole	0.25 %	8-DIP	PC Pin	2.47 mm	0.1 "	Male			Amplified Output Temperature Compensated	I2C			0.87 PSI	6 kPa
Honeywell Sensing and Productivity Solutions HSCDLNN015PGAA5	Board Mount	Barbless	5.25 V	4.75 V	Vented Gauge	30 PSI	206.84 kPa		0.524 " 13.3 mm	8-DIP	85 °C	-20 C	Through Hole	0.25 %	8-DIP	PC Pin	2.47 mm	0.1 "	Male			Amplified Output Temperature Compensated	Analog Voltage					0.5 V	4.5 V	15 PSI	103.42 kPa
Honeywell Sensing and Productivity Solutions HSCDLNN001PDAA3	Board Mount	Barbless	3.6 V	3 V	Differential				0.524 " 13.3 mm	8-DIP	85 °C	-20 C	Through Hole	0.25 %	8-DIP	PC Pin	2.47 mm	0.1 "	Male			Amplified Output Temperature Compensated	Analog Voltage	68.95 kPa	10 PSI			0.33 V	2.97 V
Honeywell Sensing and Productivity Solutions HSCDLNN001ND2A5	Board Mount	Barbless	5.05 V	4.95 V	Differential			12 b	0.524 " 13.3 mm	8-DIP	85 °C	-20 C	Through Hole	0.25 %	8-DIP	PC Pin	2.47 mm	0.1 "	Male			Amplified Output Temperature Compensated	I2C			0.04 PSI	0.25 kPa
Honeywell Sensing and Productivity Solutions HSCDLNN100PG2A3	Board Mount	Barbless	3.6 V	3 V	Vented Gauge	250 PSI	1723.69 kPa	12 b	0.524 " 13.3 mm	8-DIP	85 °C	-20 C	Through Hole	0.25 %	8-DIP	PC Pin	2.47 mm	0.1 "	Male			Amplified Output Temperature Compensated	I2C			100 PSI	689.48 kPa
Honeywell Sensing and Productivity Solutions HSCDLNN015PGSA3	Board Mount	Barbless	3.6 V	3 V	Vented Gauge	30 PSI	206.84 kPa	12 b	0.524 " 13.3 mm	8-DIP	85 °C	-20 C	Through Hole	0.25 %	8-DIP	PC Pin	2.47 mm	0.1 "	Male			Amplified Output Temperature Compensated	SPI							15 PSI	103.42 kPa
