M80-702 Series

Catalog

PIN HEADER, BOARD-TO-BOARD, WIRE-TO-BOARD, 2 MM, 3 ROWS, 36 CONTACTS, THROUGH HOLE

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Number of Rows [custom]	Insulation Color	Voltage Rating	Number of Positions	Contact Material	Termination	Insulation Height	Insulation Height	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Connector Type	Contact Finish - Mating	Contact Shape	Row Spacing - Mating	Row Spacing - Mating	Number of Positions Loaded	Mounting Type	Current Rating (Amps)	Contact Finish - Post	Features	Fastening Type	Contact Type	Insulation Material	Contact Length - Post	Contact Length - Post	Style	Pitch - Mating	Pitch - Mating	Material Flammability Rating
Harwin Inc. M80-7023642	118.1 µin	3 µm	-55 C	125 °C	Shrouded - 4 Wall	3	Black	120 VDC	36	Phosphor Bronze	Solder	0.244 in	6.2 mm	29.5 µin	0.75 µm	Header	Gold	Circular	2 mm	0.079 in	All	Through Hole	2.2 A	Tin	Mating Flange	Push-Pull	Male Pin	Nylon 4/6 Polyamide (PA46)	0.118 in	3 mm	Board to Board Cable	0.079 "	2 mm	UL94 V-0
Harwin Inc. M80-7024522	118.1 µin	3 µm	-55 C	125 °C	Shrouded - 4 Wall	3	Black	120 VDC	45	Phosphor Bronze	Solder	0.244 in	6.2 mm	29.5 µin	0.75 µm	Header	Gold	Circular	2 mm	0.079 in	All	Through Hole	2.2 A	Tin-Lead	Mating Flange	Push-Pull	Male Pin	Nylon 4/6 Polyamide (PA46)	0.118 in	3 mm	Board to Board Cable	0.079 "	2 mm	UL94 V-0

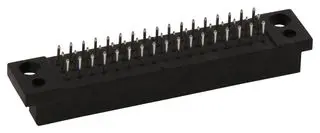

Harwin Inc. M80-7025122	118.1 µin	3 µm	-55 C	125 °C	Shrouded - 4 Wall	3	Black	120 VDC	51	Phosphor Bronze	Solder	0.244 in	6.2 mm	29.5 µin	0.75 µm	Header	Gold	Circular	2 mm	0.079 in	All	Through Hole	2.2 A	Tin-Lead	Mating Flange	Push-Pull	Male Pin	Nylon 4/6 Polyamide (PA46)	0.118 in	3 mm	Board to Board Cable	0.079 "	2 mm	UL94 V-0
