ED3000 Series
Manufacturer: On Shore Technology Inc.
Beta
⌘K
TERM BLOCK 12POS 45DEG 5MM PCB
| Part | Clamp Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Housing Material | Pitch | Pitch | Features | Color | Voltage | Wire Gauge [Max] | Wire Gauge [Min] | Mating Orientation | Mating Orientation | Current | Wire Termination | Positions Per Level | Number of Levels | Mounting Type | Positions Per Level [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 On Shore Technology Inc. | Copper | -30 ░C | 105 ░C | Polyamide (PA) Nylon | 0.197 in | 5 mm | Interlocking (Side) | Gray Slate | 300 VDC | 28 AWG | 14 AWG | 135 ° | 45 ° | 16 A | Leg Spring Push-In Spring | 12 | 1 | Through Hole | |

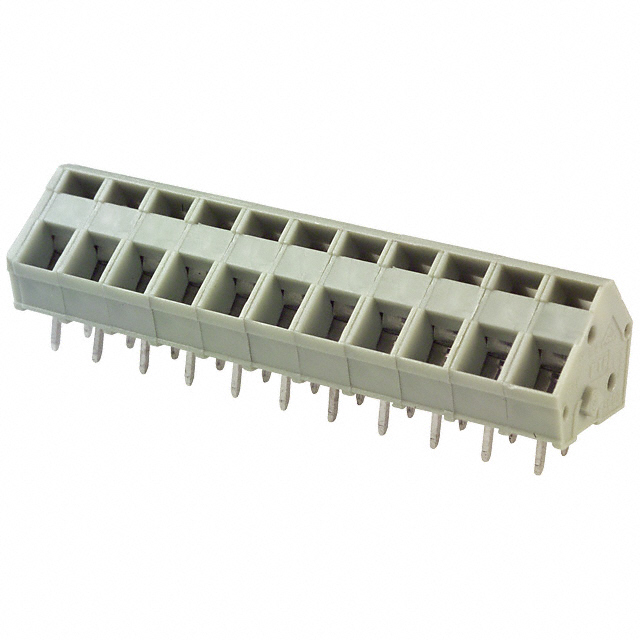

 On Shore Technology Inc. | Copper | -30 ░C | 105 ░C | Polyamide (PA) Nylon | 0.197 in | 5 mm | Interlocking (Side) | Gray Slate | 300 VDC | 28 AWG | 14 AWG | 135 ° | 45 ° | 16 A | Leg Spring Push-In Spring | 11 | 1 | Through Hole | |

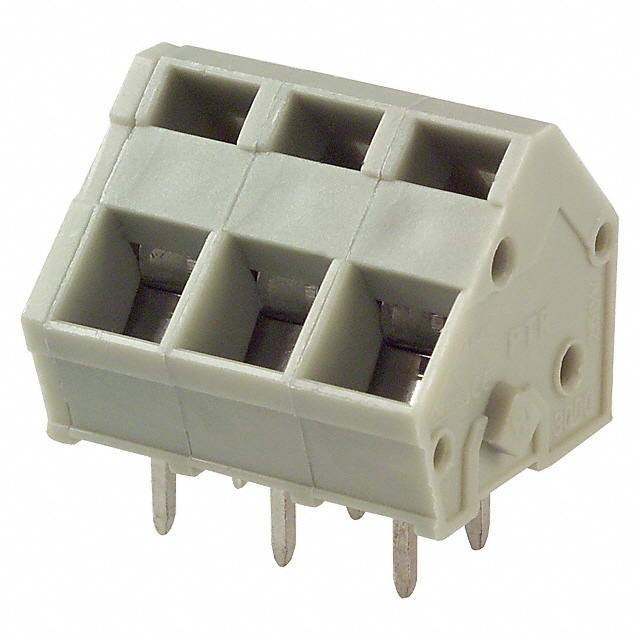

 On Shore Technology Inc. | Copper | -30 ░C | 105 ░C | Polyamide (PA) Nylon | 0.197 in | 5 mm | Interlocking (Side) | Gray Slate | 300 VDC | 28 AWG | 14 AWG | 135 ° | 45 ° | 16 A | Leg Spring Push-In Spring | 3 | 1 | Through Hole | |

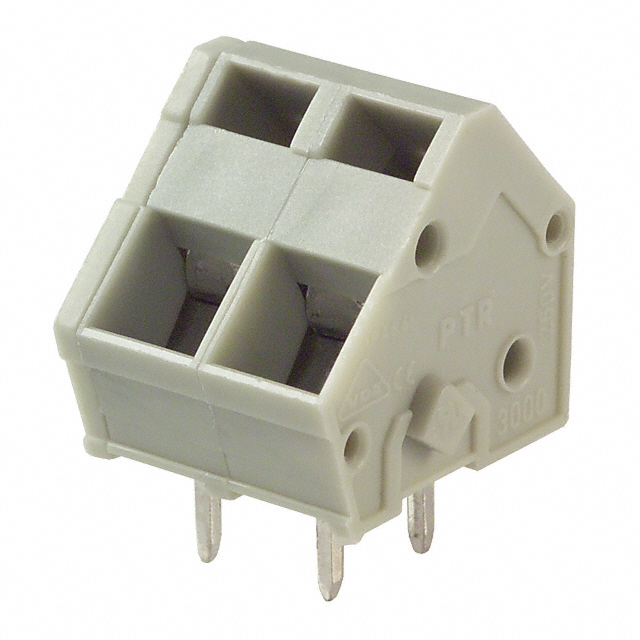

 On Shore Technology Inc. | Copper | -30 ░C | 105 ░C | Polyamide (PA) Nylon | 0.197 in | 5 mm | Interlocking (Side) | Gray Slate | 300 VDC | 28 AWG | 14 AWG | 135 ° | 45 ° | 16 A | Leg Spring Push-In Spring | 2 | 1 | Through Hole | |

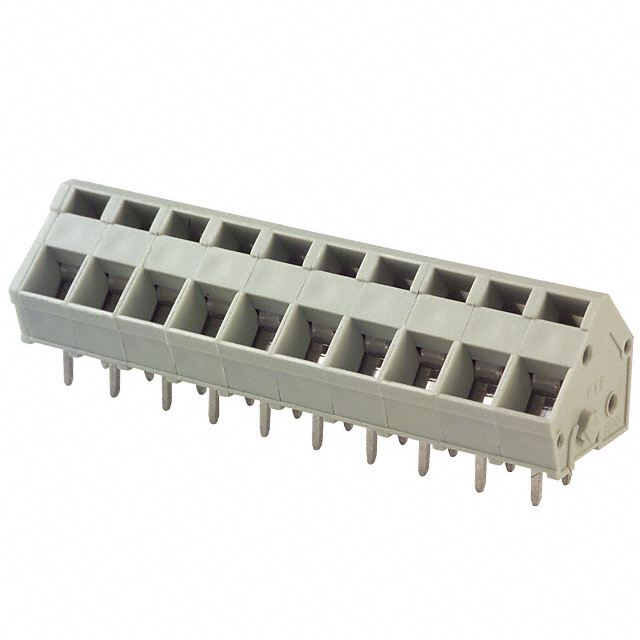

 On Shore Technology Inc. | Copper | -30 ░C | 105 ░C | Polyamide (PA) Nylon | 0.197 in | 5 mm | Interlocking (Side) | Gray Slate | 300 VDC | 28 AWG | 14 AWG | 135 ° | 45 ° | 16 A | Leg Spring Push-In Spring | 10 | 1 | Through Hole | |

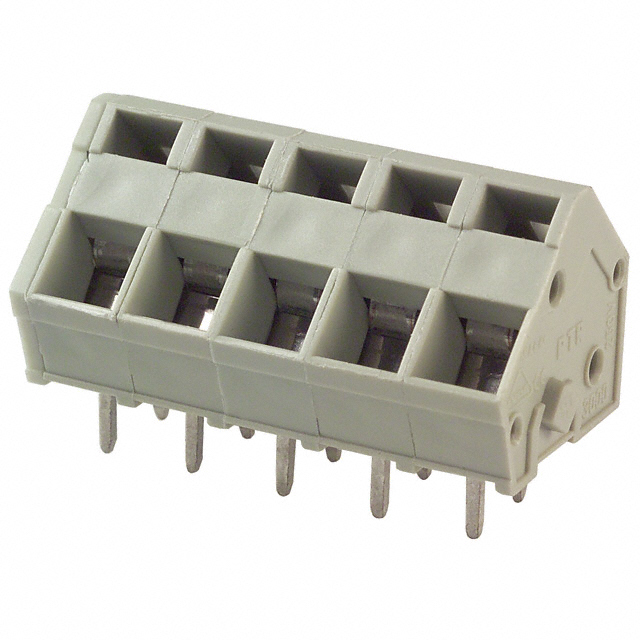

 On Shore Technology Inc. | Copper | -30 ░C | 105 ░C | Polyamide (PA) Nylon | 0.197 in | 5 mm | Interlocking (Side) | Gray Slate | 300 VDC | 28 AWG | 14 AWG | 135 ° | 45 ° | 16 A | Leg Spring Push-In Spring | 5 | 1 | Through Hole | |

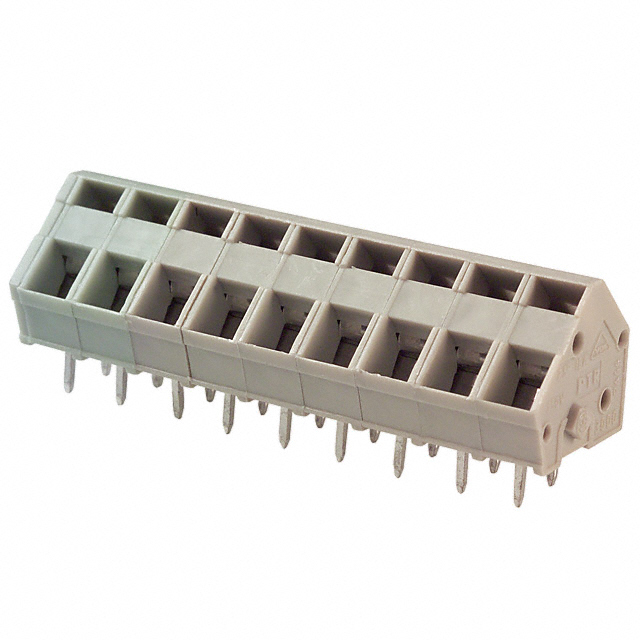

 On Shore Technology Inc. | Copper | -30 ░C | 105 ░C | Polyamide (PA) Nylon | 0.197 in | 5 mm | Interlocking (Side) | Gray Slate | 300 VDC | 28 AWG | 14 AWG | 135 ° | 45 ° | 16 A | Leg Spring Push-In Spring | 9 | 1 | Through Hole | |

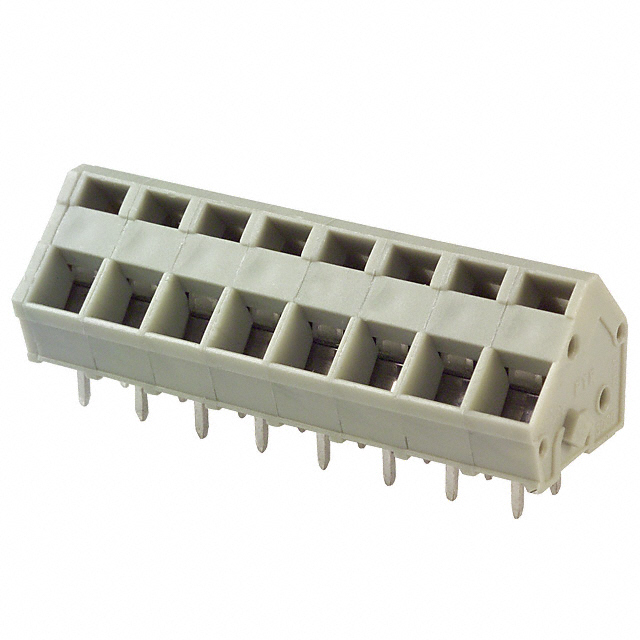

 On Shore Technology Inc. | Copper | -30 ░C | 105 ░C | Polyamide (PA) Nylon | 0.197 in | 5 mm | Interlocking (Side) | Gray Slate | 300 VDC | 28 AWG | 14 AWG | 135 ° | 45 ° | 16 A | Leg Spring Push-In Spring | 8 | 1 | Through Hole | |
 On Shore Technology Inc. | Copper | -30 ░C | 105 ░C | Polyamide (PA) Nylon | 0.197 in | 5 mm | Interlocking (Side) | Gray Slate | 300 VDC | 28 AWG | 14 AWG | 135 ° | 45 ° | 16 A | Leg Spring Push-In Spring | 1 | Through Hole | 7 |
