638 Series
Manufacturer: EDAC Inc.
Beta
⌘K
D-SUB HIGH DENSITY CONNECTORS VERTICAL HIGH DENSITY D-SUB CONNECTOR
| Part | Dielectric Material | Color | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material, Finish | Mounting Type | Number of Positions | Contact Type | Contact Finish | Current Rating (Amps) | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Flange Feature | Flange Feature | Material Flammability Rating | Termination | Features | Number of Rows [custom] | Connector Style | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout | Contact Finish Thickness | Shell Size, Connector Layout | Primary Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

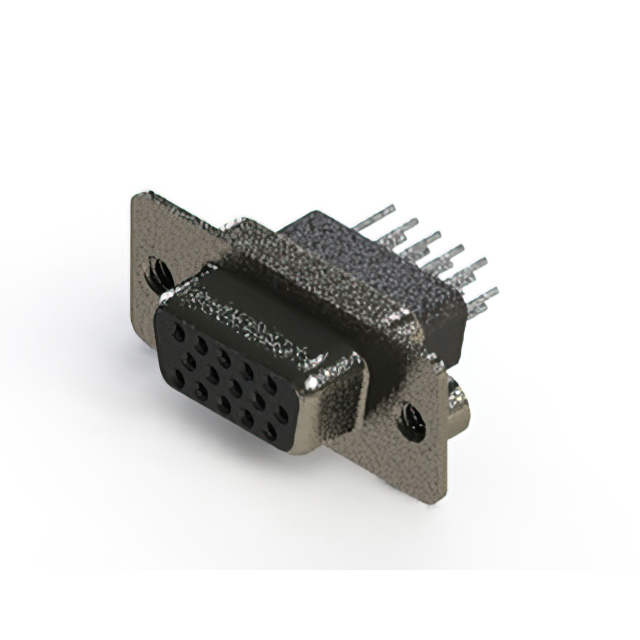

 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | -55 C | 125 °C | Nickel Plated Steel | Through Hole | 15 | Signal | Gold | 3 A | 0.38 µm | 15 µin | Receptacle Female Sockets | Housing/Shell | 4-40 | UL94 V-0 | Solder | Shielded | 3 | D-Sub High Density | (DE E) High Density | 1 | ||||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | -55 C | 125 °C | Through Hole | 15 | Signal | Gold | 3 A | 0.38 µm | 15 µin | Receptacle Female Sockets | Housing/Shell (Unthreaded) | UL94 V-0 | Solder | Shielded | 3 | D-Sub High Density | (DE E) High Density | 1 | ||||||
 EDAC Inc. | Nickel Plated Steel | Free Hanging (In-Line) | 44 | Signal | Gold | 3 A | Receptacle Female Sockets | 4-40 | UL94 V-0 | Shielded | 3 | D-Sub High Density | 3 | Flash | |||||||||||||
 EDAC Inc. | Free Hanging (In-Line) | 44 | Signal | Gold | 3 A | 0.38 µm | 15 µin | Receptacle Female Sockets | 4-40 Mating Side Female Screwlock | UL94 V-0 | Board Lock Shielded | 3 | D-Sub High Density | 3 | |||||||||||||
 EDAC Inc. | Polyester Thermoplastic | Black | Copper Alloy | -55 C | 85 °C | Nickel Plated Steel | Through Hole | 15 | Signal | Gold | 3 A | Receptacle Female Sockets | Housing/Shell | 4-40 | UL94 V-0 | Solder | Board Lock Shielded | 3 | D-Sub High Density | (DE E) High Density | 1 | Flash | |||||
 EDAC Inc. | Free Hanging (In-Line) | 62 | Signal | Gold | 3 A | Receptacle Female Sockets | Housing/Shell | 4-40 | UL94 V-0 | Shielded | 3 | D-Sub High Density | 4 | Flash | C DC | ||||||||||||
 EDAC Inc. | Nickel Plated Steel | Free Hanging (In-Line) | 78 | Signal | Gold | 3 A | Receptacle Female Sockets | Housing/Shell | 4-40 | UL94 V-0 | Shielded | D-Sub High Density | Flash | ||||||||||||||
 EDAC Inc. | Free Hanging (In-Line) | 44 | Signal | Receptacle for Female Contacts | 4-40 | Shielded | 3 | D-Sub High Density | 3 | Metal | |||||||||||||||||
 EDAC Inc. | Through Hole | 78 | Signal | Gold | 3 A | 0.38 µm | 15 µin | Receptacle Female Sockets | Housing/Shell (Unthreaded) | UL94 V-0 | Solder | Shielded | D-Sub High Density | ||||||||||||||
 EDAC Inc. | Nickel Plated Steel | Through Hole | 62 | Signal | Gold | 3 A | Receptacle Female Sockets | Housing/Shell | 4-40 | UL94 V-0 | Solder | Shielded | 3 | D-Sub High Density | 4 | Flash | C DC |
