60-11-4511 Series

Catalog

THERM PAD 40.46X27.94MM PINK

Part	Shelf Life	Thickness	Thickness	Type	Thermal Conductivity	Usage	Shape	Outline [y]	Outline [x]	Color	Backing, Carrier [custom]	Backing, Carrier [custom]	Thickness	Material

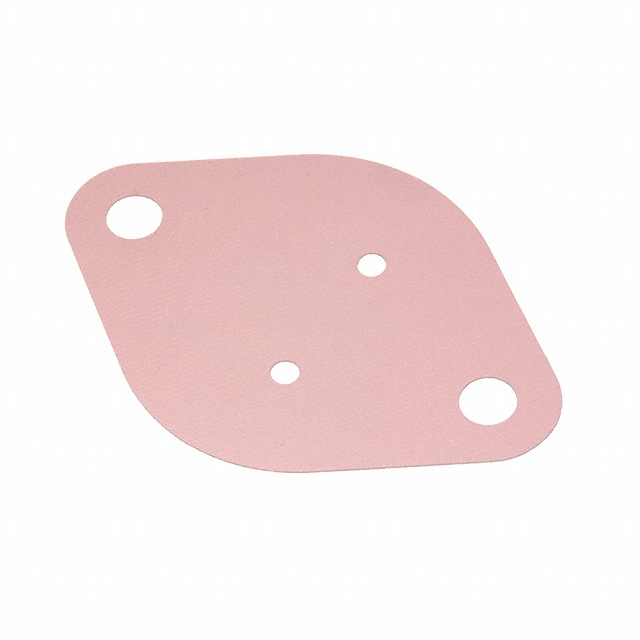

Parker Chomerics 60-11-4511-T441-08	Indefinite	0.203 mm	0.008 in	Insulator Pad Sheet	1.1 W/m-K	TO-3	Rhombus	27.94 mm	40.46 mm	Pink	Fiberglass	Fiberglass

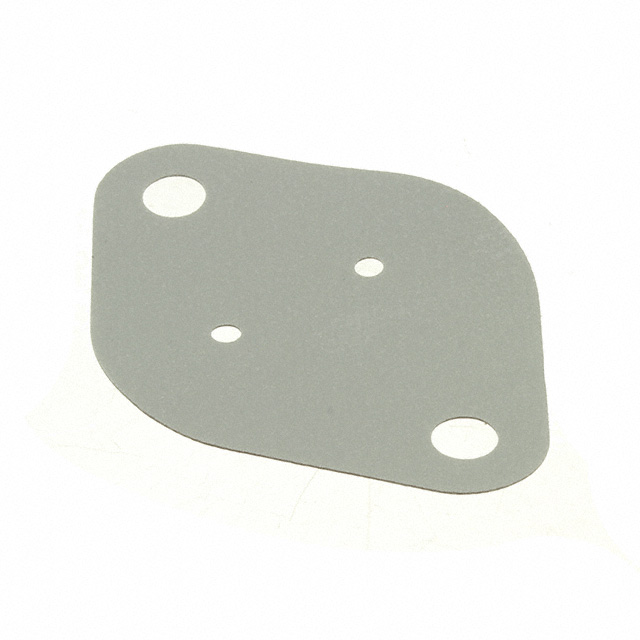

Parker Chomerics 60-11-4511-T500	Indefinite	10 mils		Insulator Pad Sheet	2.1 W/m-K	TO-3	Rhombus	27.94 mm	40.46 mm	Green	Fiberglass	Fiberglass	0.01 in	Acrylic
Parker Chomerics 60-11-4511-1671	Indefinite	0.381 mm	0.015 "	Insulator Pad Sheet	2.6 W/m-K	TO-3	Rhombus	27.94 mm	40.46 mm	White	Fiberglass	Fiberglass		Acrylic Silicone

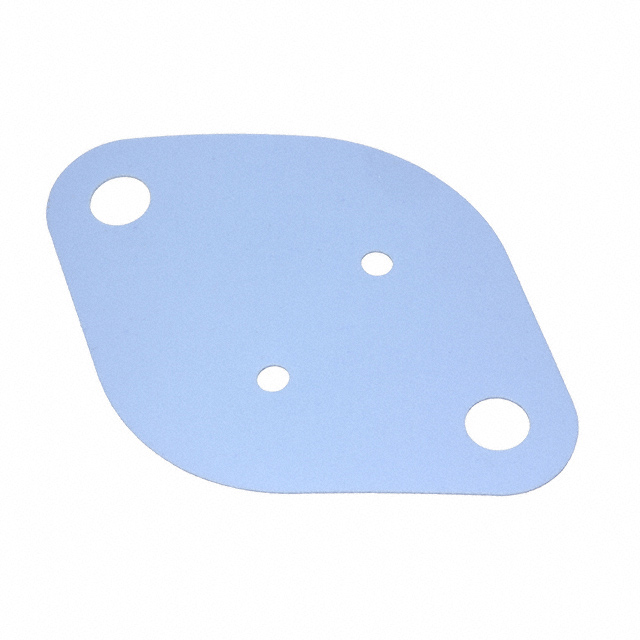

Parker Chomerics 60-11-4511-1674	Indefinite	10 mils		Insulator Pad Sheet		TO-3	Rhombus	27.94 mm	40.46 mm	Blue	Fiberglass	Fiberglass	0.01 in	Silicone
