M13405 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

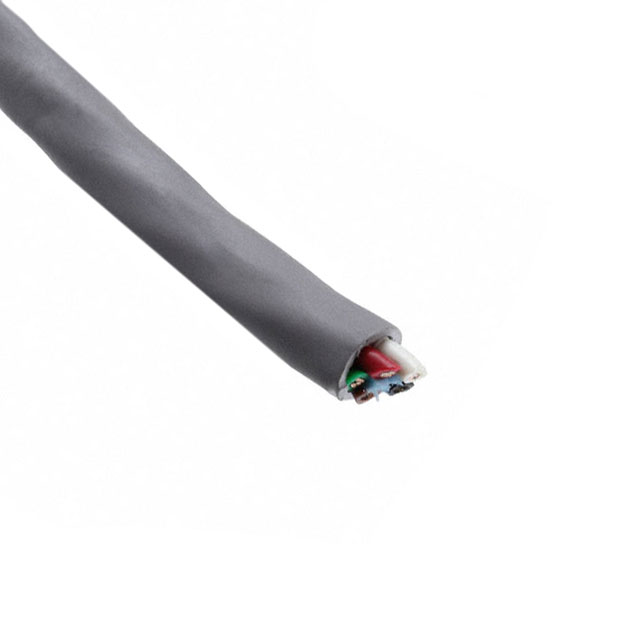

CABLE 5COND 20AWG SLATE
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Jacket (Insulation) Material | Length [x] | Length [x] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Voltage | Jacket Color | Conductor Material | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Insulation | Cable Type | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Ratings | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 80 °C | -20 ░C | 5 | Poly-Vinyl Chloride (PVC) | 100 ft | 30.5 m | 0.238 " | 6.05 mm | 300 VDC | Slate | Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 28 AWG | 7 | 20 AWG | UL Style 2464 | ||
ALPHA WIRE | 80 °C | -20 ░C | 5 | Poly-Vinyl Chloride (PVC) | 0.238 " | 6.05 mm | 300 VDC | Slate | Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 28 AWG | 7 | 20 AWG | UL Style 2464 | 304.8 m | 1000 ft | ||
ALPHA WIRE | 80 °C | -20 ░C | 5 | Poly-Vinyl Chloride (PVC) | 0.238 " | 6.05 mm | 300 VDC | Slate | Copper Tinned | 0.813 mm | 0.032 in | Poly-Vinyl Chloride (PVC) | Multi-Conductor | 28 AWG | 7 | 20 AWG | UL Style 2464 | 152.4 m | 500 ft |
