146894 Series

Catalog

CONN RCPT 84POS SMD GOLD

Part	Mated Stacking Heights	Contact Finish	Number of Rows	Features	Connector Type	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Height Above Board [z]	Height Above Board [z]	Number of Positions	Height Above Board	Height Above Board
TE Connectivity Raychem Cable Protection 146894-2	11 mm 12 mm	Gold	2	Board Guide	Receptacle Outer Shroud Contacts	Surface Mount	0.76 Ám	30 Áin	0.039 in	1 mm	0.287 in	7.3 mm	84

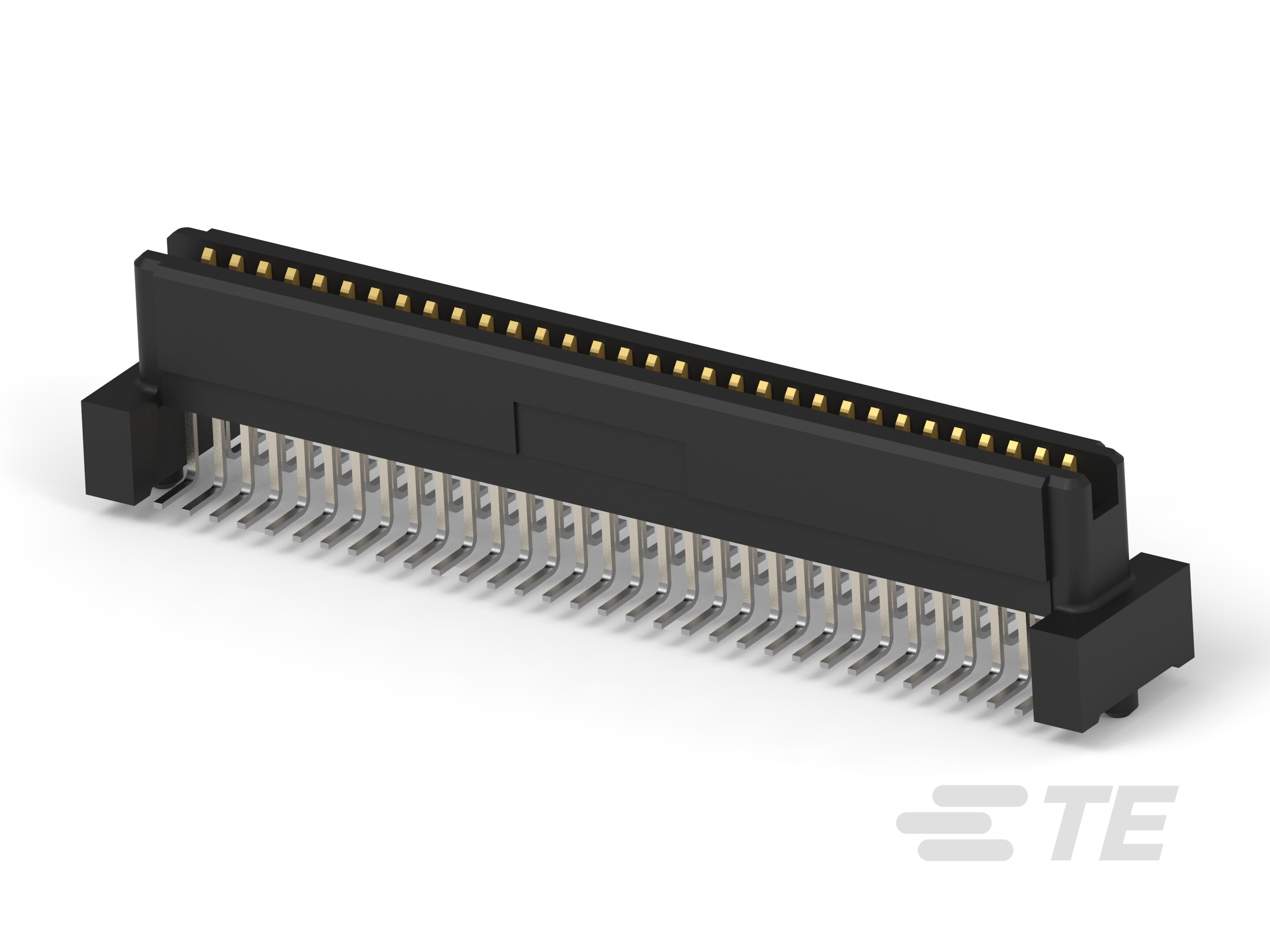

TE Connectivity Raychem Cable Protection 3-146894-1	11 mm 12 mm		2	Board Guide Pick and Place	Center Strip Contacts Receptacle	Surface Mount			0.039 in	1 mm			64	0.29 in	7.37 mm
